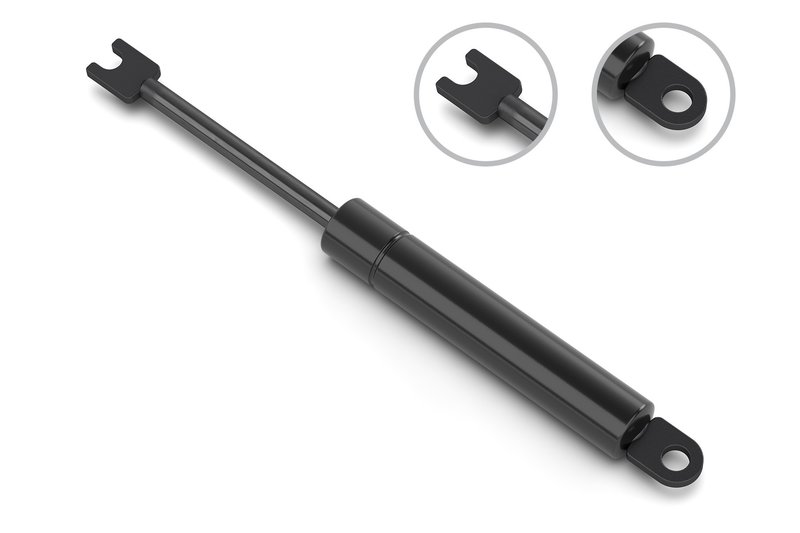

Stabilus 6B-101249 Seat Adjustment Strut

Overview of Stabilus Seat Adjustment Strut 6B-101249

The Stabilus seat adjustment strut 6B-101249 is engineered for precise seat positioning in select BMW models. Designed to provide reliable support and smooth adjustment, this strut is compatible with BMW 318i, 318is, 325e, 325i, 325is, 325iX, and M3 vehicles.

• Compressed length: 122 mm (4.803 inches)
• Extended length: 182 mm (7.165 inches)
• Rod diameter: 6 mm (0.236 inches)
• Tube diameter: 16.2 mm
• Force rating: 500 N (112 lbs)
• Rod connection type: Metal blade open
• Compatible with BMW 3 Series models including 318i, 318is, 325e, 325i, 325is, 325iX, and M3

Technical Details and Specifications

This seat adjustment strut from Stabilus features a compressed length of 122 mm and extends up to 182 mm, allowing for smooth and controlled seat movement. The rod diameter measures 6 mm, paired with a 16.2 mm tube diameter, ensuring structural integrity and durability under regular use. The strut exerts a force of 500 Newtons (112 pounds), providing consistent support during seat adjustments. The metal blade open rod connection enhances secure attachment and reliable operation within the seat mechanism.

Compatible BMW Models and Applications

The part number 6B-101249 is specifically designed for use in BMW 3 Series vehicles, including the 318i, 318is, 325e, 325i, 325is, 325iX, and M3 models. This seat adjustment strut is ideal for replacing worn or damaged components to restore proper seat positioning and comfort.

• Eliminates seat adjustment stiffness or binding
• Restores smooth seat movement and positioning
• Replaces broken or leaking struts
• Improves driver and passenger comfort
• Prevents seat slippage during vehicle operation

Installation Notes and Tips

Installation of the Stabilus 6B-101249 seat adjustment strut requires basic mechanical skills and appropriate tools. Ensure the vehicle is parked on a level surface and the seat is in a position that allows access to the strut mounting points. Remove the old strut carefully, noting the orientation and connection type. Attach the new strut using the metal blade open rod connection, verifying secure fitment. Test seat adjustment functionality after installation to confirm proper operation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and struts, known for consistent quality and durability. While specific warranty details for part number 6B-101249 are not provided, Stabilus products typically meet industry standards for performance and reliability. Using this OEM-compatible seat adjustment strut helps maintain the original seat adjustment functionality in your BMW 3 Series vehicle.
