OE Quality
60-Day Returns

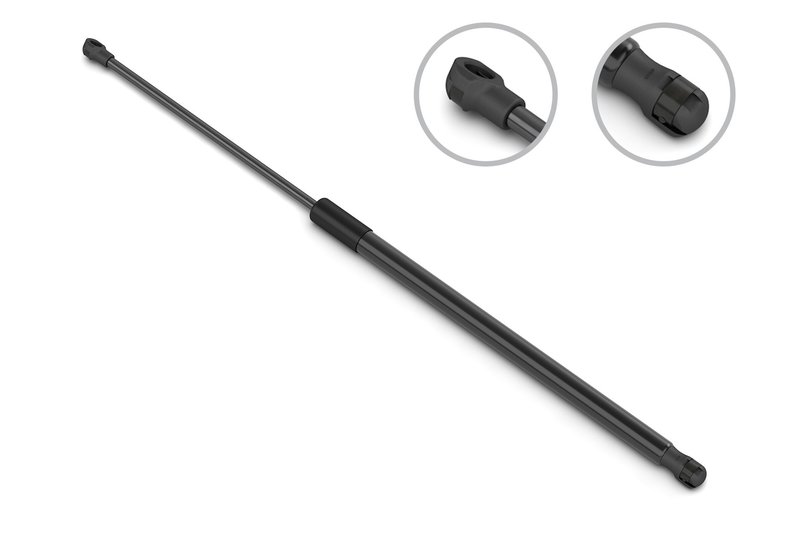

Stabilus 6B-140088 Deck Lid Lift Support
Stabilus 6B-140088 Gas Strut for Volkswagen Beetle
The Stabilus 6B-140088 is a gas strut built for precise lift support on the 2003 Volkswagen Beetle. With OE-style plastic socket connections and compact dimensions, it is specified for applications that need controlled opening and steady ????????? of a panel or hatch.
Key Features
- Brand: Stabilus
- Part number: 6B-140088
- Force rating: 250 N / 56 lb
- Compressed length: 155.5 mm (6.122 in)
- Extended length: 201.5 mm (7.933 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod and tube connections
- Rod end and tube end attachment diameter: 10 mm (0.394 in)
Detailed Description
Stabilus 6B-140088 is an OE-style gas spring with a 250 N force rating, designed around the dimensions and connection style needed for specific Volkswagen lift-support applications. The 8 mm rod, 18 mm tube, and plastic socket ends help match the original mounting geometry, while the 155.5 mm compressed length and 201.5 mm extended length define the travel needed for smooth panel movement. This part cross-references URO 1Y0827550F for the same application.
Compatible with 2003 Volkswagen Beetle, this Stabilus gas strut is a direct-fit replacement for the listed application and is identified by part number 6B-140088. It is also referenced under OE-style numbers including 1Y0 827 550 D and 1Y0 827 550 F.
Common Issues This Part Can Address
- Rear hatch, hood, or panel that no longer stays open
- Slow or uneven lift action when opening
- Weak support caused by loss of gas pressure
- Drooping panel that closes unexpectedly
- Original strut wear from age and repeated cycling
Installation Notes and Tips
Verify the compressed length, extended length, and socket-style end fittings before installation to confirm match-up with the original strut. Compare the 10 mm attachment diameter and mounting orientation to the removed part, and replace only with the correct application listed for the vehicle. For best results, support the panel securely before removing the old gas strut.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the specified fitment and dimensional requirements for the listed Volkswagen application.
| Brand | Stabilus |
|---|---|
| Part Number | 6B-140088 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 6.122 |
| Compressed Length | 155.5 |
| Extended Length | 7.933 |
| Extended Length | 201.5 |
| Force (N) | 250 |
| Force Lbs | 56 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Volkswagen | Beetle | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
