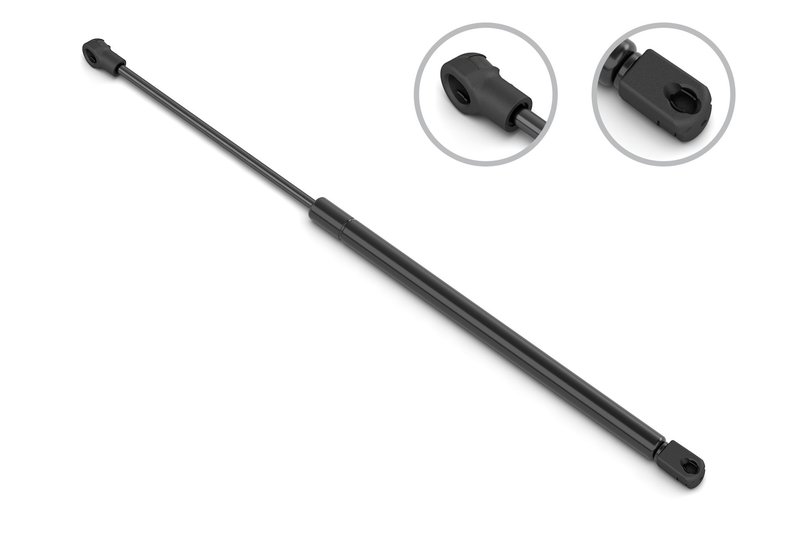

Stabilus 6B-511700 Hood Lift Support

Overview of Stabilus Hood Lift Support 6B-511700

The Stabilus Hood Lift Support part number 6B-511700 is designed specifically for Chrysler and Plymouth Prowler models. This hood lift support provides reliable assistance in lifting and holding the hood securely open, ensuring safe and convenient engine access.

• Compatible with Chrysler and Plymouth Prowler vehicles
• Compressed length: 172 mm (6.772 inches)
• Extended length: 225 mm (8.858 inches)
• Rod diameter: 6 mm (0.236 inches)
• Tube diameter: 15 mm
• Force rating: 250 N (56 lbs)
• Rod connection type: Plastic socket
• No hardware kit included

Technical Specifications and Features

This hood lift support features a compact compressed length of 172 mm and extends up to 225 mm, providing optimal range for hood operation on Chrysler and Plymouth Prowler models. The 6 mm rod diameter and 15 mm tube diameter ensure durability and consistent performance under normal operating conditions. With a force rating of 250 Newtons (56 pounds), this gas spring offers sufficient lift assistance for the hood without excessive force. The rod end attachment uses a plastic socket connection, designed for secure and smooth articulation during hood movement.

Application and Compatibility

The Stabilus 6B-511700 hood lift support is engineered for use on Chrysler and Plymouth Prowler vehicles. It is not intended for agricultural, heavy truck, marine, or industrial off-highway applications. This part is engine non-specific but tailored to the body requirements of the Prowler hood assembly. It is a direct replacement part that maintains factory specifications for length, force, and connection type.

• Supports hood lifting and holding functions
• Replaces worn or failing hood lift supports
• Prevents hood slamming or accidental closure
• Improves safety during engine bay maintenance
• Restores original hood operation feel and control

Installation Notes and Tips

Installation of the Stabilus 6B-511700 hood lift support requires removal of the old gas spring and attachment of the new unit using the existing mounting points. The plastic socket rod connection should snap securely into place without excessive force. No additional hardware kit is included, so retain original mounting clips and fasteners. It is recommended to support the hood safely during replacement to avoid injury or damage. Verify full range of motion and secure attachment after installation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs and lift supports, known for consistent quality and durability. This hood lift support meets OEM specifications for fit and function on Chrysler and Plymouth Prowler models. While no specific warranty details are provided here, Stabilus products typically come with manufacturer-backed quality assurance. Users should consult product documentation or Stabilus directly for warranty terms.
