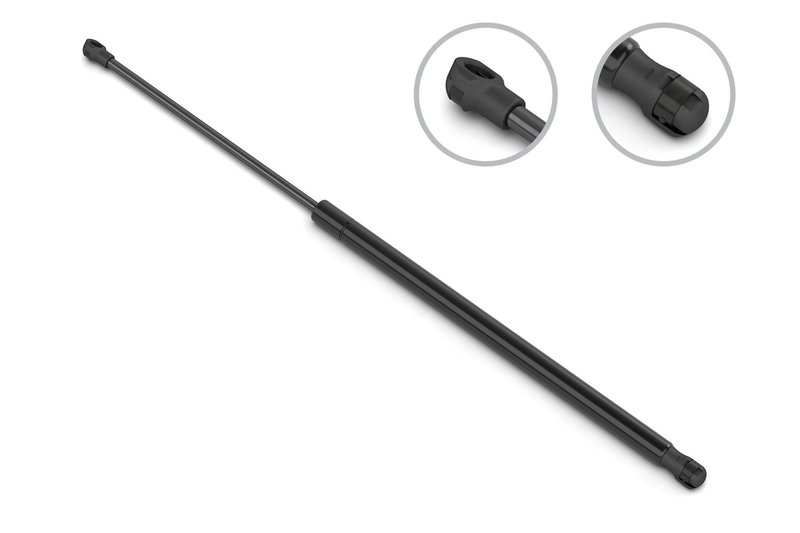

Stabilus 6B-896528 Deck Lid Lift Support

Stabilus 6B-896528 Gas Strut Overview

The Stabilus 6B-896528 gas strut is built for controlled lift and support on select Volkswagen Beetle applications. With a 510 N (115 lb) force rating, 195.5 mm extended length, and 149 mm compressed length, it provides measured movement for panels that need smooth opening and steady hold.

Fits 2004-2008 Volkswagen Beetle, N/A. This Stabilus 6B-896528 replacement strut uses plastic socket connections at both ends and matches the listed OE-style dimensions for direct application matching.

Key Features

• Brand: Stabilus
• Part number: 6B-896528
• Force rating: 510 N / 115 lb
• Extended length: 195.5 mm (7.697 in)
• Compressed length: 149 mm (5.866 in)
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 19 mm (0.748 in)
• Rod and tube connections: plastic socket
• Rod end attachment diameter: 10 mm (0.394 in)
• Tube end attachment diameter: 10 mm (0.394 in)

Detailed Description

Stabilus 6B-896528 is an OE-style gas spring specified for 2004-2008 Volkswagen Beetle applications. The measured stroke geometry and 510 N force rating support consistent opening and closing action for the panel or hatch application listed in the fitment data. If you are searching for a Volkswagen Beetle lift support, hatch strut, or gas spring replacement, this part number provides the dimensional and connection details needed for accurate matching.

This part cross-references Monroe Shocks & Struts 901529 for the same application. It also appears under Stabilus 6B-896528 in interchange listings, which helps confirm the replacement reference when comparing Volkswagen Beetle lift support part numbers.

What It Helps Address

• Weak or failing lift support that no longer holds the panel open
• Slow, uneven, or abrupt panel movement
• Loss of support on a Volkswagen Beetle hatch or access panel
• Replacement needs for a worn gas strut with matching dimensions
• Noise or instability caused by a fatigued support unit

Installation Notes and Tips

Verify the compressed length, extended length, force rating, and socket-style end connections before ordering. Compare the rod diameter, tube diameter, and attachment diameter to the original support on the vehicle. For best results, replace the support with the panel fully secured and confirm smooth operation after installation.

Quality Assurance

Stabilus is a recognized gas spring manufacturer with OE-level application data used across the aftermarket. The 6B-896528 is listed with exact dimensional specifications and vehicle fitment for 2004-2008 Volkswagen Beetle applications, supporting accurate part selection.
