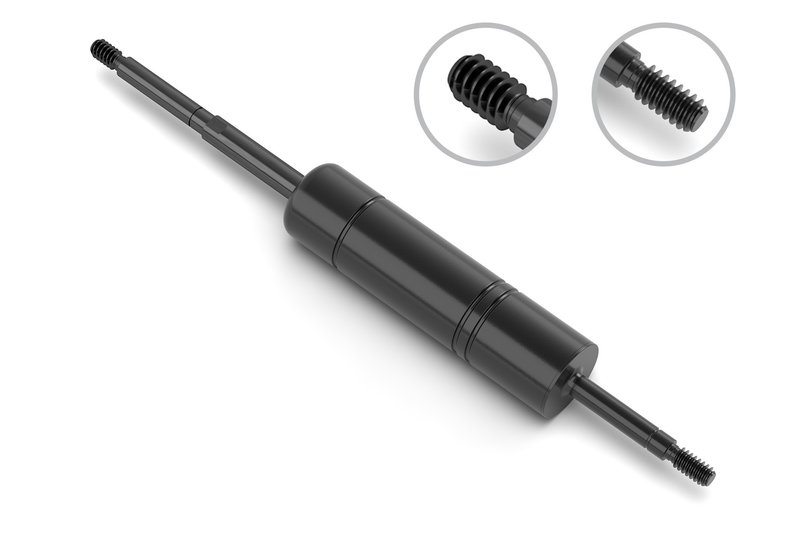

Stabilus 6G-0954DK Engine Torque Strut

Stabilus 6G-0954DK Engine Torque Strut

The Stabilus 6G-0954DK engine torque strut is a direct-fit engine support component for select Mercedes-Benz W126 applications. It is built with an M6 thread connection at the rod, shaft, and tube ends, with a compressed length of 130 mm (5.118 in) and an extended length of 160 mm (6.299 in).

Compatible With 1988-1991 Mercedes-Benz 300SEL, 1989-1991 Mercedes-Benz 300SE, 1991 Mercedes-Benz 350SD, and 1991 Mercedes-Benz 350SDL, this part number 6G-0954DK is specified for vehicles that need a compact torque strut with 8 mm rod diameter and 24 mm tube diameter dimensions.

Key Features

• Brand: Stabilus
• Part number: 6G-0954DK
• Engine torque strut for engine block component applications
• Compressed length: 130 mm / 5.118 in
• Extended length: 160 mm / 6.299 in
• Rod diameter: 8 mm / 0.315 in
• Tube diameter: 24 mm / 0.945 in
• Rod, shaft, and tube connections: M6 thread
• Rod end attachment diameter: 6 mm / 0.236 in
• Tube end attachment diameter: 6 mm / 0.236 in

Detailed Description

The Stabilus 6G-0954DK is an engine torque strut engineered around the listed dimensional and connection specifications for Mercedes-Benz 300SE, 300SEL, 350SD, and 350SDL W126 models. The compact body size, M6 threaded connections, and matched attachment diameters make it a precise replacement choice when the original engine support geometry must be maintained. This part number 6G-0954DK cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.

What It Helps Address

• Excess engine movement under load
• Worn or damaged torque strut mounting points
• Noise or vibration related to engine support wear
• Incorrect fitment caused by mismatched length or thread size
• Restoration work on Mercedes-Benz W126 engine support systems

Installation Notes and Tips

Verify compressed length, extended length, rod diameter, tube diameter, and M6 thread connections before installation. Compare the original part to the Stabilus 6G-0954DK to confirm the attachment style and overall dimensions match the vehicle’s engine support layout. Use the vehicle’s service information for torque specifications and mounting procedure.

Quality Assurance

Stabilus is a recognized OE supplier in motion-control and support components, and this torque strut follows the listed dimensional specifications for accurate replacement selection. Confirm fitment against the vehicle application before installation.
