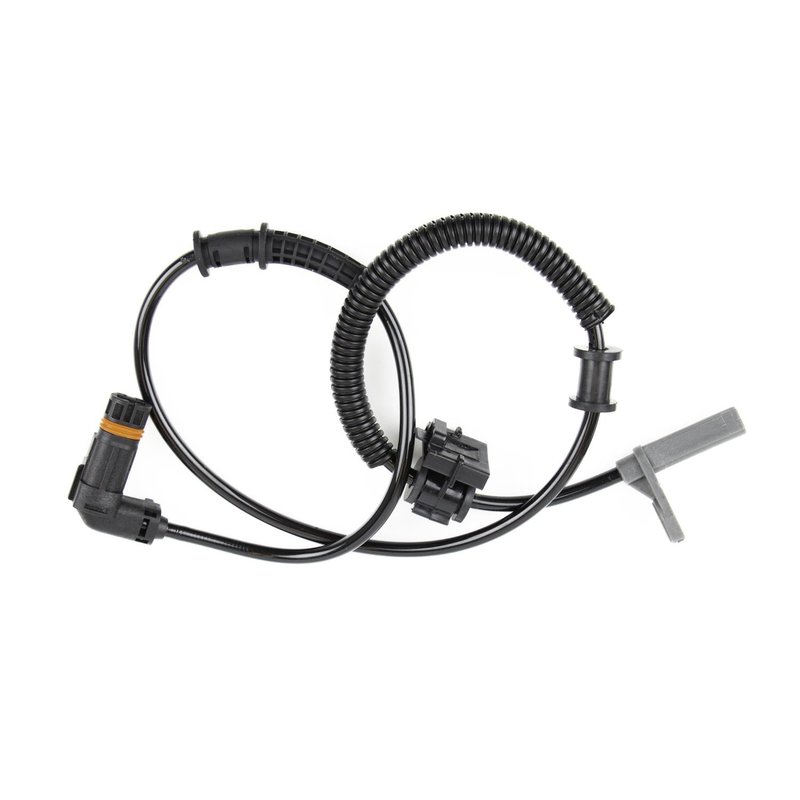

Standard ALS1936T ABS Wheel Speed Sensor - Rear Right

ABS Wheel Speed Sensor for Rear Right Applications

The Standard ALS1936T ABS wheel speed sensor is built for rear right fitments on select Chrysler and Dodge vehicles. It uses a 2-terminal male blade connection, a single oval connector, and a 27.5-inch harness for a direct-style replacement at the spindle mounting location.

Compatible With 2005-2010 Chrysler 300, rear right; 2008-2010 Dodge Challenger, rear right; 2006-2010 Dodge Charger, rear right; and 2005-2008 Dodge Magnum, rear right. The ALS1936T is a practical choice when diagnosing wheel speed signal issues on Chrysler 300, Dodge Charger, or Dodge Magnum brake systems.

Key Features

• ABS wheel speed sensor for rear right placement
• Spindle-mounted design with bolt-mount installation
• 1 oval connector with male connector and terminal ends
• 2-terminal blade-style electrical interface
• 27.5-inch (760 mm) harness length
• No mounting hardware included
• No dust shield included

Detailed Description

Standard ALS1936T is an ABS wheel speed sensor engineered for vehicles that rely on accurate wheel speed input for anti-lock brake operation and traction-related control functions. Its rear right spindle mounting location, single-bolt mounting design, and oval connector layout support a direct replacement approach for the listed Chrysler and Dodge applications. This part cross-references Standard Ignition ALS1936 for the same application.

Use ALS1936T when servicing a Chrysler 300, Dodge Challenger, Dodge Charger, or Dodge Magnum with a rear right sensor location. The part number ALS1936T is also referenced by several interchange numbers, making it easier to match the correct sensor during brake system repair.

What It Helps Address

• ABS warning light caused by a failed rear wheel speed sensor
• Intermittent wheel speed signal loss at the rear right corner
• Traction control or stability system faults tied to wheel speed input
• Brake system scan codes related to sensor circuit performance
• Harsh or inconsistent ABS operation during braking events

Installation Notes and Tips

Install at the spindle-mounted rear right position and verify the connector style, terminal count, and harness routing before final assembly. Because mounting hardware is not included, reuse or source the required fastener as needed. Confirm the sensor seating surface is clean and inspect the tone ring or wheel speed target area during diagnosis to avoid repeat faults.

Quality Assurance

Standard is a recognized aftermarket brand for ignition and sensor components, and ALS1936T is built to match the listed application details for proper fitment on select Chrysler and Dodge models. Verify year, model, and rear right position before ordering.
