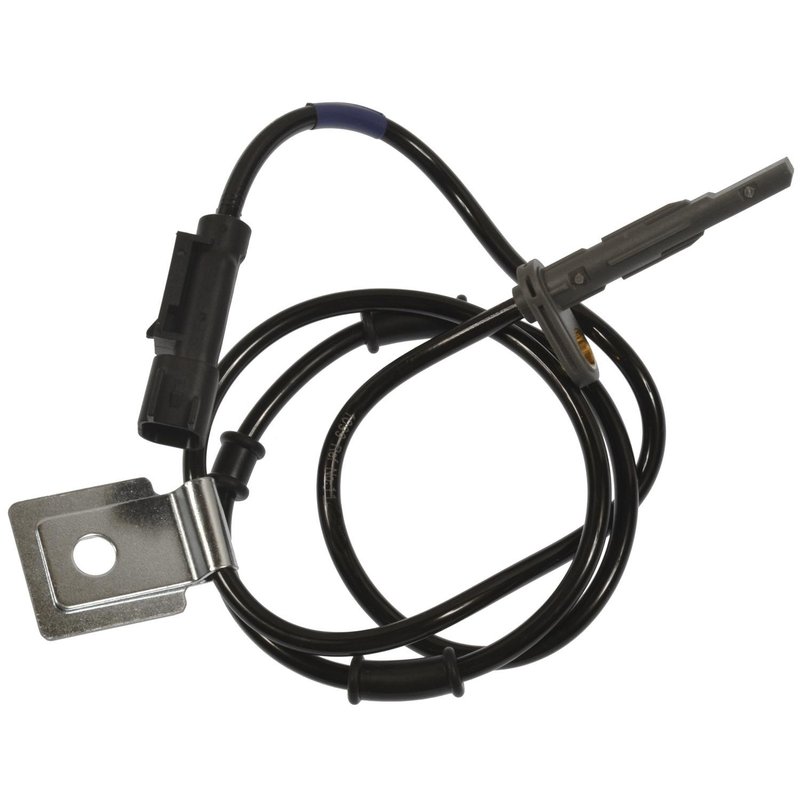

Standard ALS1994T ABS Wheel Speed Sensor - Front Right
| Brand | Standard ALS1994T |
|---|---|
| Position | Front Right |
| Mounting Hardware Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Dust Shield Included | No |
| Harness Length - inches | 32.5 |
| Harness Length - mm | 940 |
| Mounting Location | Spindle |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 2 |
| Terminal Type | Blade |
| Fits | Chevrolet and GMC · 16 vehicles |
Bolt-mount design. Installs securely with a two-hole mounting pattern.
Rectangular connector. Uses a female connector with male blade terminals.
32.5-inch harness. Provides generous lead length for routing and connection.
Cross-references Standard Ignition ALS1994, 532454 and 532454SB for the same application. See all 7.
ABS Wheel Speed Sensor for Equinox and Terrain
Standard ALS1994T is a front right ABS wheel speed sensor for select Chevrolet Equinox and GMC Terrain models. It provides the wheel speed signal used by the anti-lock brake system to monitor wheel rotation and support stable braking performance.
Key Features
- ABS wheel speed sensor for the front right position
- Fits 2010-2017 Chevrolet Equinox, front right
- Fits 2010-2017 GMC Terrain, front right
- 32.5-inch harness length for routing to the factory connection point
- 2-terminal blade design with 1 rectangular female connector
- Bolt-mount installation at the spindle with 2 bolt holes
- Standard ALS1994T cross-references Standard Ignition ALS1994
Detailed Description
Standard ALS1994T is built as a direct-fit ABS wheel speed sensor for the front right spindle location on 2010-2017 Chevrolet Equinox and 2010-2017 GMC Terrain applications. The sensor uses a rectangular female connector, male blade terminals, and a 940 mm (32.5 in.) harness to match the vehicle routing and electrical connection requirements. Standard ALS1994T is a practical replacement choice when the original sensor signal becomes inconsistent or the ABS warning system records a wheel speed fault.
This part cross-references 532454 and ABS2087 for the same application.
What It Helps Address
- ABS warning light triggered by a faulty front right wheel speed sensor
- Intermittent or missing wheel speed signal at the spindle
- Brake system fault codes related to wheel speed input
- Erratic ABS operation caused by sensor signal loss
- Replacement needs after sensor wiring or connector damage
Installation Notes and Tips
- Mounts at the spindle using a bolt-mount design with 2 bolt holes
- Verify the connector style, terminal count, and harness routing before installation
- Inspect the tone ring, hub area, and wiring path for debris or damage during service
- Confirm the front right position on the vehicle before replacing the sensor
Quality Assurance
Standard Ignition supplies ALS1994T as an OE-style replacement sensor for the listed Chevrolet Equinox and GMC Terrain applications. The part number ALS1994T is also referenced as Standard Ignition ALS1994 for catalog matching and service lookup.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Chevrolet | Equinox | Front Right | — |
| 2017 | GMC | Terrain | Front Right | — |
| 2016 | Chevrolet | Equinox | Front Right | — |
| 2016 | GMC | Terrain | Front Right | — |
| 2015 | Chevrolet | Equinox | Front Right | — |
| 2015 | GMC | Terrain | Front Right | — |
| 2014 | Chevrolet | Equinox | Front Right | — |
| 2014 | GMC | Terrain | Front Right | — |
| 2013 | Chevrolet | Equinox | Front Right | — |
| 2013 | GMC | Terrain | Front Right | — |
| 2012 | Chevrolet | Equinox | Front Right | — |
| 2012 | GMC | Terrain | Front Right | — |
| 2011 | Chevrolet | Equinox | Front Right | — |
| 2011 | GMC | Terrain | Front Right | — |
| 2010 | Chevrolet | Equinox | Front Right | — |
| 2010 | GMC | Terrain | Front Right | — |
