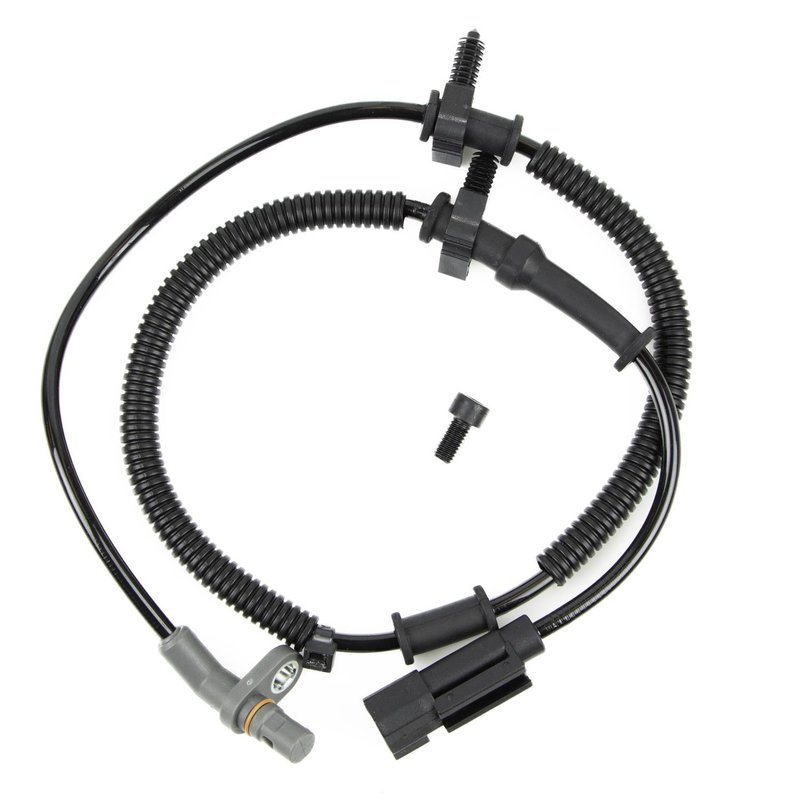

Standard ALS2587T ABS Wheel Speed Sensor - Front
| Brand | Standard ALS2587T |
|---|---|
| Position | Front |
| Mounting Hardware Included | Yes |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Dust Shield Included | No |
| Harness Length - inches | 33 |
| Harness Length - mm | 830 |
| Mounting Location | Wheel |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 1 |
| Terminal Type | Blade |
| Wiring Harness Included | Yes |
| Fits | Ram · 10 vehicles |
Bolt mount design. Installs securely with included mounting hardware and wiring harness.
Wheel speed sensor. Monitors ABS wheel speed for reliable braking system feedback.
Rectangular connector. Female connector with blade terminals for a clean electrical connection.
Cross-references Standard Ignition ALS2587, 532957 and 532957SB for the same application. See all 7.
ABS Wheel Speed Sensor for Ram Front Applications
The Standard ALS2587T ABS wheel speed sensor is a front wheel sensor built for Ram 1500 and Ram 1500 Classic applications. It uses a 2-terminal blade connection, a rectangular female connector, and an integrated wiring harness to support a direct replacement-style repair at the wheel.
- ABS wheel speed sensor for front wheel mounting
- Fits 2013-2018 Ram 1500, front
- Fits 2019-2022 Ram 1500 Classic, front
- Standard ALS2587T part number for catalog matching
- Mounts with bolt-style hardware at the wheel location
- 33-inch harness length for routing to the factory connection point
- Female rectangular connector with 2 terminals
- Mounting hardware included
Detailed Product Information
Standard ALS2587T is an ABS wheel speed sensor designed for front axle use on Ram 1500 and Ram 1500 Classic trucks. The sensor mounts at the wheel with a bolt-mount design and includes a wiring harness for connection to the vehicle’s ABS circuit. With a 33-inch harness, rectangular connector shape, and blade-style terminals, this sensor is built to match the electrical and mounting requirements of the original application. If you are replacing a failed Ram ABS wheel speed sensor, ALS2587T provides a direct-fit service part reference for front-position repairs.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- ABS warning light triggered by a faulty front wheel speed sensor
- Loss of wheel speed signal to the ABS control system
- Erratic traction control or stability control operation
- Intermittent braking system fault codes related to the front sensor circuit
- Damage to the original sensor harness or connector at the wheel
Installation Notes and Tips
Verify the front position and connector style before installation on Ram 1500 and Ram 1500 Classic models. Inspect the wheel-end mounting point, harness routing, and connector terminals for corrosion or damage before connecting the new sensor. Confirm the bolt-mount location is clean and secure so the sensor seats properly and maintains a stable signal path.
Quality Assurance
Standard is a recognized aftermarket brand for electrical and sensor components, and ALS2587T is cataloged as an OE-style replacement part for the listed Ram front-wheel applications. Confirm fitment by year, model, and position before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Ram | 1500 Classic | 3.6L | V6 | Front | — |
| 2021 | Ram | 1500 Classic | 3.6L | V6 | Front | — |
| 2020 | Ram | 1500 Classic | — | — | Front | — |
| 2019 | Ram | 1500 Classic | — | — | Front | — |
| 2018 | Ram | 1500 | — | — | Front | — |
| 2017 | Ram | 1500 | — | — | Front | — |
| 2016 | Ram | 1500 | — | — | Front | — |
| 2015 | Ram | 1500 | — | — | Front | — |
| 2014 | Ram | 1500 | — | — | Front | — |
| 2013 | Ram | 1500 | — | — | Front | — |
