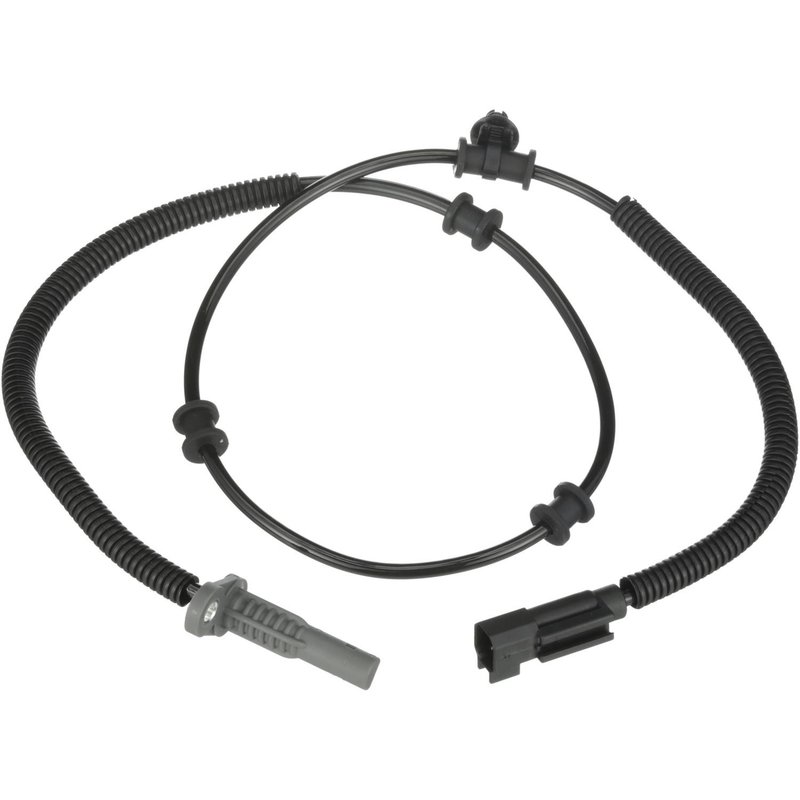

Standard ALS2588T ABS Wheel Speed Sensor - Rear
| Brand | Standard ALS2588T |
|---|---|
| Position | Rear |
| Mounting Hardware Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Octagon |
| Dust Shield Included | No |
| Harness Length - inches | 42.5 |
| Harness Length - mm | 1070 |
| Mounting Location | Wheel |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 1 |
| Terminal Type | Blade |
| Wiring Harness Included | Yes |
| Fits | Ram · 12 vehicles |
Bolt-mount design. Installs securely with a single bolt hole.
Wiring harness included. Ready for a cleaner, simpler installation.
Wheel speed sensor. Monitors wheel rotation for ABS operation.
Cross-references Standard Ignition ALS2588, 532958 and 532958SB for the same application. See all 7.
Rear ABS Wheel Speed Sensor for Ram 1500
The Standard ALS2588T is a rear ABS wheel speed sensor built for direct replacement on select Ram trucks. It uses a 2-terminal blade connection, a female connector, and a 42.5-inch harness to match the original routing at the wheel.
Compatible with 2013-2018 Ram 1500, rear, and 2019-2024 Ram 1500 Classic, rear, this sensor is a practical choice when diagnosing ABS warning lights or wheel speed signal faults. The Standard ALS2588T is built for bolt-mount installation at the wheel position.
Key Features
- Part number: ALS2588T
- Rear wheel mounting location
- Bolt-mount design with 1 bolt hole
- Female connector with octagon shape
- 2 terminals with male blade terminals
- 42.5-inch (1070 mm) harness length
- Wiring harness included
- No mounting hardware included
- No dust shield included
Detailed Description
Standard ALS2588T is an ABS wheel speed sensor for the rear wheel position on Ram 1500 and Ram 1500 Classic applications. It is designed with a single connector, blade-style terminals, and a long harness to support factory-style routing from the wheel area to the vehicle harness. This part cross-references 532958 and 68053861AB for the same application.
Common Repair Uses
- ABS warning light caused by a failed rear wheel speed sensor
- Intermittent or missing wheel speed signal at the rear axle
- Brake system fault codes related to wheel speed input
- Cracked, corroded, or damaged sensor wiring at the wheel
- Restoring proper ABS monitoring on Ram 1500 and Ram 1500 Classic trucks
Installation Notes and Tips
Verify connector shape, terminal count, and harness length before installation. Inspect the wheel-end mounting point and wiring path for corrosion, abrasion, or broken retainers, and confirm the sensor seats correctly at the bolt-mount location. Use the vehicle’s service information for proper routing and final ABS system checks after replacement.
Quality Assurance
Standard ignition components are built to meet application-specific replacement needs for brake and sensor systems. Confirm fitment by year, model, and rear position before ordering the ALS2588T.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Ram | 1500 Classic | 3.6L | V6 | Rear | — |
| 2023 | Ram | 1500 Classic | 3.6L | V6 | Rear | — |
| 2022 | Ram | 1500 Classic | 3.6L | V6 | Rear | — |
| 2021 | Ram | 1500 Classic | 3.6L | V6 | Rear | — |
| 2020 | Ram | 1500 Classic | — | — | Rear | — |
| 2019 | Ram | 1500 Classic | — | — | Rear | — |
| 2018 | Ram | 1500 | — | — | Rear | — |
| 2017 | Ram | 1500 | — | — | Rear | — |
| 2016 | Ram | 1500 | — | — | Rear | — |
| 2015 | Ram | 1500 | — | — | Rear | — |
| 2014 | Ram | 1500 | — | — | Rear | — |
| 2013 | Ram | 1500 | — | — | Rear | — |
