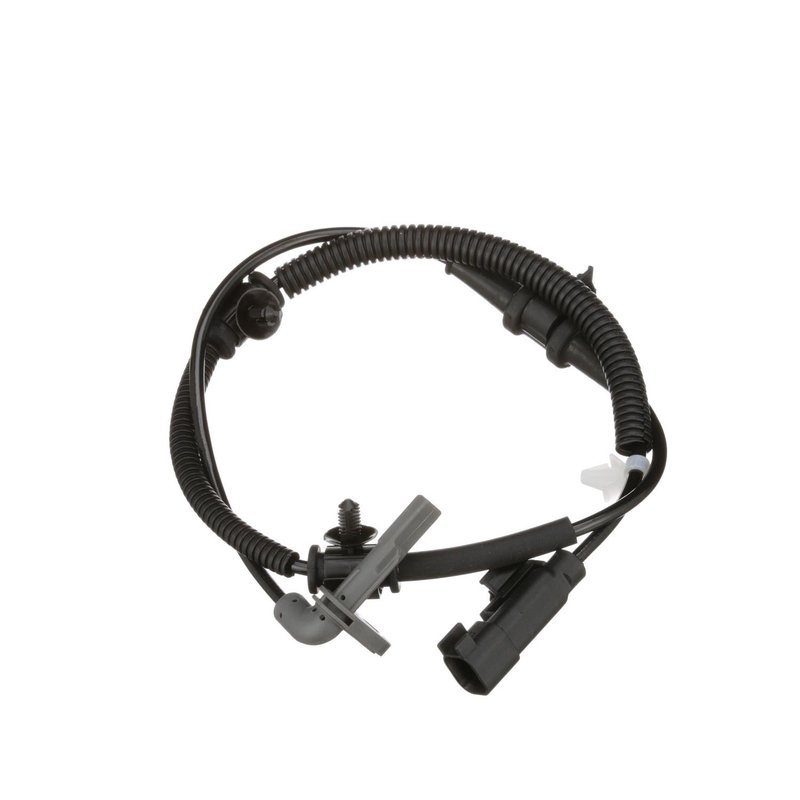

Standard ALS2636T ABS Wheel Speed Sensor - Front
| Brand | Standard ALS2636T |
|---|---|
| Position | Front |
| Mounting Hardware Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Dust Shield Included | No |
| Harness Length - inches | 32.75" |
| Harness Length - mm | 830 |
| Mounting Location | Wheel |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 1 |
| Terminal Type | Blade |
| Fits | Chevrolet · 11 vehicles |
Bolt mount design. Installs securely with a single bolt hole.
Wheel-mounted sensor. Monitors wheel speed for ABS system operation.
Square connector. Uses a female connector with blade terminals.
Cross-references Standard Ignition ALS2636, 533006 and 533006SB for the same application. See all 7.
ABS Wheel Speed Sensor for Front Applications
Standard ALS2636T is an ABS wheel speed sensor for front wheel mounting on select Chevrolet applications. It provides the signal the ABS system uses to monitor wheel speed, helping the vehicle’s braking control system respond accurately during stops and traction events.
This Standard ALS2636T ABS wheel speed sensor is built with a 32.75-inch harness, a square female connector, and a bolt-mount design with one bolt hole. It is a direct-fit style replacement for front-wheel service on Chevrolet Impala, Malibu, and Malibu Limited models listed below.
Key Features
- ABS wheel speed sensor for front wheel location
- 32.75-inch harness length for routing to the factory connection point
- Square connector with 1 female connector and 2 terminals
- Male blade terminals for vehicle-side electrical connection
- Bolt-mount design with one bolt hole
- Mounting hardware not included
- Dust shield not included
Detailed Description
Standard ALS2636T is an ABS wheel speed sensor engineered for front-wheel placement on 2013-2015 Chevrolet Malibu, 2014-2020 Chevrolet Impala, and 2016 Chevrolet Malibu Limited. It monitors wheel rotation and sends the ABS control system the speed data needed for stable braking performance. The harness length, connector style, and bolt-mount configuration support OE-style replacement on the listed vehicles.
This part cross-references Standard Ignition ALS2636 for the same application. It also cross-references 533006 and 22831244 for select front ABS wheel speed sensor applications. When searching for a front ABS wheel speed sensor for Chevrolet Impala or Malibu, ALS2636T is the part number to reference.
What It Helps Address
- ABS warning light caused by a failed front wheel speed sensor
- Loss of wheel speed signal to the ABS module
- Erratic ABS operation during braking
- Traction control or stability system faults tied to wheel speed input
- Intermittent sensor connection at the front wheel
Installation Notes and Tips
Verify the connector shape, terminal count, harness length, and bolt-mount location before installation. Inspect the wheel hub area, wiring path, and connector terminals for corrosion, damage, or debris that could affect the signal. Confirm front-position fitment for your Chevrolet Impala, Malibu, or Malibu Limited before replacing the sensor.
Quality Assurance
Standard Ignition supplies this sensor as an OE-style replacement part for the listed applications. ALS2636T is built to match the fitment and electrical connection requirements of the confirmed front-wheel applications shown above.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Chevrolet | Impala | Front | — |
| 2019 | Chevrolet | Impala | Front | — |
| 2018 | Chevrolet | Impala | Front | — |
| 2017 | Chevrolet | Impala | Front | — |
| 2016 | Chevrolet | Impala | Front | — |
| 2016 | Chevrolet | Malibu Limited | Front | — |
| 2015 | Chevrolet | Impala | Front | — |
| 2015 | Chevrolet | Malibu | Front | — |
| 2014 | Chevrolet | Impala | Front | — |
| 2014 | Chevrolet | Malibu | Front | — |
| 2013 | Chevrolet | Malibu | Front | — |
