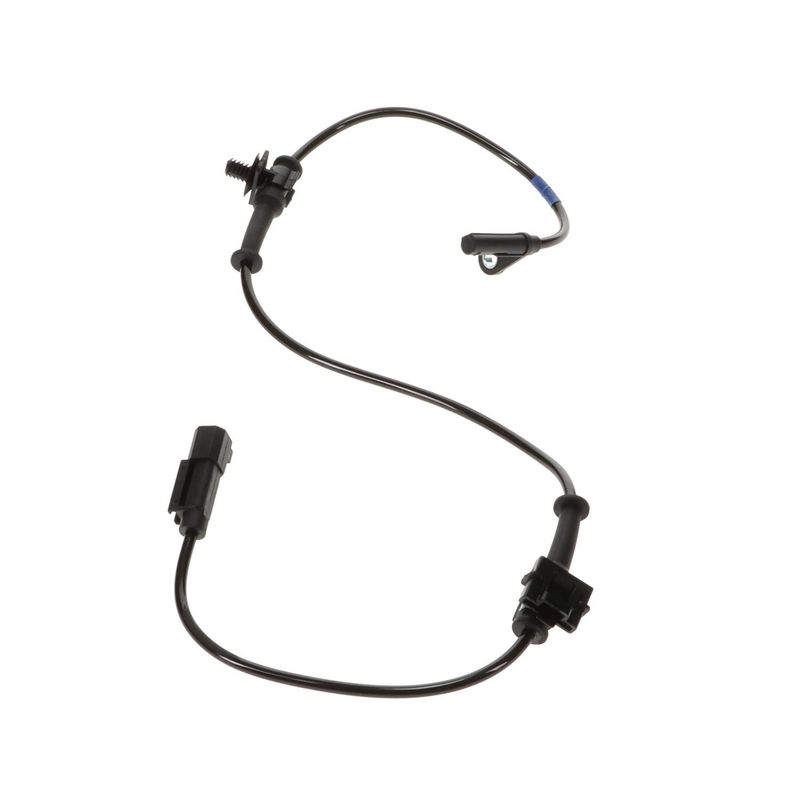

Standard ALS3020T ABS Wheel Speed Sensor - Front

ABS Wheel Speed Sensor Overview

The Standard ALS3020T ABS wheel speed sensor is a bolt-on replacement for front wheel applications on select Chrysler and Dodge vehicles. It uses a single connector, a 32-inch harness, and a black finish for a direct-fit service solution.

Key Features

• Bolt-on ABS wheel speed sensor with a wheel-mounted design
• Female connector with 2 terminals and an octagon-shaped connector body
• 32-inch wiring harness included for routing to the vehicle connection point
• Black finish with a single bolt-hole mounting style
• Standard ALS3020T part number for catalog matching and service lookup

Detailed Description

Standard ALS3020T is an ABS wheel speed sensor built for front applications on the Chrysler 300, Dodge Challenger, and Dodge Charger. It mounts at the wheel with a bolt-on attachment method and uses a female connector with male blade terminals for service replacement. The 32-inch harness provides the needed reach for installation, while the compact connector design supports a clean electrical connection. This part cross-references Standard Ignition ALS3020 and is also associated with interchange numbers 533391, 533391SB, 68199988AA, ABS3020, ABSB10321, and VSS355 for the same application.

What It Helps Address

• ABS warning light caused by a failed wheel speed sensor
• Erratic wheel speed signal readings at the front axle
• Loss of anti-lock brake system input from the wheel sensor
• Intermittent sensor connection issues at the wheel mount

Installation Notes and Tips

Fits 2015-2023 Chrysler 300, front; 2017-2023 Dodge Challenger, front; and 2015-2023 Dodge Charger, front. Confirm connector style, mounting type, and harness routing before installation. Mounting hardware is not included.

Quality Assurance

Standard offers this ALS3020T sensor as a service replacement part identified by a direct-fit style design and application-specific connector configuration.
