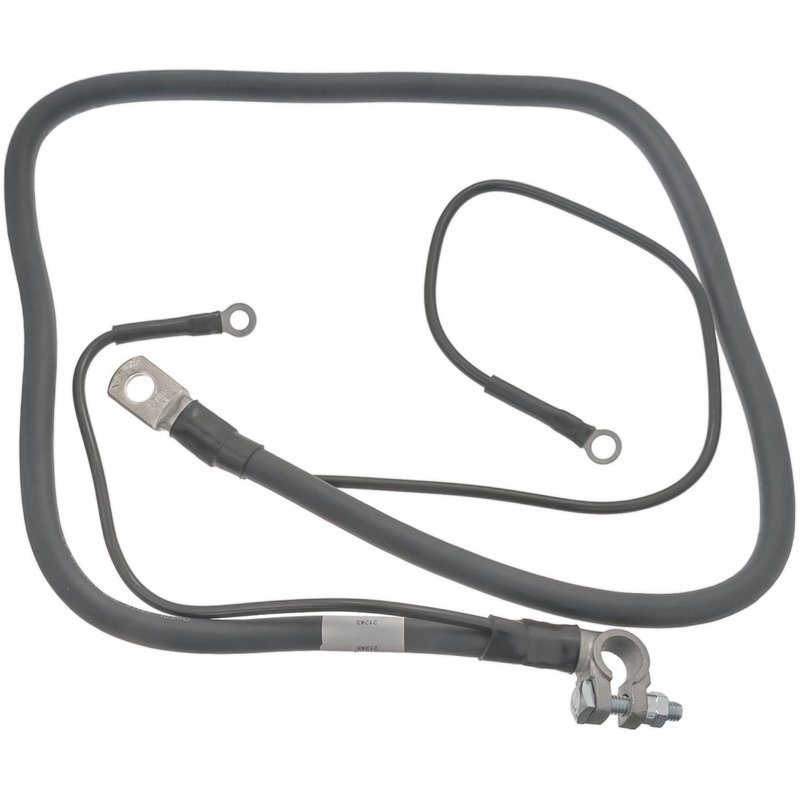

Standard Ignition A500UDC Battery Cable - Right Negative

Standard Ignition A500UDC Battery Cable

The Standard Ignition A500UDC is a negative battery cable built for direct battery-to-ground service on select Ford Super Duty trucks. It uses a 1/0 gauge solid conductor with a black synthetic rubber jacket for a durable, OE-style replacement fit.

Key Features

• Part number A500UDC for easy identification
• Negative battery cable with top-mount configuration
• 1/0 gauge solid conductor for main power path
• Black synthetic rubber jacket
• Ring terminals on both ends
• Two auxiliary leads: 8 ga. at 14 in. and 8 ga. at 23 in.
• Battery terminal contains lead
• Lug hole diameter: 0.5 in. (12.70 mm)

Detailed Description

Standard Ignition A500UDC is a battery cable assembly for the negative side of the electrical system. It is configured for top-mount battery layouts with two auxiliary leads, making it a practical replacement for the battery-to-ground connection on 1999-2001 Ford F-250 Super Duty and 1999-2001 Ford F-350 Super Duty models in the right negative position. The A500UDC part number is also useful when cross-checking service records or ordering by reference.

This part cross-references Ford OE-style numbers such as F81Z14301EA and FA50-0UDC for the same application.

Vehicle Fitment

• Fits 1999-2001 Ford F-250 Super Duty, right negative, battery to ground.
• Fits 1999-2001 Ford F-350 Super Duty, right negative, battery to ground.

Common Uses

• Restores a damaged or corroded negative battery connection
• Replaces a worn battery-to-ground cable on Ford Super Duty trucks
• Addresses hard-start or no-start conditions caused by poor grounding
• Helps correct voltage drop from a compromised cable path
• Supports reliable electrical grounding at the battery

Installation Notes and Tips

Verify the vehicle uses the right negative, battery-to-ground configuration before ordering. Confirm terminal style, lug hole diameter, and auxiliary lead routing against the original cable to ensure proper fit. Clean the battery post and ground attachment point before installation so the new cable can make a solid electrical connection.

Quality Assurance

Standard Ignition supplies electrical replacement parts for service applications, and this cable is built with the listed gauge, terminal, and jacket specifications for accurate replacement selection.
