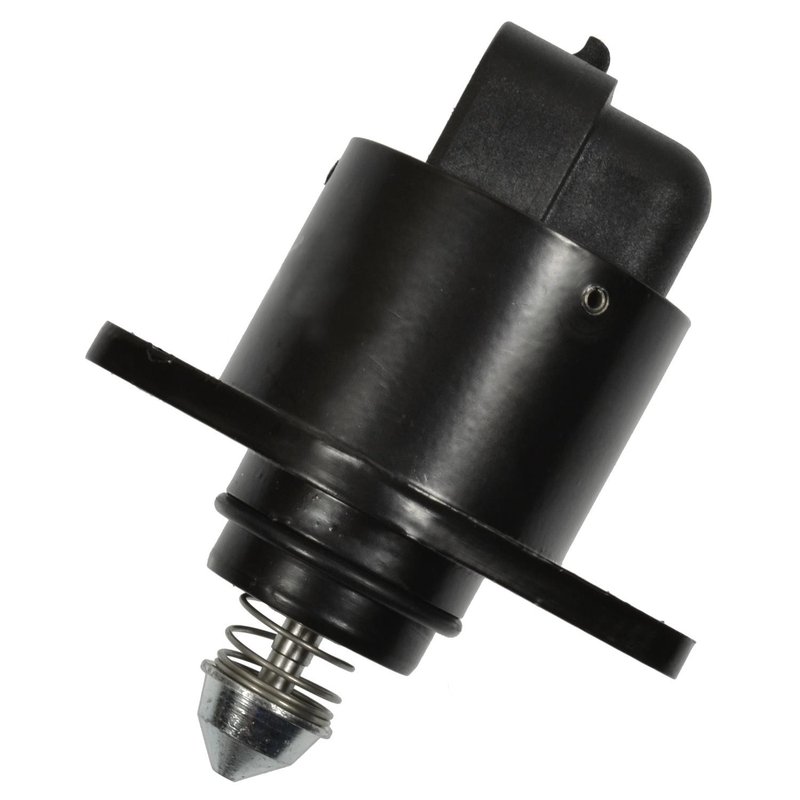

Standard Ignition AC121 Fuel Injection Idle Speed Regulator

Idle Air Control for Chevrolet and GMC

Standard Ignition AC121 is a fuel injection idle speed regulator built for precise idle air control on select Chevrolet, GMC, and Oldsmobile applications. It uses a polymer-blended, isotropic neodymium/iron/boron magnet and a high-strength stepping motor to help maintain accurate pintle movement and airflow control.

Fits 1990-1994 Chevrolet Cavalier, N/A; Fits 1992 Chevrolet S10 Blazer, N/A; Fits 1992 GMC Jimmy, N/A; Fits 1992 GMC Sonoma, N/A; Fits 1992 Oldsmobile Bravada, N/A; Fits 1995-2008 Chevrolet Chevy, N/A; Fits 2000-2003 Chevrolet Chevy Pickup, N/A; Fits 2000-2003 Chevrolet LUV, N/A.

• Standard Ignition AC121 idle air control valve for fuel injection systems
• 4-terminal electrical connection with 1 port
• Gaskets included for service replacement
• Hardware included for installation
• Load-tested actuator for consistent force output
• Shielded ball bearing motor resists environmental contaminants
• Built with high-grade materials for extended service life

Detailed Product Overview

This idle speed regulator helps manage bypass air at the throttle body so the engine can maintain a stable idle under changing load conditions. Standard Ignition AC121 is a direct-fit style replacement for applications such as Chevrolet Cavalier, Chevy Pickup, Chevy, S10 Blazer, GMC Jimmy, GMC Sonoma, and Oldsmobile Bravada, with interchange references including Delphi CV10034 and Walker Products 215-1014 for the same application.

Common Issues This Part May Address

• Rough or unstable idle after startup
• Idle speed that drops too low when accessories are turned on
• Stalling at stops or during deceleration
• Idle flare or inconsistent engine speed
• Check engine light concerns related to idle air control operation

Installation Notes and Tips

Verify connector style, port count, and terminal count before installation. Clean the throttle body and mating surfaces, replace the gasket during service, and inspect the intake tract for vacuum leaks that can affect idle quality. After installation, clear any stored codes and confirm idle speed stability at warm operating temperature.

Quality Assurance

Standard Ignition builds this idle air control valve with load testing, a shielded ball bearing motor, and durable internal materials to support consistent operation and long service life.
