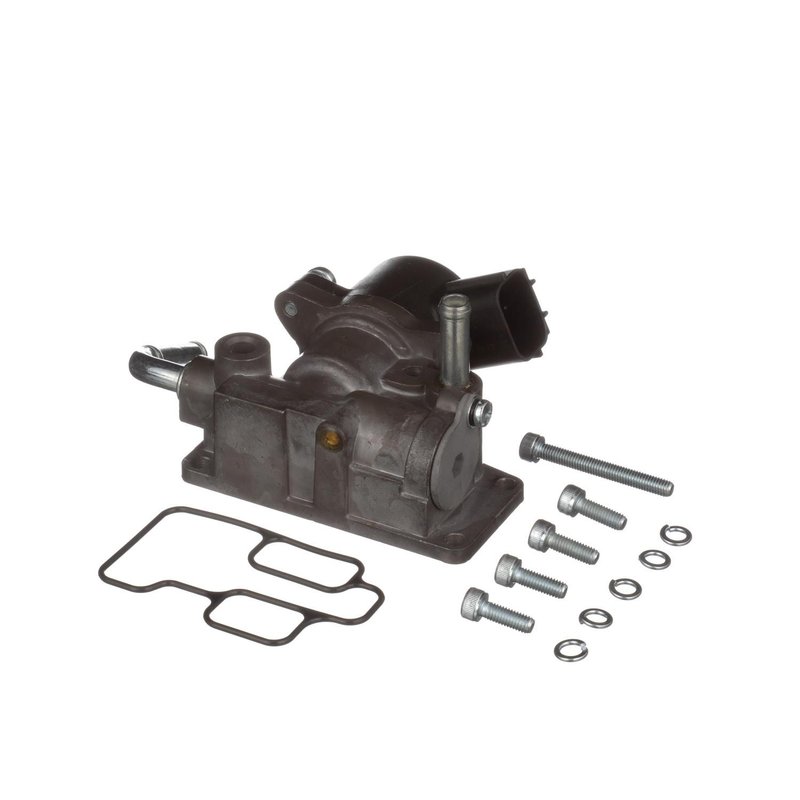

Standard Ignition AC283 Idle Air Control Valve
| Brand | Standard Ignition AC283 |
|---|---|
| Connector Shape | Square |
| Gaskets Included | Yes |
| Hardware Included | Yes |
| Fits | Nissan · 14 vehicles |
Direct replacement. Matches the original idle air control valve form for straightforward installation.
Square connector. Uses a square connector with six terminals for a secure electrical connection.
Gaskets included. Comes with gaskets and hardware for a more complete installation.
Cross-references Four Seasons 84976, Hitachi Automotive ABV0042 and Standard Ignition AC283 for the same application. See all 13.
Idle Air Control Valve for Nissan Sentra
Standard Ignition AC283 is an idle air control valve for select Nissan Sentra applications. It is built with a square connector shape, six terminals, two hose connectors, and includes gaskets and hardware for a complete replacement setup.
Key Features
- Idle air control valve for fuel injection system service
- Square connector shape with 6 terminals
- 2 hose connectors for the specified application
- Gaskets included for sealing at installation
- Hardware included for the replacement job
- Direct-fit coverage for select Nissan Sentra models
Application Details
Standard Ignition AC283 is used to restore idle air control function on select 2000-2006 Nissan Sentra vehicles, including Federal Emissions applications listed as Auxiliary Air Valve and primary idle air control valve coverage for 2000, 2001-2002, and 2003-2006 Nissan Sentra models. This part cross-references Hitachi Automotive ABV0042 for the same application. The AC283 part number is also referenced in interchange listings for related OE-style replacement needs.
What It Helps Fix
- Unstable or fluctuating idle speed
- Stalling when the engine returns to idle
- Idle speed that is too high or too low
- Idle control issues after throttle closure
- Driveability concerns on Nissan Sentra idle systems
Installation Notes and Tips
Verify the connector shape, terminal count, and hose connection layout before installation. Replace the included gaskets during service and confirm the throttle body and intake passages are clean so the new valve can regulate bypass air correctly. Match the vehicle’s emissions configuration to the fitment notes before ordering.
Quality Assurance
Standard Ignition AC283 is built for the listed Nissan Sentra applications and follows the specified connector, terminal, and hose-port configuration for proper replacement fitment.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Nissan | Sentra | 1.8L | L4 | N/A | Primary application for specific vehicle models ~ Idle Air Control Valve |
| 2006 | Nissan | Sentra | 1.8L | L4 | N/A | w/ Federal Emissions: Auxiliary Air Valve |
| 2005 | Nissan | Sentra | 1.8L | L4 | N/A | Primary application for specific vehicle models ~ Idle Air Control Valve |
| 2005 | Nissan | Sentra | 1.8L | L4 | N/A | w/ Federal Emissions: Auxiliary Air Valve |
| 2004 | Nissan | Sentra | 1.8L | L4 | N/A | Primary application for specific vehicle models ~ Idle Air Control Valve |
| 2004 | Nissan | Sentra | 1.8L | L4 | N/A | w/ Federal Emissions: Auxiliary Air Valve |
| 2003 | Nissan | Sentra | 1.8L | L4 | N/A | Primary application for specific vehicle models ~ Idle Air Control Valve |
| 2003 | Nissan | Sentra | 1.8L | L4 | N/A | w/ Federal Emissions: Auxiliary Air Valve |
| 2002 | Nissan | Sentra | 1.8L | L4 | N/A | Idle Air Control Valve fits vehicles with Federal Emissions and is the primary option. |
| 2002 | Nissan | Sentra | 1.8L | L4 | N/A | w/ Federal Emissions: Auxiliary Air Valve |
| 2001 | Nissan | Sentra | 1.8L | L4 | N/A | Idle Air Control Valve fits vehicles with Federal Emissions and is the primary option. |
| 2001 | Nissan | Sentra | 1.8L | L4 | N/A | w/ Federal Emissions: Auxiliary Air Valve |
| 2000 | Nissan | Sentra | 1.8L | L4 | N/A | Primary application for specific vehicle models ~ Idle Air Control Valve |
| 2000 | Nissan | Sentra | 1.8L | L4 | N/A | w/ Federal Emissions: Auxiliary Air Valve |
