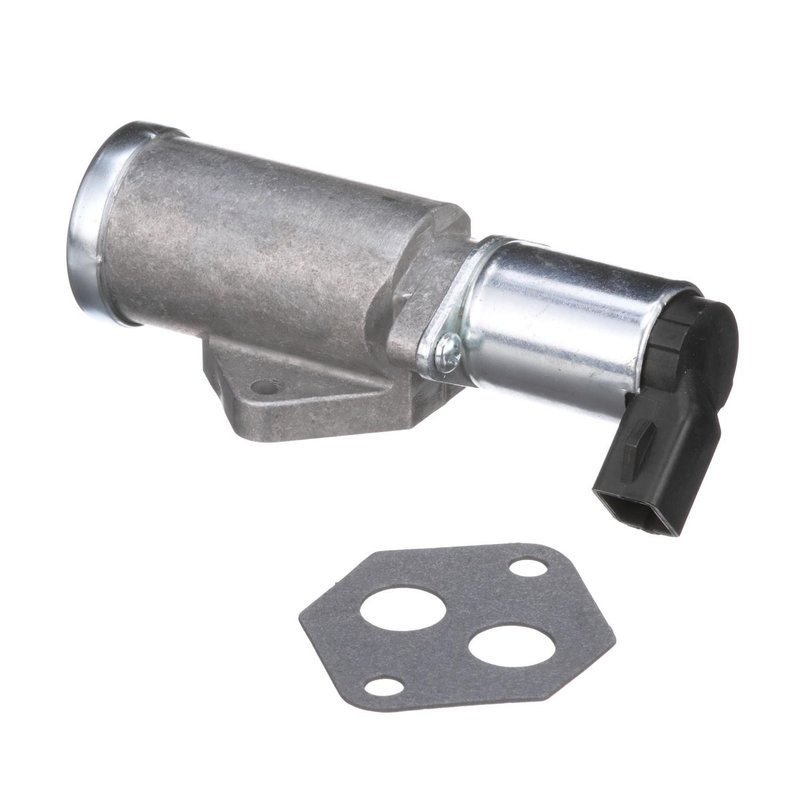

Standard Ignition AC34 Idle Air Control Valve

Idle Air Control Valve for Ford Applications

Standard Ignition AC34 is an idle air control valve built for precise airflow management at the throttle body. It uses a 2-pin terminal layout and a pin-style connection, making it a direct replacement choice for select Ford fuel injection systems.

Compatible With 1991-1993 Ford Mustang and 1990-1993 Ford Ranger, plus 1990 Ford Bronco and 1990 Ford F-150 in the listed emissions configurations. Standard Ignition AC34 is also a cross-reference for Gates 21930 and Walker Products 215-2006 for the same application.

Key Features

• 2-terminal, pin-type electrical connection
• Polymer-blended magnet for accurate pintle and airflow control
• High-strength stepping motor for consistent actuator output
• Shielded ball bearing helps resist environmental contaminants
• Load-tested for force output above actual operating load
• Built with high-grade materials for extended service life

Detailed Product Overview

This Standard Ignition idle air control valve is engineered to regulate bypass air so the engine can maintain stable idle speed under changing load conditions. The internal motor and magnet design support accurate pintle movement, while the sealed bearing construction helps protect the actuator from contamination in demanding underhood environments. For Ford Mustang and Ford Ranger idle air control valve replacement needs, AC34 provides a service-focused solution for drivability restoration.

Common Issues This Part May Address

• Rough or unstable idle
• Stalling when coming to a stop
• Idle speed that is too high or too low
• Idle fluctuation during accessory load changes
• Throttle response concerns related to airflow control

Installation Notes and Tips

Verify the terminal count and pin-style connector before installation. Confirm the vehicle’s emissions configuration and application details against the listed fitment for 1990 Ford Bronco and 1990 Ford F-150. Inspect the throttle body and intake passages for carbon buildup before replacing the valve, and clear any stored idle control codes after installation.

Quality Assurance

Standard Ignition manufactures this idle air control valve with load testing and durable internal components to support consistent operation and service life. The AC34 is built using high-grade materials and a protected motor design for dependable performance in the listed Ford applications.
