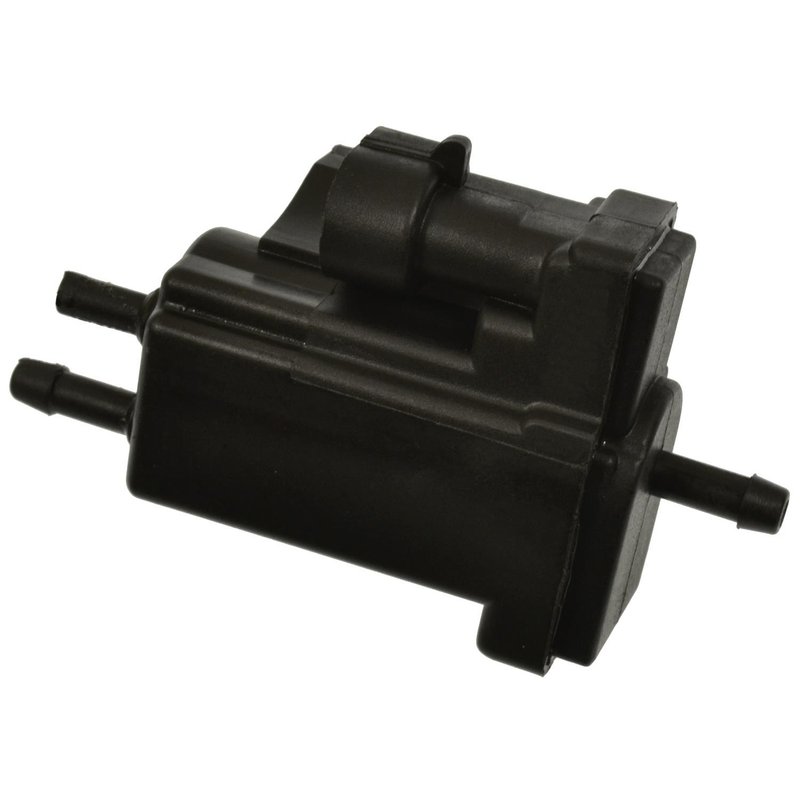

Standard Ignition AC437 Fuel Injection Idle Speed Control Actuator

Idle Air Control Valve for GM Fuel Injection

Standard Ignition AC437 is a fuel injection idle speed control actuator built for precise idle air management on select Chevrolet and GMC trucks, vans, and commercial chassis. It uses a polymer-blended, isotropic neodymium/iron/boron magnet and a high-strength stepping motor to control pintle movement and airflow with consistent response.

Fits 1994-1997 Chevrolet C2500, N/A; Fits 1994-1997 Chevrolet C2500 Suburban, N/A; Fits 1994-1997 Chevrolet C3500, N/A; Fits 1997 Chevrolet Express 3500, N/A; Fits 1994-1997 Chevrolet K2500, N/A; Fits 1995-1997 Chevrolet K2500 Suburban, N/A; Fits 1994-1997 Chevrolet K3500, N/A; Fits 1994-1997 Chevrolet P30, N/A; Fits 1994-1997 GMC C2500, N/A; Fits 1994-1997 GMC C2500 Suburban, N/A; Fits 1994-1997 GMC C3500, N/A; Fits 1994-1997 GMC K2500, N/A; Fits 1995-1997 GMC K2500 Suburban, N/A; Fits 1994-1997 GMC K3500, N/A; Fits 1994-1997 GMC P3500, N/A; Fits 1997 GMC Savana 3500, N/A; Fits 1994-1996 Chevrolet G30, N/A; Fits 1994-1996 GMC G3500, N/A.

Key Features

• Idle air control valve for fuel-injected GM applications
• Oval female connector with 1 connector and 2 male blade terminals
• 3 hose connectors for the specified intake and idle air routing
• Stepping motor construction for controlled pintle movement
• Shielded ball bearing helps resist environmental contamination
• Load-tested for force output above actual load requirements
• Standard Ignition AC437 replacement part number

Detailed Description

Standard Ignition AC437 is engineered to regulate bypass air at idle so the engine control system can maintain a stable idle speed under changing load conditions. The actuator’s magnet and stepping motor design support accurate pintle positioning, while the shielded bearing and durable materials are selected for extended service life in demanding underhood environments. This part cross-references 2-19227 and 73-5307 for the same application.

Common Issues It May Address

• Rough or unstable idle on Chevrolet C2500, C3500, and K-series trucks
• Idle speed that drops too low when accessories are turned on
• Stalling at stops on GMC C2500, K2500, and P3500 applications
• Idle fluctuation after throttle release on Express 3500 and Savana 3500 models
• Airflow control problems caused by a worn idle air control valve

Installation Notes and Tips

Verify connector style, terminal layout, and hose connection count before installation. Clean the throttle body and idle air passages during service so the new actuator can control airflow accurately. After installation, clear any stored idle-related fault codes and allow the engine control system to relearn idle strategy if required by the vehicle.

Quality Assurance

Standard Ignition manufactures this idle air control valve with high-grade materials and load testing to support consistent operation and long service life. The AC437 is built to meet the demands of GM truck, van, and chassis applications including Chevrolet C2500, GMC K2500, and related 1994-1997 models.
