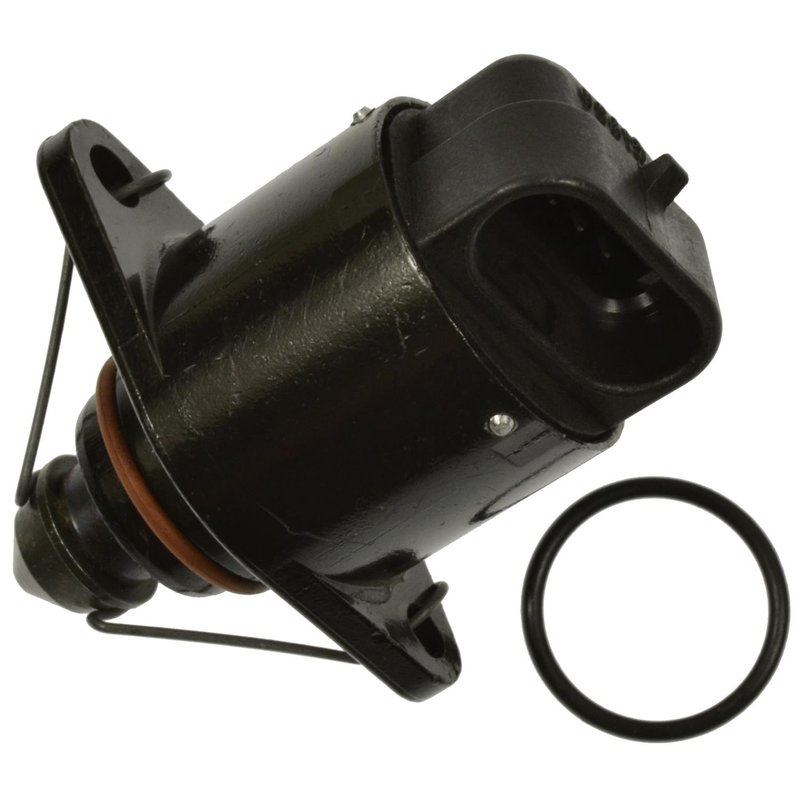

Standard Ignition AC51 Idle Air Control Valve

Idle Air Control Valve for GM Fuel Injection

Standard Ignition AC51 is an idle air control valve built for precise airflow management in electronic fuel injection systems. It is a direct-fit service part for select Chevrolet G30 and GMC G3500 applications with speed governor equipment, including primary and auxiliary air valve configurations.

• Oval connector shape for the listed applications
• 4-terminal electrical connection
• Includes gasket and O-ring
• Polymer-blended, isotropic neodymium/iron/boron magnet for accurate pintle control
• High-strength stepping motor for strong output torque
• Shielded ball bearing helps resist environmental contaminants
• Load-tested actuator for added durability and consistent performance

Detailed Application Coverage

Standard Ignition AC51 is engineered to regulate bypass air at idle so the engine can maintain stable speed under changing load conditions. It is a practical replacement for idle air control valve service on 1994-1995 Chevrolet G30, 1996 Chevrolet G30, and 1994-1996 GMC G3500 models with the specified speed governor setup. This part cross-references Gates 21822 for the same application. The AC51 part number is also commonly searched for GM idle air control valve replacement needs on Chevrolet G30 and GMC G3500 fuel injection systems.

What It Helps Address

• Unstable or fluctuating idle speed
• Idle stalling when accessories place load on the engine
• Idle speed that is too high or too low
• Airflow control issues related to a worn pintle or actuator
• Contamination-related IAC performance problems

Installation Notes

Verify connector shape, terminal count, and the oval 4-terminal layout before installation. The valve includes a gasket and O-ring, and no hardware is listed. Clean the throttle body and mating surfaces before mounting the new valve, then confirm the speed governor and idle strategy are correct after installation. For fitment, use AC51 only on the listed Chevrolet G30 and GMC G3500 applications.

Quality Assurance

Standard Ignition manufactures this idle air control valve with high-grade materials and tests the actuator under load to confirm it can deliver force beyond actual operating demand. The motor design uses a shielded bearing to help extend service life in contaminated environments, and the AC51 part number reflects a service component built for consistent idle control in the specified GM applications.
