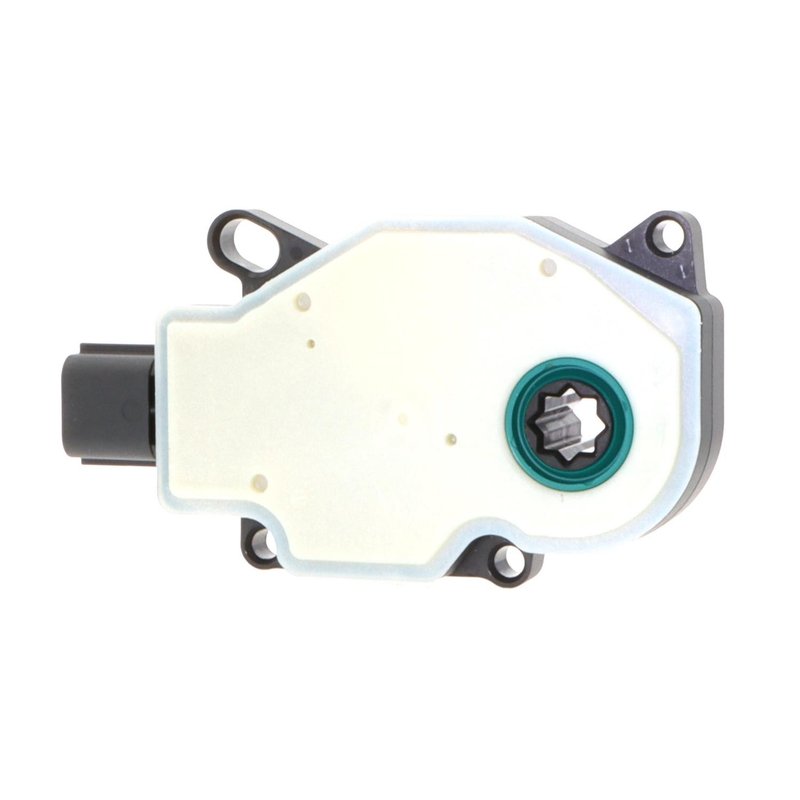

Standard Ignition AGA1002 Grille Shutter Actuator

Grille Shutter Actuator for Active Cooling Control

Standard Ignition AGA1002 is a grille shutter actuator for vehicles equipped with a radiator active grille shutter system. It uses a female oval connector with 4 blade terminals and a plastic housing for the electrical interface at the shutter assembly.

Compatible with 2018-2022 Ford Expedition, 2018-2022 Lincoln Navigator, and 2018-2020 Ford F-150 equipped with a radiator active grille shutter. The AGA1002 is a direct-fit electrical actuator component for restoring shutter movement and control.

Key Features

• Grille shutter actuator for radiator active grille shutter systems
• Female oval connector for the vehicle harness connection
• 4 blade terminals for the electrical interface
• Plastic construction
• Motor not included
• Mounting hardware not included

Detailed Description

Standard Ignition AGA1002 is built for active grille shutter assemblies used to manage airflow through the front of the vehicle. On Ford Expedition, Lincoln Navigator, and Ford F-150 applications, the actuator communicates with the shutter system to open and close the grille vanes as commanded by the vehicle’s control strategy. This part number, AGA1002, cross-references Standard Ignition 48-6002 for the same application.

Use AGA1002 when the original shutter actuator has failed electrically, the shutter assembly no longer responds correctly, or the system sets a grille shutter-related fault. The female oval connector and 4 blade terminals match the specified electrical connection style for the listed applications.

What It Helps Resolve

• Active grille shutter inoperative or stuck
• Fault codes related to grille shutter actuator performance
• Poor airflow control through the radiator shutter system
• Shutter vanes not opening or closing on command
• Loss of proper front-end aerodynamic shutter operation

Installation Notes and Tips

Verify the vehicle’s active grille shutter configuration before installation. Inspect the connector, terminals, and shutter linkage for damage or binding before replacing the actuator. Confirm the replacement matches the oval female connector and 4-blade terminal layout used on the application. Standard Ignition AGA1002 does not include a motor or mounting hardware.

Quality Assurance

Standard Ignition supplies electrical and engine management components for service replacement applications. Confirm fitment against the vehicle’s active grille shutter system and OE reference before installation.
