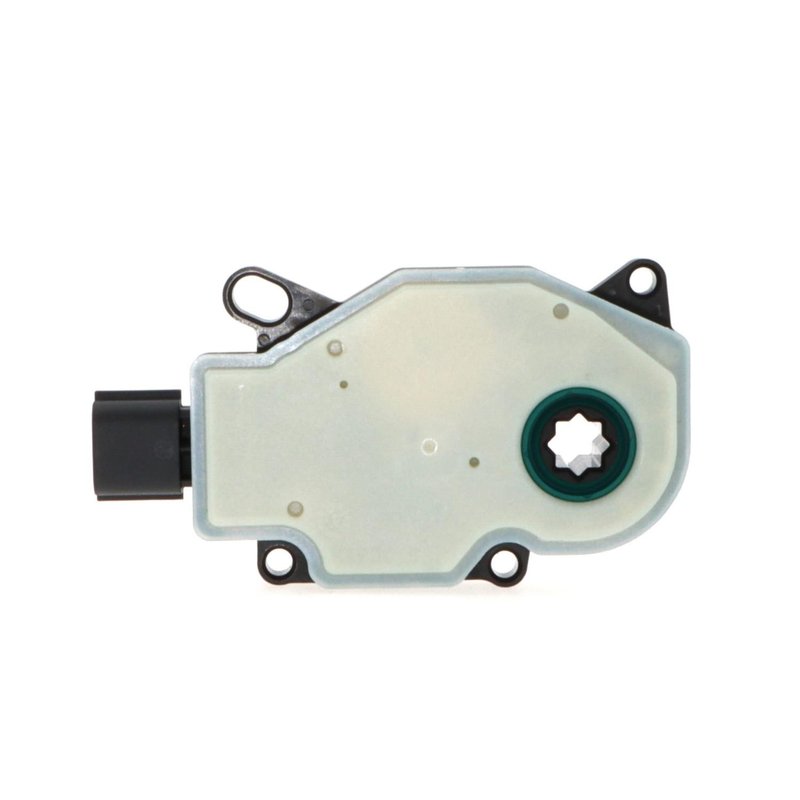

Standard Ignition AGA1009 Grille Shutter Actuator

Grille Shutter Actuator for Ford F-150

Standard Ignition AGA1009 is a grille shutter actuator for the radiator active grille shutter system on select 2015-2017 Ford F-150 models. It is built with a plastic housing, an oval female connector, and a 4-blade female terminal interface for direct electrical replacement.

Use AGA1009 when servicing an active grille shutter actuator on a Ford F-150 equipped with the radiator active grille shutter setup. This part cross-references Ford OE application FL3Z10884B for the same application.

Key Features

• Grille shutter actuator for radiator active grille shutter systems
• Plastic construction for underhood electrical service
• Oval female connector with 4 female blade terminals
• Motor not included
• Mounting hardware not included
• Standard Ignition AGA1009 replacement part number

Detailed Description

Standard Ignition AGA1009 is a body actuator and motor component used in the active grille shutter assembly on 2015-2017 Ford F-150 trucks. The actuator interfaces with the shutter system to help control airflow through the radiator opening based on vehicle operating conditions. With its female connector design, oval connector shape, and blade-style terminals, this part is specified for the electrical connection used on the listed application. Standard Ignition AGA1009 is also referenced by interchange numbers including 48-6009, ASA1009, GSA1009, and MSAA33.

What It Helps Address

• Active grille shutter fault codes
• Shutter blades that do not open or close correctly
• Loss of airflow control through the radiator opening
• Check engine or body system warnings related to shutter operation
• Replacement of a damaged actuator on a Ford F-150 radiator active grille shutter system

Installation Notes and Tips

Verify connector shape, terminal count, and vehicle application before installation. This part is listed without a motor and without mounting hardware, so reuse or source any required related components separately. Confirm the shutter assembly condition and inspect the electrical connector for corrosion, bent terminals, or heat damage before installing AGA1009.

Quality Assurance

Standard Ignition supplies electrical and body control replacement parts for service applications. AGA1009 is built to match the listed connector and terminal configuration for the specified Ford F-150 active grille shutter application.
