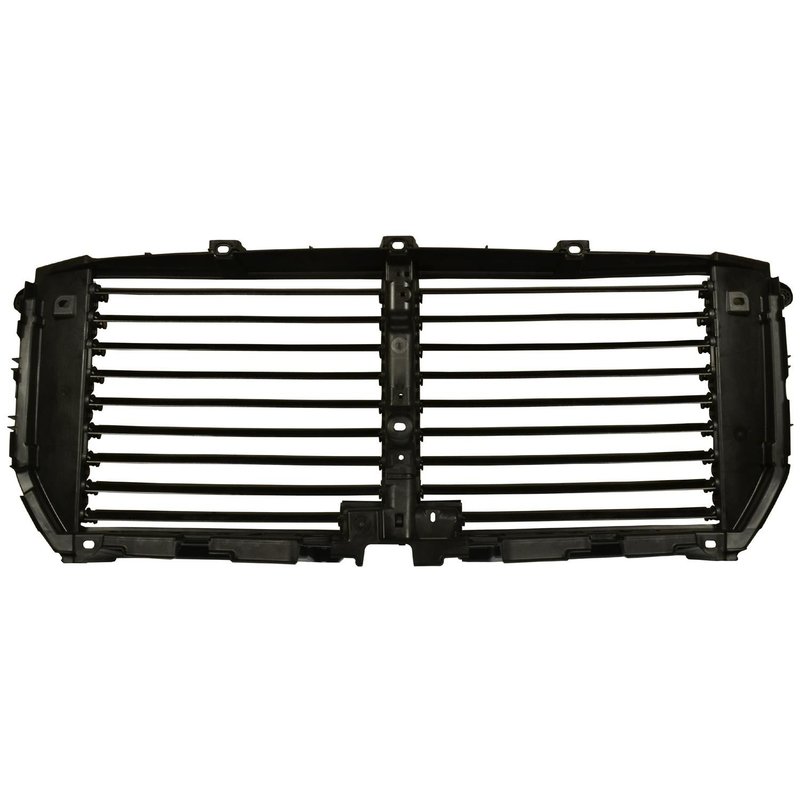

Standard Ignition AGS1000 Radiator Shutter Assembly

Overview of Standard Ignition Radiator Shutter Assembly AGS1000

The Standard Ignition Radiator Shutter Assembly AGS1000 is designed specifically for Ford F-150 models, providing reliable control of airflow through the radiator. This black plastic assembly includes a motor and features a female rectangular connector, ensuring proper fit and function in your vehicle's cooling system.

• Compatible with Ford F-150 models
• Black plastic construction for durability
• Includes motor for automatic shutter operation
• Female rectangular connector with one connection point
• Four male blade terminals for secure electrical connections

Detailed Product Description

The AGS1000 radiator shutter assembly from Standard Ignition is engineered to regulate airflow through the radiator, optimizing engine temperature control in Ford F-150 trucks. Constructed from durable black plastic, this assembly integrates a motor that automatically adjusts the shutter position based on cooling demands. The connector is female and rectangular in shape, with a single connection point, while the terminal configuration includes four male blade terminals, ensuring a secure and reliable electrical connection. This part is designed to meet OEM specifications for seamless integration and dependable performance.

Purpose and Common Applications

This radiator shutter assembly is used to manage engine cooling efficiency by controlling airflow through the radiator. It addresses several common issues, including:

• Improper engine temperature regulation
• Reduced fuel efficiency due to excessive cooling
• Overheating caused by stuck or malfunctioning shutters
• Electrical connection failures in the cooling system
• Wear and tear on original radiator shutter components

Installation Notes and Tips

When installing the Standard Ignition AGS1000 radiator shutter assembly on a Ford F-150, ensure the following:

• Disconnect the battery before installation to prevent electrical shorts
• Verify the connector gender and terminal type match your vehicle’s wiring harness
• Handle the plastic components carefully to avoid damage
• Test the motor operation after installation to confirm proper shutter movement
• Consult the vehicle’s service manual for specific torque specifications and mounting procedures

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and fitment. The AGS1000 radiator shutter assembly undergoes rigorous quality control testing. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary by region.
