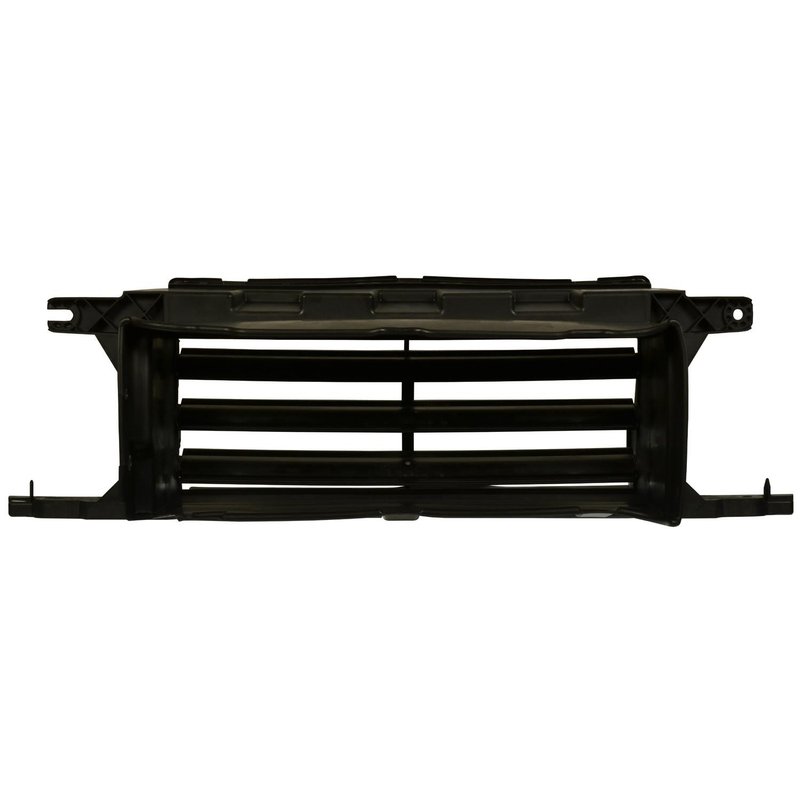

Standard Ignition AGS1002 Radiator Shutter Assembly

Overview of Standard Ignition Radiator Shutter Assembly AGS1002

The Standard Ignition Radiator Shutter Assembly AGS1002 is designed specifically for Ford F-150 models, providing precise control over airflow to the radiator. This black plastic assembly includes a motor and connectors engineered for reliable operation and seamless integration with your vehicle's cooling system.

• Compatible with Ford F-150 models
• Durable black plastic construction
• Includes motor for automatic shutter operation
• Female rectangular connector with one connection point
• Four male blade terminals for secure electrical connections

Detailed Product Description

The AGS1002 radiator shutter assembly from Standard Ignition is built to regulate airflow through the radiator, improving engine temperature management in Ford F-150 trucks. The assembly features a black plastic housing that resists corrosion and heat damage. It comes equipped with a motor to automate shutter movement, enhancing cooling efficiency based on engine demands. The electrical interface includes a single female rectangular connector and four male blade terminals, ensuring compatibility with factory wiring harnesses and straightforward installation.

Applications and Problem Solving

This radiator shutter assembly is used to optimize engine cooling and reduce aerodynamic drag by controlling airflow through the radiator. It addresses several common issues:

• Prevents engine overheating by regulating airflow
• Improves fuel efficiency by reducing unnecessary drag
• Replaces faulty or damaged radiator shutters in Ford F-150 vehicles
• Restores proper operation of the cooling system motor
• Ensures electrical connectivity with factory wiring harnesses

Installation Notes and Tips

Installation of the Standard Ignition AGS1002 radiator shutter assembly requires basic automotive electrical and mechanical skills. Ensure the vehicle is cool before beginning work. Disconnect the battery to prevent electrical shorts. Verify connector orientation and terminal alignment before securing connections. Test shutter operation after installation to confirm proper motor function and shutter movement.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The AGS1002 radiator shutter assembly undergoes quality control testing to ensure durability and reliable performance. Warranty coverage details should be confirmed with the product documentation or supplier.
