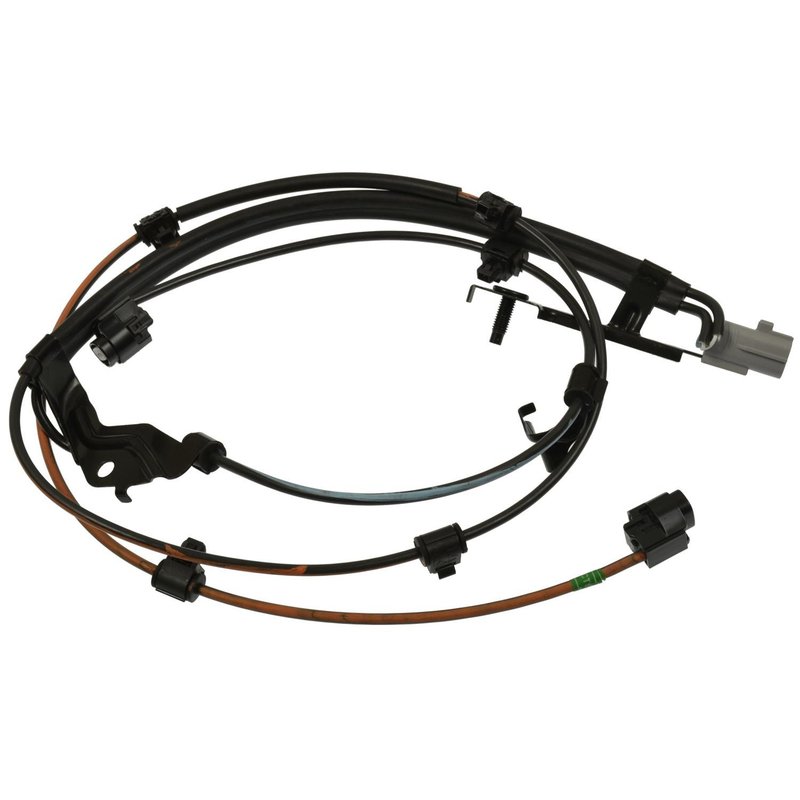

Standard Ignition ALH110 ABS Wheel Speed Sensor Wiring Harness - Rear Center

Overview of Standard Ignition ABS Wheel Speed Sensor Wiring Harness

The Standard Ignition ALH110 ABS wheel speed sensor wiring harness is designed specifically for Toyota Tundra models. This component ensures reliable communication between the ABS sensor and the vehicle’s electronic control unit, maintaining proper antilock brake system functionality.

• Connector Gender: Male
• Connector Quantity: 2
• Connector Shape: Square
• Terminal Gender: Male
• Terminal Quantity: 4
• Terminal Type: Blade
• Contents: Antilock brake speed sensor harness

Detailed Product Description

The ALH110 wiring harness from Standard Ignition is engineered to meet the exact specifications required for the Toyota Tundra’s ABS system. Featuring two square-shaped male connectors and four male blade terminals, this harness facilitates secure and precise electrical connections. The blade terminal design supports efficient current flow and durability under typical automotive conditions. This antilock brake speed sensor harness is essential for transmitting wheel speed data to the ABS control module, helping to prevent wheel lockup during braking.

Compatible Vehicles and Applications

This ABS wheel speed sensor wiring harness is compatible with Toyota Tundra models, providing a direct replacement for the original equipment part. It is intended for use in maintaining or restoring the proper function of the vehicle’s antilock braking system.

• Resolves intermittent ABS warning lights caused by wiring faults
• Addresses loss of wheel speed sensor signal
• Fixes issues related to ABS system malfunction or failure
• Prevents erratic ABS behavior due to damaged or corroded wiring
• Supports safe braking performance by ensuring accurate sensor data transmission

Installation Notes and Tips

When installing the ALH110 wiring harness, ensure the connectors are fully seated and locked to prevent disconnection. Verify that the blade terminals are clean and free of corrosion before connection. Route the harness away from heat sources and moving parts to avoid premature wear. It is recommended to inspect the ABS sensor and related components during installation to confirm overall system integrity.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The ALH110 wiring harness undergoes rigorous quality control to ensure reliable performance in Toyota Tundra vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
