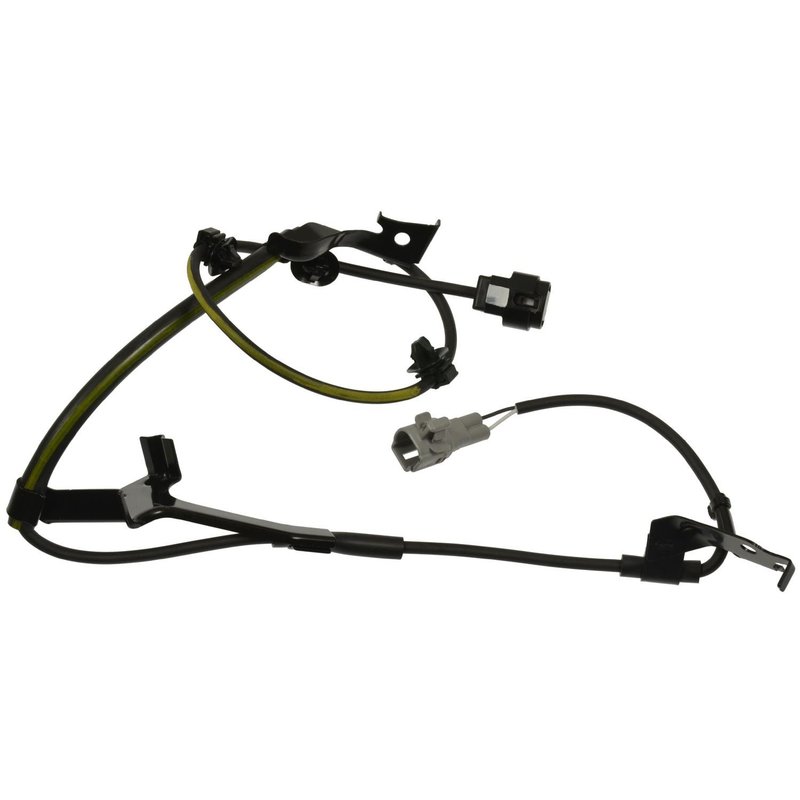

Standard Ignition ALH117 ABS Wheel Speed Sensor Wiring Harness - Front Right

ABS Wheel Speed Sensor Harness for Toyota

Standard Ignition ALH117 is an ABS wheel speed sensor wiring harness for the front right position on select Toyota applications. It connects the antilock brake speed sensor circuit with the correct OE-style terminal and connector layout for a direct replacement service part.

Key Features

• ABS wheel speed sensor wiring harness for brake system repair
• Female connector design with 2 connectors
• Oval connector shape for the specified application
• Blade terminals with female and male terminal ends
• 3 bolt holes for secure mounting alignment
• Contents: antilock brake speed sensor harness
• Standard Ignition ALH117 replacement part

Detailed Description

This Standard Ignition ALH117 harness is built for the front right ABS sensor circuit on 2003-2009 Toyota 4Runner and 2007-2010 Toyota FJ Cruiser models. It is a direct-fit wiring harness for restoring the electrical connection between the wheel speed sensor and the vehicle’s antilock brake system. The connector layout, oval shape, and blade terminal design support a proper OE-style replacement for the original harness.

This part cross-references Holstein 2ABS3058 for the same application. Standard Ignition ALH117 is also referenced by interchange numbers including 1P3804 and 536118.

What It Is Used For

• Repairing a damaged or corroded front right ABS wheel speed sensor harness
• Restoring intermittent wheel speed sensor signal loss
• Addressing ABS warning light concerns related to wiring faults
• Replacing cracked, broken, or heat-damaged sensor harness connectors
• Correcting poor electrical contact at the front right wheel speed sensor circuit

Installation Notes and Tips

Verify connector shape, terminal style, and mounting points before installation. This harness does not include dust shield or mounting hardware. Confirm vehicle fitment by year, model, and front right position before replacing the original part. For best results, inspect the sensor, connector pins, and nearby brake wiring for corrosion or abrasion during service.

Quality Assurance

Standard Ignition replacement electrical components are built to match the application-specific connector and terminal requirements used in brake system repairs. This helps support a clean, direct replacement on the listed Toyota 4Runner and Toyota FJ Cruiser fitments.
