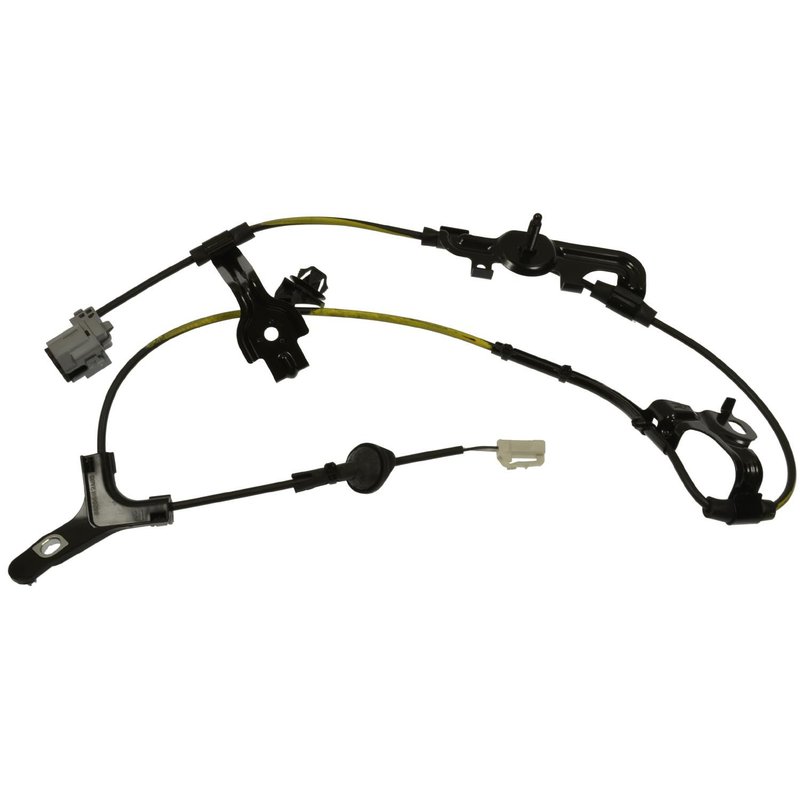

Standard Ignition ALH147 ABS Wheel Speed Sensor Wiring Harness - Rear Right

ABS Wheel Speed Sensor Harness for Toyota Matrix

Standard Ignition ALH147 is an ABS wheel speed sensor wiring harness for the rear right position on select 2009-2013 Toyota Matrix models. It connects the antilock brake speed sensor circuit with the correct female oval connectors and alligator-style terminals for a direct-fit repair.

Key Features

• Part number ALH147 for the rear right ABS wheel speed sensor circuit
• Fits 2009-2013 Toyota Matrix, rear right
• Female connector gender with 2 connectors
• Oval connector shape for application-specific fitment
• Includes antilock brake speed sensor harness contents
• Female terminals with 2 terminal positions and alligator terminal type

Detailed Description

Standard Ignition ALH147 is a replacement ABS wheel speed sensor wiring harness built for the rear right location on Toyota Matrix vehicles from 2009 through 2013. This harness restores the electrical connection between the wheel speed sensor and the antilock brake system, helping maintain accurate wheel speed signal transfer for ABS operation. If you are servicing a 2009-2013 Toyota Matrix rear right ABS sensor circuit, ALH147 provides the correct connector style and terminal configuration for the application.

This part cross-references 1P3779 and ABH147 for the same application.

What It Is Used For

• Repairing damaged ABS wheel speed sensor wiring at the rear right wheel
• Replacing cracked, corroded, or broken sensor harness connectors
• Restoring intermittent wheel speed sensor signal at the Toyota Matrix rear right position
• Addressing ABS warning light concerns caused by wiring faults
• Correcting open-circuit or poor-connection issues in the antilock brake sensor harness

Installation Notes and Tips

Verify connector shape, terminal style, and rear right fitment before installation. Inspect the sensor, connector terminals, and nearby wiring for corrosion, abrasion, or heat damage so the new harness is not installed into a compromised circuit. Confirm proper routing and secure the harness away from moving suspension components.

Quality Assurance

Standard Ignition supplies replacement electrical components for automotive repair applications. ALH147 is built to match the specified connector and terminal configuration for the listed Toyota Matrix fitment.
