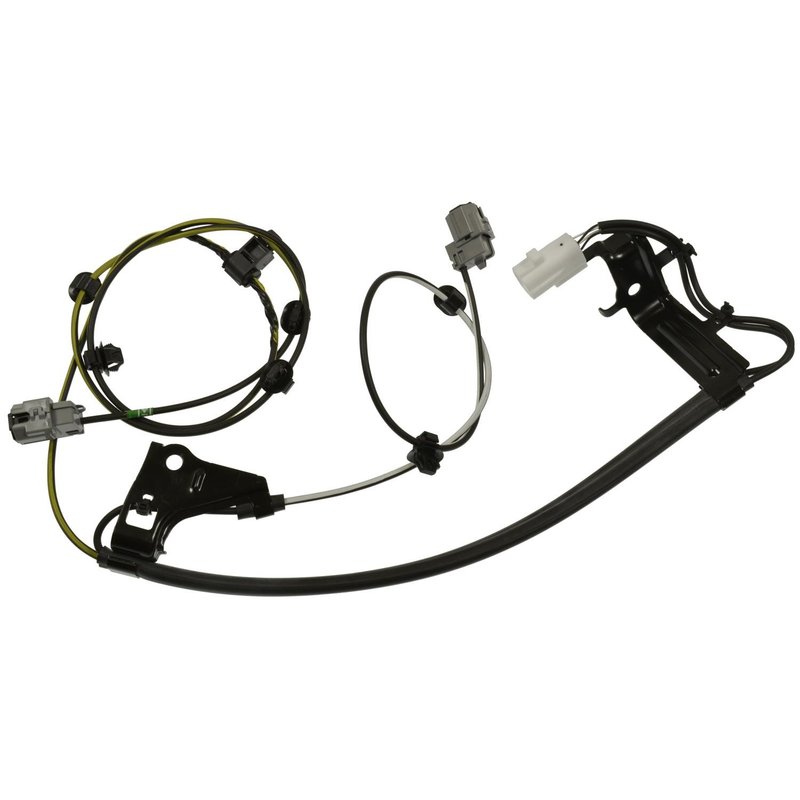

Standard Ignition ALH152 ABS Wheel Speed Sensor Wiring Harness - Rear Center

ABS Wheel Speed Sensor Harness for Tundra

Standard Ignition ALH152 is an ABS wheel speed sensor wiring harness for the rear center position on select Toyota Tundra models. It is built with three square connectors and blade-and-pin terminals to restore a secure electrical connection in the antilock brake system.

Fits 2007-2019 Toyota Tundra, rear center. This Standard Ignition ALH152 harness is a direct-fit service part for the rear center ABS sensor circuit on the Toyota Tundra.

Key Features

• ABS wheel speed sensor wiring harness for the rear center location
• Three connectors with square connector shape
• Connector gender configuration: male, male, female
• Terminal type: blade and pin
• Two bolt holes for mounting alignment
• Contents: antilock brake speed sensor harness
• Standard Ignition ALH152 replacement part

Detailed Description

Standard Ignition ALH152 is an antilock brake speed sensor harness engineered for the rear center ABS circuit on 2007-2019 Toyota Tundra trucks. The harness uses a three-connector layout with male, male, and female connector genders, plus blade-and-pin terminals for the electrical interface. If the original harness is damaged, corroded, or no longer maintaining a stable signal path, this replacement helps restore the connection between the wheel speed sensor and the ABS system. Standard Ignition ALH152 also cross-references Holstein 2ABS4845 for the same application.

Common Problems This Part Can Address

• ABS warning light caused by a damaged rear center sensor harness
• Intermittent wheel speed sensor signal from worn wiring or terminals
• Corrosion at the connector interface affecting brake system communication
• Broken or loose harness connection at the rear center position
• Electrical faults traced to the antilock brake speed sensor circuit

Installation Notes and Tips

Verify connector shape, terminal style, and mounting points before installation. Inspect the surrounding wiring, sensor connector, and bracket area for corrosion, abrasion, or impact damage before connecting the new harness. Confirm the harness routing matches the original path on the Toyota Tundra to avoid strain on the ABS wiring.

Quality Assurance

Standard Ignition is a recognized aftermarket source for electrical and ignition service parts. ALH152 is built as a replacement ABS wheel speed sensor wiring harness for the specified Toyota Tundra rear center application.
