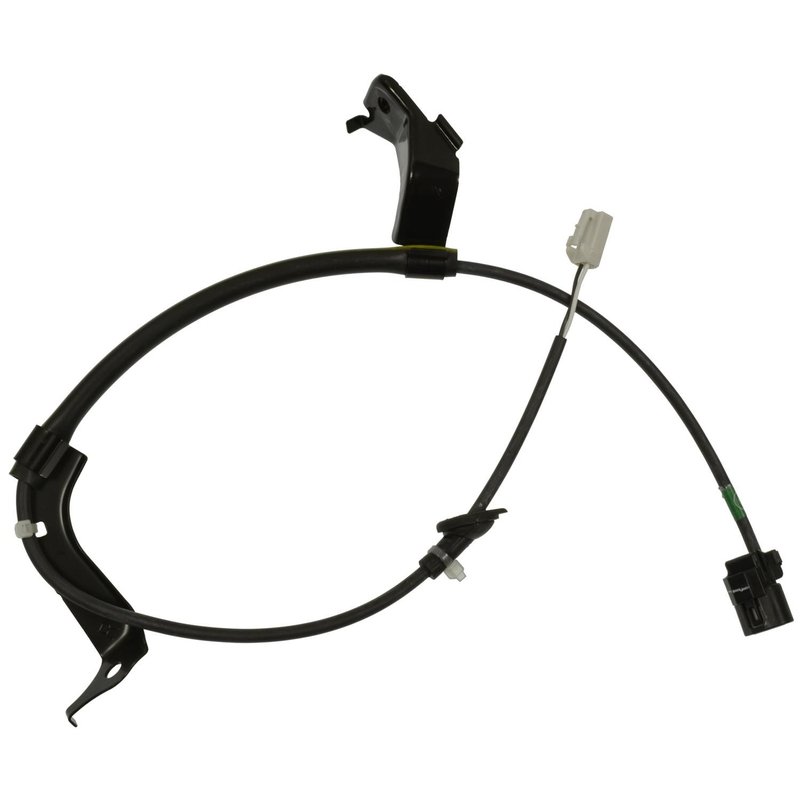

Standard Ignition ALH166 ABS Wheel Speed Sensor Wiring Harness - Rear Right

Overview of Standard Ignition ABS Wheel Speed Sensor Wiring Harness

The Standard Ignition ALH166 ABS wheel speed sensor wiring harness is designed specifically for Toyota Sienna models. This component ensures reliable communication between the ABS sensor and the vehicle’s electronic control unit, maintaining proper antilock brake system functionality.

• Connector Gender: Female
• Connector Quantity: 2
• Connector Shape: Oval
• Terminal Gender: Female
• Terminal Quantity: 2
• Terminal Type: Blade plug
• Contents: Antilock brake speed sensor harness

Detailed Product Description

The ALH166 wiring harness by Standard Ignition is engineered to meet the specific electrical and mechanical requirements of the Toyota Sienna ABS system. Featuring two female oval connectors and two female blade plug terminals, this harness facilitates secure and precise connections to the ABS wheel speed sensors. The design supports accurate transmission of wheel speed data, which is critical for the antilock braking system to function correctly and maintain vehicle stability during braking.

Compatible Vehicles and Applications

This ABS wheel speed sensor wiring harness is compatible with Toyota Sienna models, providing a direct replacement for the original equipment part. It is intended for use in maintaining or restoring the ABS system’s performance, particularly in vehicles experiencing sensor communication issues.

• Intermittent ABS warning lights
• Faulty or inconsistent wheel speed sensor readings
• Loss of ABS functionality during braking
• Electrical connection damage or corrosion in the sensor harness
• Diagnostic trouble codes related to wheel speed sensor circuits

Installation Notes and Tips

When installing the ALH166 wiring harness, ensure the connectors are fully seated and locked to prevent signal loss. Inspect the surrounding wiring and sensor connectors for damage or corrosion before installation. Use appropriate tools to avoid damaging the blade plug terminals. It is recommended to verify ABS system operation after installation using a diagnostic scanner.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The ALH166 wiring harness undergoes rigorous quality control to ensure durability and reliable performance in the Toyota Sienna ABS system. Warranty coverage details should be confirmed with the product documentation or supplier.
