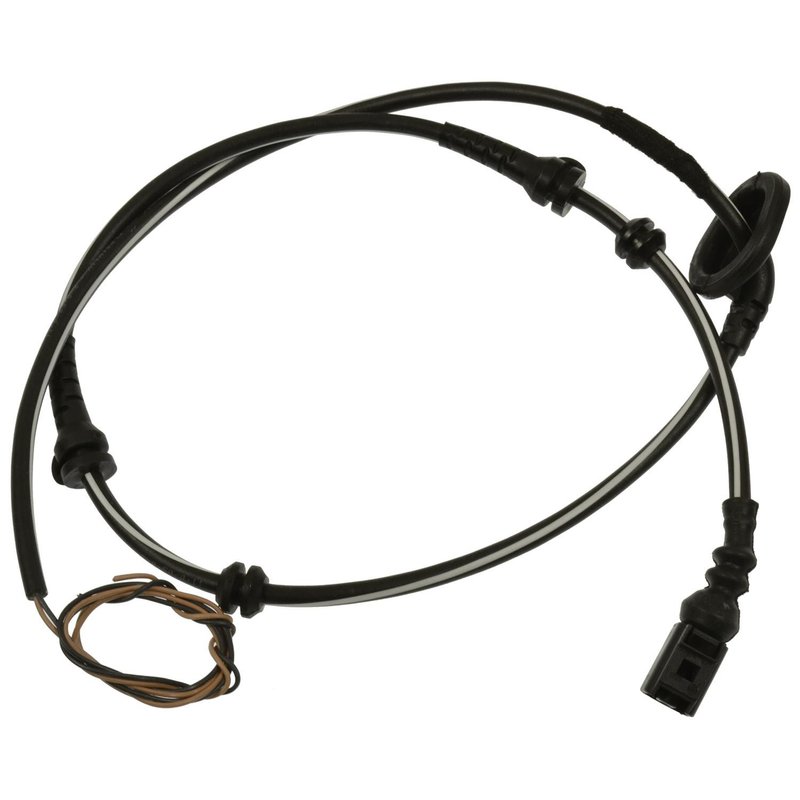

Standard Ignition ALH195 ABS Wheel Speed Sensor Wiring Harness - Rear Right
| Brand | Standard Ignition ALH195 |
|---|---|
| Position | Rear Right |
| Connector Gender | Male |
| Connector Shape | Oval |
| Contents | Antilock Brake Speed Sensor Harness |
| Dust Shield Included | No |
| Mounting Hardware Included | No |
| Number of Bolt Holes | 0 |
| Terminal Gender | Male; Female |
| Terminal Type | Wire Lead, Blade |
| Fits | Volkswagen · 3 vehicles |
ABS sensor harness. Connects the antilock brake speed sensor with a 4-terminal wire lead and blade design.
Oval connector. Single male connector for a secure, straightforward electrical connection.
No mounting hardware included for a clean replacement of the harness assembly.
Cross-references Standard Ignition ALH195, 1P3718 and 536196 for the same application. See all 6.
ABS Wheel Speed Sensor Harness for Passat
Standard Ignition ALH195 is an ABS wheel speed sensor wiring harness for the rear right position on select Volkswagen Passat models. It provides the connector and terminal layout needed to restore a secure electrical path between the antilock brake speed sensor and the vehicle harness.
Fits 2012-2014 Volkswagen Passat, rear right. This Standard Ignition ALH195 harness is built with a male oval connector and wire lead/blade terminal design for direct replacement service on the rear right ABS sensor circuit.
Key Features
- ABS wheel speed sensor wiring harness for brake system repair
- Fits 2012-2014 Volkswagen Passat, rear right
- Male oval connector with 4 terminals
- Terminal style: wire lead and blade
- Contents: antilock brake speed sensor harness
- Standard Ignition ALH195 replacement part
Detailed Description
Standard Ignition ALH195 is an ABS wheel speed sensor wiring harness made for the rear right side of the Volkswagen Passat in model years 2012 through 2014. It is designed around a single oval connector with male connector gender and male/female terminal configuration, matching the electrical interface used in the antilock brake speed sensor circuit. If you are replacing a damaged rear right ABS sensor harness on a Volkswagen Passat, ALH195 provides the correct harness format for that application. This part cross-references 1P3718 and 536196 for the same application.
Common Repair Uses
- Broken or frayed ABS sensor wiring at the rear right wheel
- Corroded connector terminals causing intermittent wheel speed signal loss
- ABS warning light triggered by harness damage
- Open circuit or poor connection in the rear wheel speed sensor lead
- Harness replacement after suspension or brake service damage
Installation Notes and Tips
Verify the rear right position and connector shape before installation. Inspect the sensor connector, terminal condition, and nearby wiring for corrosion, abrasion, or heat damage before connecting the new harness. Confirm the harness routing follows the original path and keep the wiring clear of moving suspension and brake components.
Quality Assurance
Standard Ignition replacement electrical components are built for service-fit applications and consistent connector matching. Confirm vehicle fitment by year, make, model, and rear right position before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Volkswagen | Passat | Rear Right | — |
| 2013 | Volkswagen | Passat | Rear Right | — |
| 2012 | Volkswagen | Passat | Rear Right | — |
