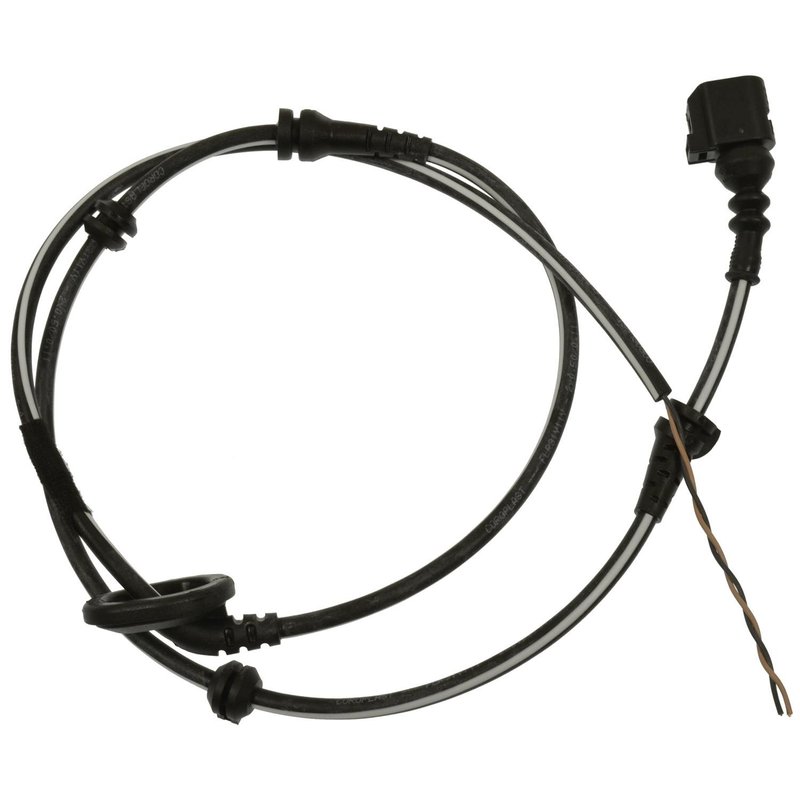

Standard Ignition ALH233 ABS Wheel Speed Sensor Wiring Harness - Rear Right
| Brand | Standard Ignition ALH233 |
|---|---|
| Position | Rear Right |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Contents | Antilock brake speed sensor harness |
| Dust Shield Included | No |
| Mounting Hardware Included | No |
| Number of Bolt Holes | 0 |
| Terminal Gender | Male; female |
| Terminal Quantity | 4 |
| Terminal Type | Wire lead, blade |
| Fits | Volkswagen · 3 vehicles |
Direct replacement. ABS wheel speed sensor harness with an oval connector for a clean fit.
Female connector. Includes a 4-terminal wire lead and blade design for reliable connections.
Cross-references Standard Ignition ALH233, 1P3727 and 5C0927904G for the same application. See all 5.
ABS Wheel Speed Sensor Harness for Rear Right
Standard Ignition ALH233 is an ABS wheel speed sensor wiring harness for the rear right position on select Volkswagen Beetle models. It is built with a female connector, oval connector shape, and wire lead/blade terminals to match the original sensor harness connection points.
Key Features
- Fits 2012-2014 Volkswagen Beetle, rear right
- ABS wheel speed sensor wiring harness for antilock brake system service
- Female connector with oval connector shape
- Wire lead and blade terminal design
- 4 terminals for the specified application
- Standard Ignition ALH233 replacement part
Detailed Description
This Standard Ignition ALH233 harness is designed for the rear right ABS wheel speed sensor connection on 2012, 2013, and 2014 Volkswagen Beetle models. It serves as the antilock brake speed sensor harness between the vehicle wiring and the wheel speed sensor, helping restore a secure electrical connection in the ABS circuit. This part cross-references 1P3727 and ABH233 for the same application.
Use Standard Ignition ALH233 when servicing a damaged, corroded, or broken rear right wheel speed sensor harness on a Volkswagen Beetle. The oval female connector and blade/wire lead terminal layout are important for proper fitment at the rear right wheel position.
Common Issues This Part May Solve
- ABS warning light caused by an open or damaged wheel speed sensor circuit
- Intermittent wheel speed sensor signal at the rear right wheel
- Corrosion or wear at the sensor harness connector
- Broken wiring near the wheel hub area
- Fault codes related to the antilock brake system on Volkswagen Beetle models
Installation Notes and Tips
Verify the rear right location and connector style before installation. Inspect the mating connector, wiring routing, and nearby clips or retainers for damage before connecting the new harness. Confirm the harness path is clear of moving suspension and brake components, and check ABS fault codes after repair to verify the circuit is operating correctly.
Quality Assurance
Standard Ignition replacement electrical components are built to match the specified application details for fit and connection style. Confirm part number ALH233 against the original harness and vehicle configuration before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Volkswagen | Beetle | Rear Right | — |
| 2013 | Volkswagen | Beetle | Rear Right | — |
| 2012 | Volkswagen | Beetle | Rear Right | — |
