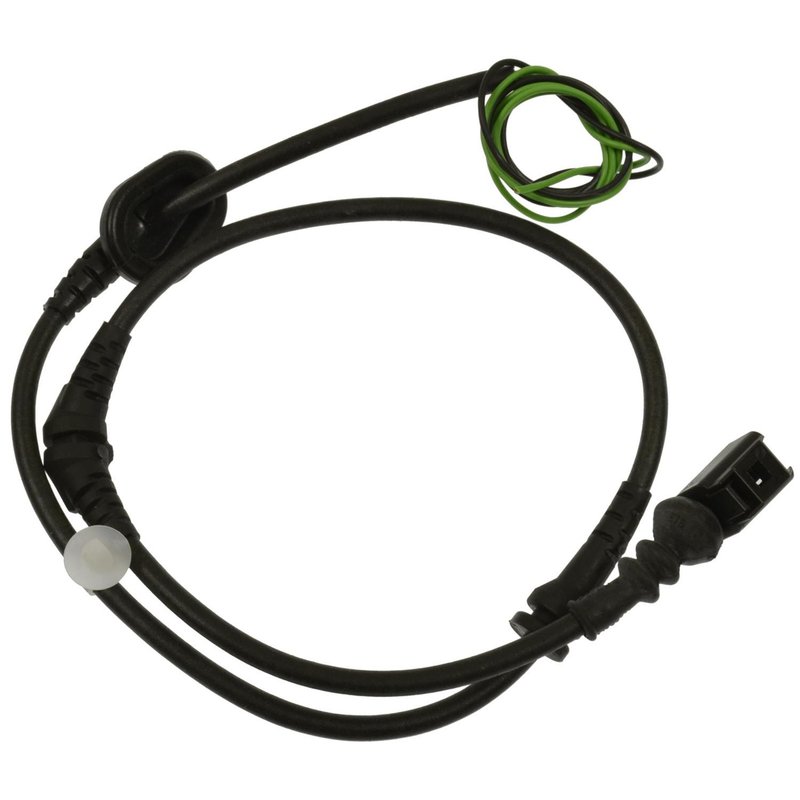

Standard Ignition ALH239 ABS Wheel Speed Sensor Wiring Harness - Front Right

Overview of Standard Ignition ABS Wheel Speed Sensor Wiring Harness

The Standard Ignition ALH239 ABS wheel speed sensor wiring harness is designed specifically for Volkswagen Passat models. This wiring harness ensures reliable communication between the ABS sensor and the vehicle’s braking system, maintaining proper antilock brake function.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Oval
• Contents: Antilock brake speed sensor harness
• Dust Shield: Not included
• Mounting Hardware: Not included
• Number of Bolt Holes: 0
• Terminal Gender: Male and Female
• Terminal Quantity: 4
• Terminal Type: Wire lead and blade

Detailed Product Description

The ALH239 wiring harness from Standard Ignition is engineered to provide a secure and precise connection for the ABS wheel speed sensor on Volkswagen Passat vehicles. Featuring a single female oval connector, this harness facilitates accurate signal transmission essential for the antilock braking system’s performance. The harness includes four terminals with both male and female wire lead and blade types, ensuring compatibility with the vehicle’s existing wiring. While it does not include a dust shield or mounting hardware, the design focuses on durability and reliable electrical connectivity within the brake system.

Compatible Applications and Common Issues Addressed

• Restores proper ABS sensor signal transmission on Volkswagen Passat models
• Resolves intermittent ABS warning lights caused by wiring faults
• Eliminates erratic ABS braking behavior due to damaged sensor harness
• Prevents sensor communication failures that affect traction control systems
• Replaces worn or corroded wiring harness components in the ABS system

Installation Notes and Tips

When installing the ALH239 ABS wheel speed sensor wiring harness, ensure the oval female connector is securely attached to the sensor. Verify that all four terminals are properly connected to avoid signal loss. Since mounting hardware is not included, use existing clips or fasteners to secure the harness in place and prevent movement or abrasion. Inspect the surrounding wiring and connectors for damage during installation to maintain system integrity.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit and function. The ALH239 wiring harness undergoes quality control testing to ensure reliable performance in Volkswagen Passat vehicles. Please refer to Standard Ignition’s warranty policy for coverage details on this ABS wheel speed sensor wiring harness.
