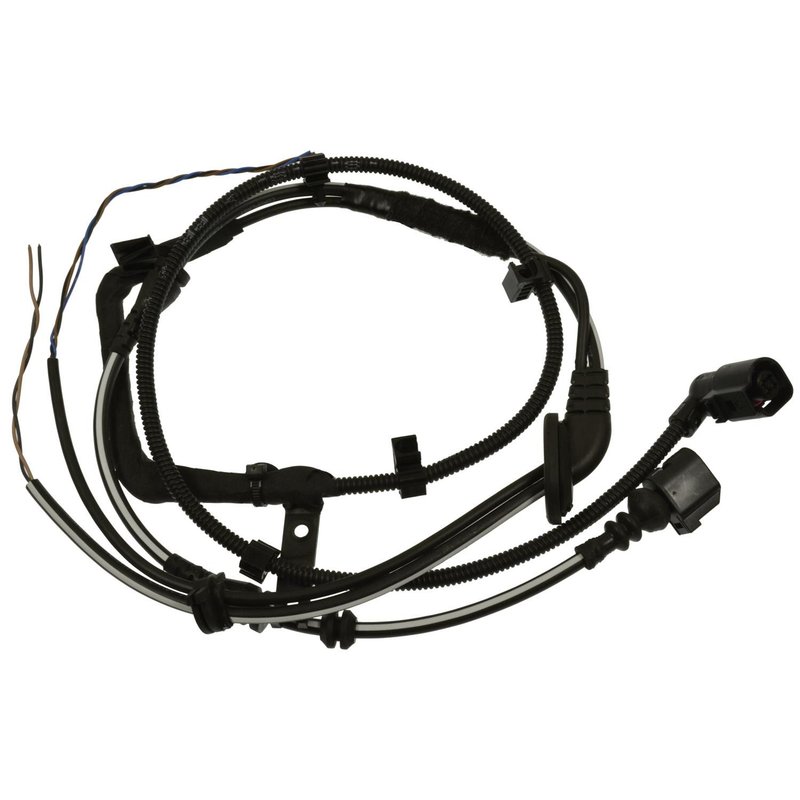

Standard Ignition ALH247 ABS Wheel Speed Sensor Wiring Harness - Rear Left
| Brand | Standard Ignition ALH247 |
|---|---|
| Position | Rear Left |
| Connector Gender | Female |
| Connector Quantity | 2 |
| Connector Shape | Oval |
| Contents | Antilock brake speed sensor harness |
| Dust Shield Included | No |
| Mounting Hardware Included | No |
| Number of Bolt Holes | 0 |
| Terminal Gender | Female |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| Fits | Volkswagen · 6 vehicles |
Direct replacement. ABS wheel speed sensor harness with female oval connectors.
Blade terminals. Five-terminal design for a secure electrical connection.
Antilock brake speed sensor harness from Standard Ignition.
Cross-references Standard Ignition ALH247, 5N0927904AE and 536248 for the same application. See all 4.
ABS Wheel Speed Sensor Harness for Tiguan
Standard Ignition ALH247 is an ABS wheel speed sensor wiring harness built for rear left applications on select Volkswagen Tiguan models. It restores the electrical connection between the wheel speed sensor and the vehicle harness, helping maintain accurate antilock brake system signal transfer.
- ABS wheel speed sensor wiring harness for brake system repair
- Female connector gender with 2 connectors
- Oval connector shape for application-specific fitment
- 5 blade terminals, female terminal design
- Contents: antilock brake speed sensor harness
- Dust shield not included
- Mounting hardware not included
Fitment Details
Compatible with 2015-2017 Volkswagen Tiguan, rear left. Compatible with 2012-2014 Volkswagen Tiguan, rear left, with automatic headlight range control. Standard Ignition ALH247 is listed for these Volkswagen Tiguan rear left applications and matches the connector and terminal configuration shown here.
This part cross-references OE-style numbers 5N0927904AE and ABH247 for the same application.
What It Helps Fix
- Intermittent ABS warning light caused by a damaged rear left sensor harness
- Wheel speed signal loss from cracked, corroded, or broken wiring
- Brake system fault codes related to the rear left ABS sensor circuit
- Electrical connection issues at the wheel speed sensor plug
- Harness damage from road debris, moisture, or suspension movement
Installation Notes
Verify connector shape, terminal count, and rear left routing before installation. Inspect the sensor, connector pins, and nearby wiring for corrosion or abrasion, and confirm the harness is secured away from moving suspension components. Standard Ignition ALH247 should be matched to the exact Volkswagen Tiguan year and equipment listing shown above.
Quality Assurance
Standard Ignition supplies replacement electrical components for automotive repair, and this harness is built to match the listed connector and terminal configuration for the specified Volkswagen Tiguan applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Volkswagen | Tiguan | FWD | Rear Left | — |
| 2016 | Volkswagen | Tiguan | FWD | Rear Left | — |
| 2015 | Volkswagen | Tiguan | FWD | Rear Left | — |
| 2014 | Volkswagen | Tiguan | FWD | Rear Left | w/ Automatic Headlight Range Control |
| 2013 | Volkswagen | Tiguan | FWD | Rear Left | w/ Automatic Headlight Range Control |
| 2012 | Volkswagen | Tiguan | FWD | Rear Left | w/ Automatic Headlight Range Control |
