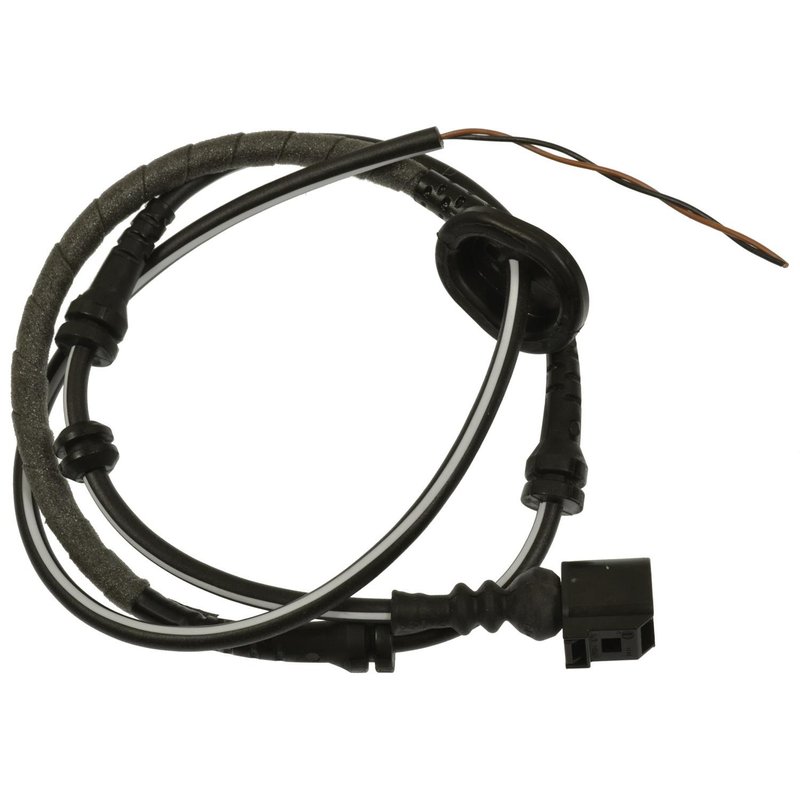

Standard Ignition ALH249 ABS Wheel Speed Sensor Wiring Harness - Rear Right
| Brand | Standard Ignition ALH249 |
|---|---|
| Position | Rear Right |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Contents | Antilock brake speed sensor harness |
| Dust Shield Included | No |
| Mounting Hardware Included | No |
| Number of Bolt Holes | 0 |
| Terminal Gender | Male; female |
| Terminal Quantity | 2 |
| Terminal Type | Wire lead, blade |
| Fits | Volkswagen · 11 vehicles |
Direct replacement. ABS wheel speed sensor harness for straightforward service.
Female oval connector. One connector with wire lead and blade terminals.
No hardware included. Contents are the antilock brake speed sensor harness.
Cross-references Standard Ignition ALH249, 1P3710 and 3C0927904AC for the same application. See all 5.
ABS Wheel Speed Sensor Harness for Rear Right
Standard Ignition ALH249 is an ABS wheel speed sensor wiring harness for the rear right position. It uses a female oval connector with wire lead and blade terminals to restore a secure electrical connection at the antilock brake speed sensor.
- Brand: Standard Ignition
- Part number: ALH249
- ABS wheel speed sensor wiring harness for brake system repair
- Female oval connector with 2 terminals
- Terminal types: wire lead and blade
- Rear right fitment for select Volkswagen applications
Fitment and Application
Compatible with 2009-2017 Volkswagen CC, rear right, and 2009-2010 Volkswagen Passat, rear right. This Standard Ignition ALH249 harness is built for vehicles that need a direct replacement for the rear right ABS sensor wiring connection. It cross-references 3C0927904AC for the same application.
What This Part Helps Address
- Intermittent ABS warning light caused by a damaged sensor harness
- Wheel speed signal loss from broken or corroded wiring
- Fault codes related to the rear right ABS sensor circuit
- Connector damage at the antilock brake speed sensor
- Electrical continuity issues in the rear brake harness
Installation Notes and Tips
Verify connector shape, terminal style, and rear right location before installation. Inspect the surrounding brake wiring, clips, and sensor connector for corrosion or physical damage so the replacement harness can make a clean electrical connection. Standard Ignition ALH249 is supplied as an ABS wheel speed sensor harness without dust shield or mounting hardware.
Quality Assurance
Standard Ignition is a recognized aftermarket source for electrical and ignition components, and ALH249 is built to match the listed connector and terminal configuration for the specified Volkswagen fitments.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Volkswagen | CC | — | — | Rear Right | — |
| 2016 | Volkswagen | CC | — | — | Rear Right | — |
| 2015 | Volkswagen | CC | — | — | Rear Right | — |
| 2014 | Volkswagen | CC | — | — | Rear Right | — |
| 2013 | Volkswagen | CC | — | — | Rear Right | — |
| 2012 | Volkswagen | CC | — | — | Rear Right | — |
| 2011 | Volkswagen | CC | — | — | Rear Right | — |
| 2010 | Volkswagen | CC | — | — | Rear Right | — |
| 2010 | Volkswagen | Passat | 3.6L | V6 | Rear Right | — |
| 2009 | Volkswagen | CC | — | — | Rear Right | — |
| 2009 | Volkswagen | Passat | 2.0L | L4 | Rear Right | — |
