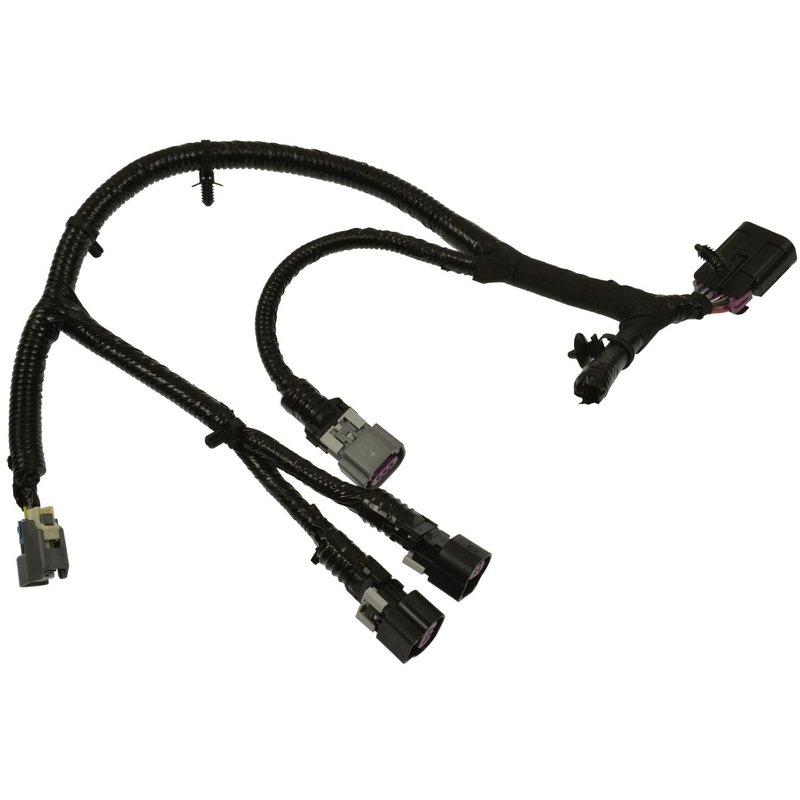

Standard Ignition ALH254 ABS Wheel Speed Sensor Wiring Harness - Front Left
| Brand | Standard Ignition ALH254 |
|---|---|
| Position | Front Left |
| Connector Gender | Male; female |
| Connector Quantity | 5 |
| Connector Shape | Oval, rectangle |
| Contents | Antilock brake speed sensor harness |
| Dust Shield Included | No |
| Mounting Hardware Included | No |
| Number of Bolt Holes | 0 |
| Terminal Gender | Male; female |
| Terminal Quantity | 19 |
| Terminal Type | Blade |
| Fits | Cadillac · 3 vehicles |
OE-quality connectors. Supports a secure, water-tight electrical connection in the brake sensor circuit.
Heat-resistant housing. Glass-reinforced plastic resin helps protect the harness in harsh conditions.
Protective sleeve. Helps prevent wire chafing and short circuits during normal routing.
Cross-references 536255, 22841383 and ABH254 for the same application. See all 3.
ABS Wheel Speed Sensor Harness Overview
Standard Ignition ALH254 is an ABS wheel speed sensor wiring harness built for direct repair of the antilock brake sensor circuit. It uses OE-quality connectors and terminals to support a secure, water-tight electrical connection and reliable routing through the chassis.
Key Features
- OE-quality connectors and terminals for consistent electrical contact
- Glass-reinforced plastic resin helps resist heat and environmental exposure
- Protective sleeve helps prevent wire chafing and short circuits
- Includes grommets and wire clips for proper harness routing
- Male and female blade terminals with oval and rectangular connectors
Detailed Product Information
This Standard Ignition ABS wheel speed sensor wiring harness is engineered for vehicles that need a dependable replacement for damaged sensor wiring. The harness construction focuses on connection integrity, abrasion resistance, and secure mounting, which supports accurate signal transfer in the brake system. Standard Ignition ALH254 is a practical choice for Cadillac SRX models when the original harness has cracked, worn, or corroded.
Fits 2012-2013 Cadillac SRX, front left, w/o adjustable suspension. Fits 2016 Cadillac SRX, front left, w/o adjustable suspension. This part cross-references Monroe Shocks & Struts (e.g., 536255, 22841383) for the same application.
Common Problems This Part Can Address
- Broken or brittle ABS sensor wiring
- Intermittent wheel speed sensor signal loss
- Chafed insulation that can lead to short circuits
- Corrosion at connector terminals
- Poor harness routing or retention in the chassis
Installation Notes and Quality Assurance
Verify connector shape, terminal style, and fitment notes before installation. Route the harness using the included grommets and wire clips to maintain proper positioning and reduce abrasion. Confirm compatibility with the vehicle's suspension configuration before ordering.
Standard Ignition supplies OE-style electrical components for repair applications, and ALH254 is built with materials and connector design intended to support accurate, durable brake sensor wiring service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Cadillac | SRX | Front Left | w/o Adjustable Suspension |
| 2013 | Cadillac | SRX | Front Left | w/o Adjustable Suspension |
| 2012 | Cadillac | SRX | Front Left | w/o Adjustable Suspension |
