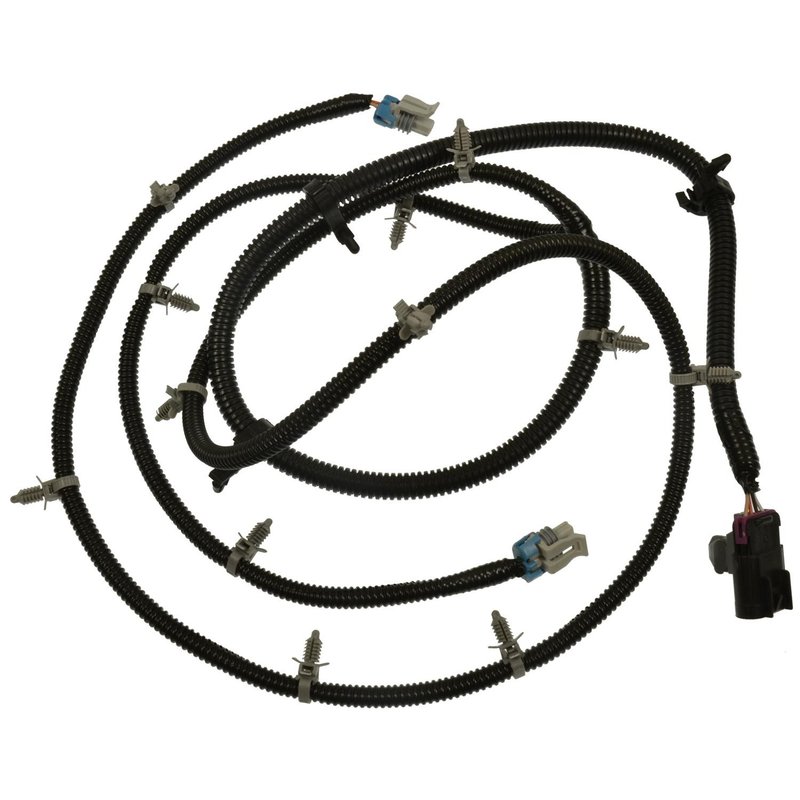

Standard Ignition ALH317 ABS Wheel Speed Sensor Wiring Harness - Rear

ABS Wheel Speed Sensor Harness for Rear Applications

Standard Ignition ALH317 is an ABS wheel speed sensor wiring harness for rear brake system service. It is built for direct replacement use on select Chevrolet Malibu, Pontiac G6, and Saturn Aura applications, with OE-style connectors and routing features that support a secure electrical connection and proper chassis mounting.

This Standard Ignition ALH317 harness uses a female connector with an oval shape and blade terminals to match the original sensor wiring layout. The harness length is 83 inches and includes grommets and wire clips for routing through the vehicle chassis. A protective sleeve helps guard the wiring from chafing, while glass-reinforced plastic resin adds resistance to heat and environmental exposure.

• OE-quality connectors and terminals for a water-tight connection to the engine wire harness
• Rear ABS wheel speed sensor wiring harness for brake system repair
• 83-inch harness length for chassis routing
• Female oval connector with blade terminals
• Includes grommets and wire clips for proper mounting and routing
• Protective sleeve helps reduce wire chafing and short-circuit risk
• Glass-reinforced plastic resin housing for heat and environmental resistance

Detailed Product Information

Standard Ignition ALH317 is a replacement ABS wheel speed sensor harness engineered for rear-position service on 2004-2008 Chevrolet Malibu with 16-inch wheels, 2005-2010 Pontiac G6, 2007-2009 Saturn Aura, and 2009-2012 Chevrolet Malibu. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. It is a practical choice when the original rear wheel speed sensor wiring is damaged, corroded, or no longer maintaining a stable signal path. Search terms such as rear ABS wheel speed sensor wiring harness for 2009-2012 Chevrolet Malibu, rear harness for 2005-2010 Pontiac G6, and rear ABS sensor harness for 2007-2009 Saturn Aura all point to this application.

Common Problems This Part Can Address

• Intermittent ABS warning light caused by damaged rear sensor wiring
• Wheel speed signal loss from broken or corroded harness connections
• Chafed wiring near the chassis or suspension area
• Water intrusion at the connector interface
• Poor routing or loose harness placement after prior repairs

Installation Notes and Tips

Inspect the rear sensor connector, wire path, and mounting points before installation. Confirm the connector shape, terminal style, and harness routing match the original part on the vehicle. Use the included grommets and wire clips to secure the harness along the chassis and keep it away from moving suspension components and sharp edges. Verify the ABS warning lamp and wheel speed data after installation.

Quality Assurance

Standard Ignition focuses on OE-style electrical service parts, and ALH317 is built with connectors, terminals, and protective materials intended to support reliable rear ABS sensor circuit repair.
