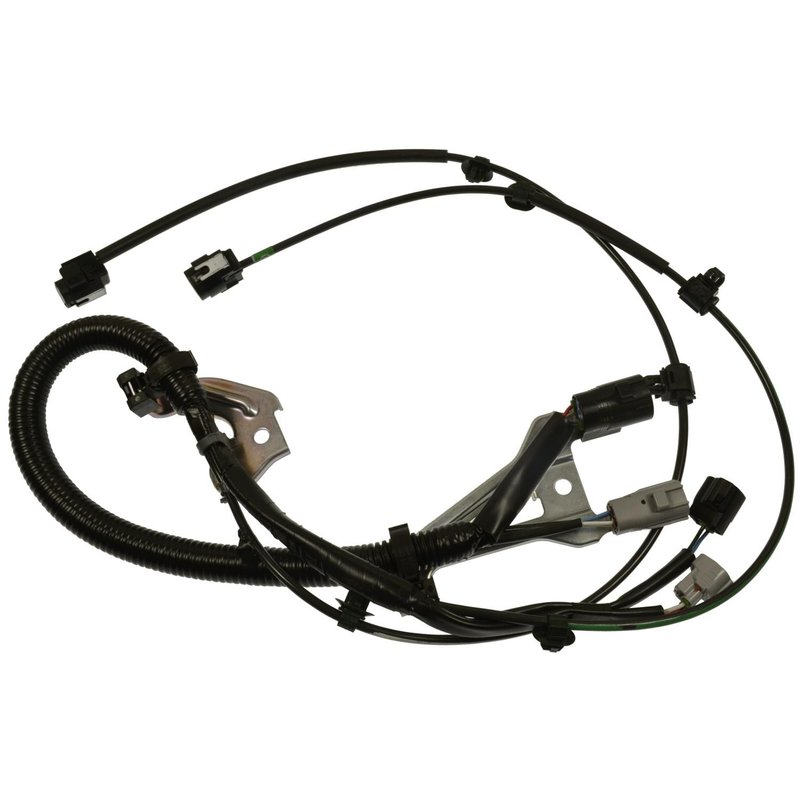

Standard Ignition ALH320 ABS Wheel Speed Sensor Wiring Harness
| Brand | Standard Ignition ALH320 |
|---|---|
| Connector Gender | Female |
| Connector Quantity | 6 |
| Connector Shape | Oval |
| Contents | Antilock brake speed sensor harness |
| Dust Shield Included | No |
| Harness Length - inches | 53" |
| Mounting Hardware Included | No |
| Number of Bolt Holes | 2 |
| Terminal Gender | Male |
| Terminal Quantity | 16 |
| Terminal Type | Blade, slide |
| Fits | Toyota · 3 vehicles |
OE direct replacement. Restores the antilock brake speed sensor harness with a factory-style fit.
Female oval connectors. Six connectors and 16 blade-and-slide terminals for secure electrical connections.
53-inch harness. Provides ample length for a clean, straightforward installation.
Cross-references Standard Ignition ALH320, 536321 and 8212704200 for the same application. See all 4.
ABS Wheel Speed Sensor Harness for Tacoma
Standard Ignition ALH320 is an ABS wheel speed sensor wiring harness for select 2016-2018 Toyota Tacoma models with the sensor located in the differential. It is built with a 53-inch harness length and OE-style connector and terminal details for direct replacement service on the brake system wiring side.
- Fits 2016-2018 Toyota Tacoma, in differential
- ABS wheel speed sensor wiring harness for brake system repair
- Female connector with 6 connector cavities
- Oval connector shape for application-specific fitment
- Male blade and slide terminals with 16 terminal positions
- 53-inch harness length for routing to the sensor location
- 2 bolt holes for mounting points
- Contents: antilock brake speed sensor harness
Detailed Product Overview
Standard Ignition ALH320 is an ABS wheel speed sensor wiring harness designed for the rear differential-mounted sensor application used on select Toyota Tacoma trucks. The harness uses a female connector, oval housing, and blade/slide terminal design to match the electrical interface required for the antilock brake system. If you are servicing a Toyota Tacoma ABS wheel speed sensor wiring issue, ALH320 provides the harness configuration needed for this specific in-differential setup. This part cross-references 8212704200 and ABH320 for the same application.
Common Problems This Part Can Address
- Broken or damaged ABS sensor wiring at the differential
- Intermittent wheel speed signal loss
- ABS warning light caused by harness failure
- Corroded or worn connector terminals
- Routing damage from vibration or road debris
Installation Notes and Tips
Verify the connector shape, terminal count, and harness routing before installation. Confirm the sensor location is in the differential and compare the original harness length and mounting points to the replacement part. Inspect nearby wiring, clips, and connector seals during service so the repaired circuit maintains a stable connection.
Quality Assurance
Standard Ignition supplies replacement electrical components for automotive repair, and ALH320 is built to match the listed connector and terminal specifications for the stated Toyota Tacoma fitment.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2018 | Toyota | Tacoma | 3.5L | V6 | In Differential |
| 2017 | Toyota | Tacoma | 3.5L | V6 | In Differential |
| 2016 | Toyota | Tacoma | 3.5L | V6 | In Differential |
