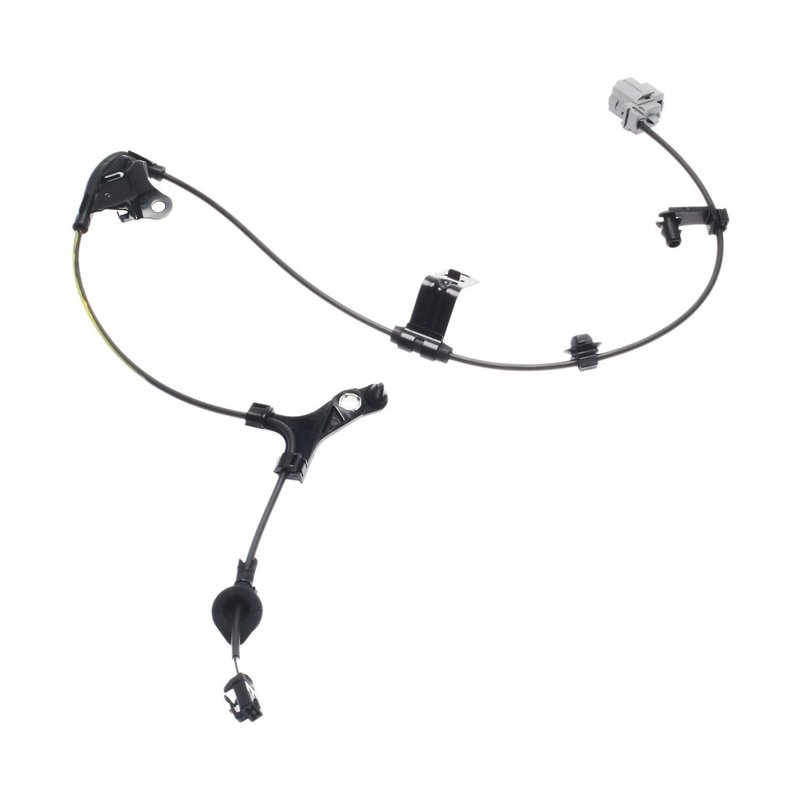

Standard Ignition ALH43 ABS Wheel Speed Sensor Wiring Harness - Rear Right
| Brand | Standard Ignition ALH43 |
|---|---|
| Position | Rear Right |
| Connector Gender | Male |
| Connector Shape | Square |
| Contents | Wiring Harness |
| Length - mm | 914 mm |
| Terminal Gender | Female |
| Terminal Type | Blade & Pin |
| Fits | Toyota · 15 vehicles |
ABS sensor harness. Restores a reliable connection for the antilock brake speed sensor.
36-inch length. Provides generous reach for a clean, straightforward installation.
Blade and pin terminals. Uses durable terminal types for a secure electrical connection.
Cross-references Beck/Arnley 084-4880, FEL-PRO 1471 and HOLSTEIN 2ABS2479 for the same application. See all 9.
ABS Wheel Speed Sensor Harness for Toyota Corolla and Matrix
Standard Ignition ALH43 is an ABS wheel speed sensor wiring harness for rear right applications on select Toyota Corolla and Toyota Matrix models. It provides the electrical connection between the wheel speed sensor and the ABS system, helping maintain accurate signal transfer for braking control.
- ABS wheel speed sensor wiring harness for rear right placement
- 36-inch harness length for routed OE-style installation
- 2 connectors with rectangle and square connector shapes
- Female and male connector genders with blade and pin terminals
- 3 bolt holes for secure mounting
- Dust shield not included
Detailed Product Overview
Built as an antilock brake speed sensor harness, Standard Ignition ALH43 is specified for rear right use on 2009-2013 Toyota Matrix and 2009-2012 Toyota Corolla, plus 2014-2019 Toyota Corolla manufactured in the United States for ABS wheel speed sensor service. The harness measures 914 mm (36 inches) and uses a two-connector layout with female-to-male and female-to-female terminal configurations to match the vehicle-side and sensor-side connections. Standard Ignition ALH43 is a direct-fit wiring harness solution for Toyota Corolla and Matrix ABS sensor repair work.
This part cross-references Beck/Arnley 084-4880 and FEL-PRO 1471 for the same application.
Common Problems This Part Can Address
- ABS warning light caused by a damaged rear wheel speed sensor harness
- Intermittent wheel speed signal loss from cracked or corroded wiring
- Brake system fault codes related to rear right sensor circuit issues
- Open or shorted wiring at the wheel hub area
- Connector damage from road debris, moisture, or vibration
Installation Notes and Tips
Verify rear right fitment against the vehicle year, model, and build origin before installation. Route the harness along the original path, confirm connector orientation, and inspect the mounting points and terminals for corrosion or damage before reconnecting the ABS system. Standard Ignition ALH43 is listed with no dust shield and no mounting hardware included.
Quality Assurance
Standard Ignition ALH43 is cataloged as an ABS wheel speed sensor wiring harness with OE-style fitment references for Toyota Corolla and Matrix rear right applications. Interchange references include Holstein 2ABS2479 and Standard Ignition ALH43.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2018 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2017 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2016 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2015 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2014 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2013 | Toyota | Matrix | FWD | Rear Right | — |
| 2012 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2012 | Toyota | Matrix | — | Rear Right | — |
| 2011 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2011 | Toyota | Matrix | — | Rear Right | — |
| 2010 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2010 | Toyota | Matrix | FWD | Rear Right | — |
| 2009 | Toyota | Corolla | — | Rear Right | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2009 | Toyota | Matrix | FWD | Rear Right | — |
