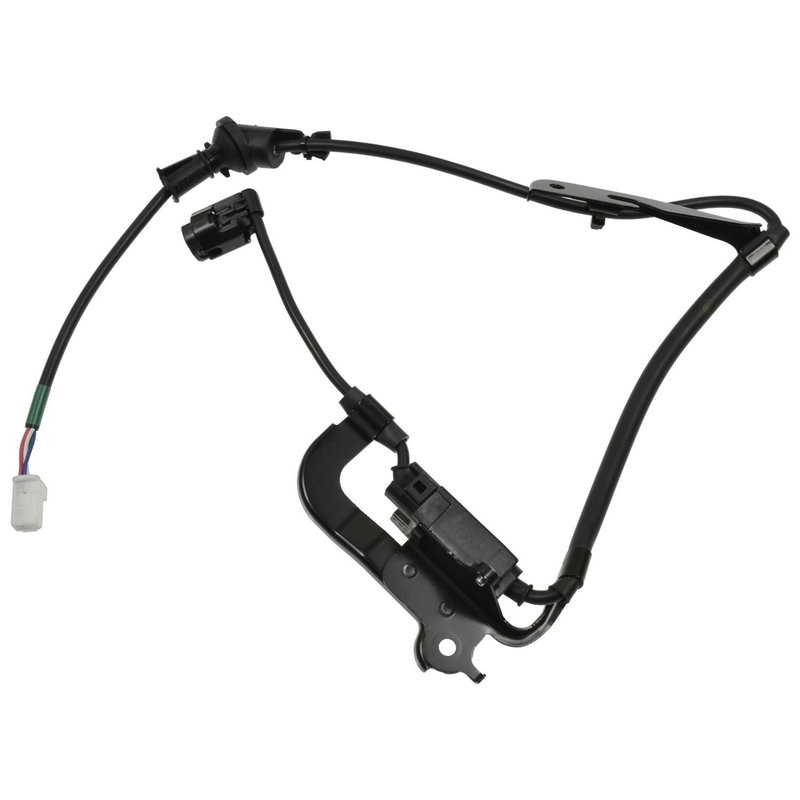

Standard Ignition ALH45 ABS Wheel Speed Sensor Wiring Harness - Rear Right

Overview of Standard Ignition ABS Wheel Speed Sensor Wiring Harness

The Standard Ignition ALH45 ABS wheel speed sensor wiring harness is designed specifically for Lexus LS460 models. This wiring harness ensures reliable communication between the ABS sensor and the vehicle’s braking system, maintaining optimal performance and safety.

• Connector Gender: Female; male; male
• Connector Quantity: 3
• Connector Shape: Oval
• Contents: Antilock brake speed sensor harness
• Length: 813 mm
• Terminal Gender: Male; female; female
• Terminal Quantity: 6
• Terminal Type: Blade; pin

Detailed Product Description

The ALH45 wiring harness from Standard Ignition is engineered to meet the specific electrical and mechanical requirements of the Lexus LS460 ABS system. Featuring three oval-shaped connectors with mixed gender configurations (female; male; male), this harness facilitates secure and precise connections. The harness length of 813 mm allows for proper routing within the vehicle’s brake system assembly. Terminals include six blade and pin types with male and female genders, ensuring compatibility with the original equipment sensor and control modules.

Compatible Vehicles and Applications

This ABS wheel speed sensor wiring harness is compatible with the Lexus LS460, providing a direct replacement for the factory-installed component. It is intended for use in the vehicle’s antilock braking system to maintain accurate wheel speed data transmission.

• Restores proper ABS sensor signal transmission
• Resolves intermittent ABS warning lights related to wiring faults
• Addresses sensor communication errors caused by damaged harnesses
• Prevents false ABS activation due to wiring issues
• Supports stable braking system performance and safety

Installation Notes and Tips

When installing the ALH45 wiring harness, ensure all connectors are securely fastened and free of corrosion or debris. Verify the correct orientation of the oval connectors and confirm terminal engagement to avoid signal loss. Route the harness away from heat sources and moving parts to prevent premature wear. It is recommended to inspect the ABS sensor and related components during installation for any additional maintenance needs.

Quality Assurance and Warranty

Standard Ignition manufactures the ALH45 wiring harness to meet OEM specifications for fit, form, and function. The product undergoes rigorous quality control to ensure durability and reliable performance in the Lexus LS460 braking system. Warranty coverage details should be confirmed with the distributor or manufacturer, typically including protection against defects in materials and workmanship.
