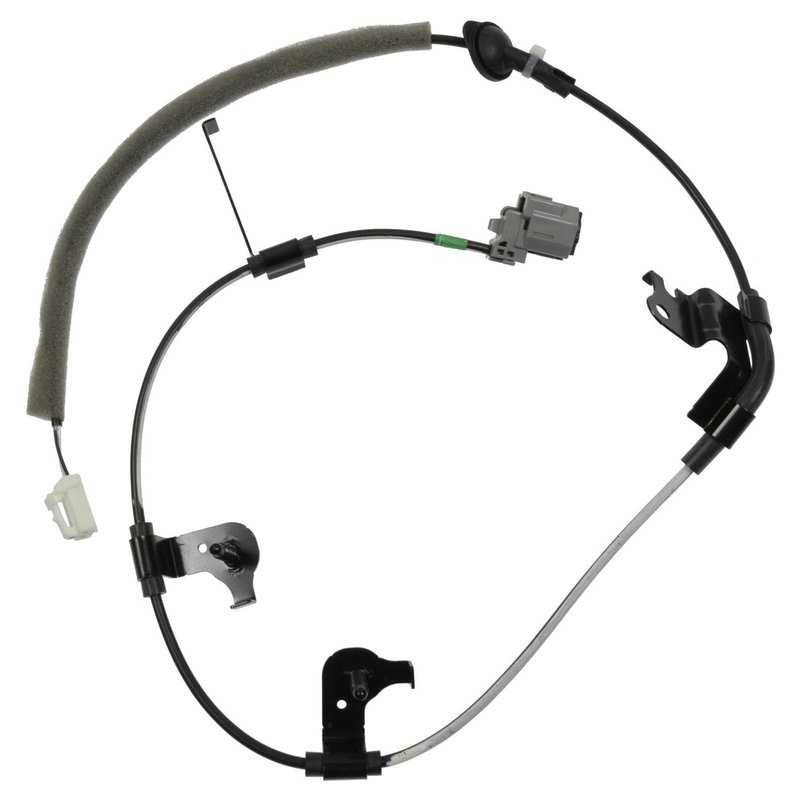

Standard Ignition ALH63 ABS Wheel Speed Sensor Wiring Harness - Rear Left

ABS Wheel Speed Sensor Harness for Toyota RAV4

Standard Ignition ALH63 is an ABS wheel speed sensor wiring harness for the rear left position on select Toyota RAV4 models. It provides the electrical connection between the antilock brake speed sensor and the vehicle harness, helping maintain a stable signal path for ABS operation.

Fits 2006-2012 Toyota RAV4, rear left. This Standard Ignition ALH63 harness is built with a 42.5-inch length and uses rectangular and square connectors with blade and pin terminals for the specified application.

Key Features

• ABS wheel speed sensor wiring harness for the rear left position
• Fits 2006-2012 Toyota RAV4, rear left
• 42.5-inch harness length; 1,077 mm overall length
• Female and male connectors with rectangular and square connector shapes
• Blade and pin terminal design with 2 bolt holes
• Contents include antilock brake speed sensor harness
• Standard Ignition ALH63 replacement part

Detailed Description

Standard Ignition ALH63 is an ABS wheel speed sensor wiring harness made for rear left Toyota RAV4 applications from 2006 through 2012. It is used to connect the antilock brake speed sensor to the vehicle wiring system, supporting the signal transfer needed by the ABS control system. The harness uses female and male connector ends, with two connectors and blade-and-pin terminals to match the listed application. If you are replacing a damaged or corroded rear left ABS sensor lead on a Toyota RAV4, ALH63 provides the correct harness configuration for the vehicle.

This part cross-references Beck/Arnley 084-4935 and HOLSTEIN 2ABS2441 for the same application. Standard Ignition ALH63 is also referenced by other aftermarket numbers including ABH63 and ARC1516.

Common Problems This Part Can Address

• ABS warning light caused by a damaged rear wheel speed sensor harness
• Intermittent wheel speed signal from a broken or corroded connector
• Sensor communication issues after harness wear near the rear suspension
• Electrical faults related to an open or shorted ABS sensor lead
• Replacement needs after physical damage to the rear left sensor wiring

Installation Notes and Tips

Verify the rear left position and connector style before installation. Inspect the sensor, connector terminals, and nearby wiring for corrosion, abrasion, or broken clips before connecting the new harness. Confirm the harness routing follows the original path so the lead has proper clearance through suspension movement.

Quality Assurance

Standard Ignition supplies replacement electrical components for automotive repair applications, and ALH63 is built to match the listed fitment and connector configuration for the specified Toyota RAV4 models.
