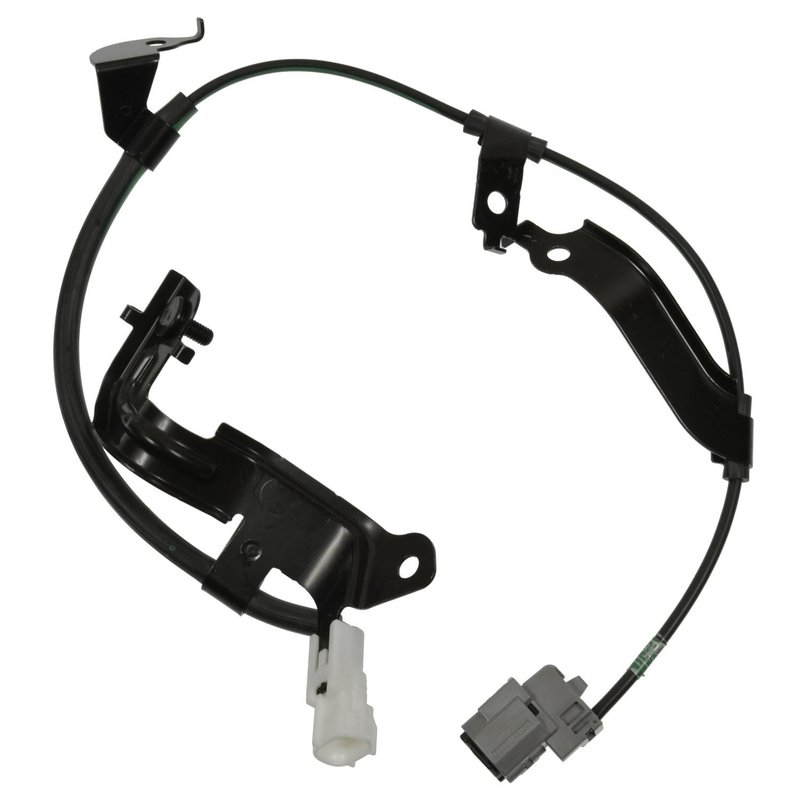

Standard Ignition ALH69 ABS Wheel Speed Sensor Wiring Harness - Rear Right

Overview of Standard Ignition ABS Wheel Speed Sensor Wiring Harness

The Standard Ignition ALH69 ABS wheel speed sensor wiring harness is designed specifically for Lexus RX350 and RX450h models. This wiring harness ensures reliable connectivity for your vehicle's ABS system, maintaining proper sensor communication and vehicle safety.

• Connector Gender: Female
• Connector Quantity: 2
• Connector Shape: Rectangular
• Wiring Harness Length: 706 mm
• Terminal Gender: Male and Female
• Terminal Quantity: 4
• Terminal Type: Blade and Pin

Detailed Product Description

The ALH69 wiring harness from Standard Ignition is engineered to meet the exact specifications required for the ABS wheel speed sensor system in Lexus RX350 and RX450h vehicles. Featuring two female rectangular connectors and a total of four terminals (both male and female), this harness provides secure and precise electrical connections. The combination of blade and pin terminal types ensures compatibility with the original equipment sensor connectors. With a length of 706 mm, the harness is designed to fit seamlessly within the vehicle’s brake system wiring layout.

Compatible Vehicles and Applications

This ABS wheel speed sensor wiring harness is compatible with the following Lexus models:

• Lexus RX350
• Lexus RX450h

It is intended for use in maintaining or repairing the ABS sensor wiring, which is critical for accurate wheel speed data transmission to the vehicle’s anti-lock braking system.

Common Issues Addressed by This Wiring Harness

• Intermittent or lost ABS sensor signal
• Damaged or corroded wiring connectors
• Faulty ABS warning light due to wiring faults
• Electrical shorts or open circuits in sensor wiring
• Improper sensor communication causing braking system errors

Installation Notes and Tips

When installing the ALH69 wiring harness, ensure the connectors are fully seated and locked to prevent disconnection. Verify the terminal types match the vehicle’s sensor terminals to avoid misalignment. Route the harness carefully to avoid contact with moving parts or heat sources. It is recommended to inspect the ABS sensor and related components during installation to confirm overall system integrity.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The ALH69 wiring harness undergoes rigorous quality control to ensure durability and reliable performance. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary.
