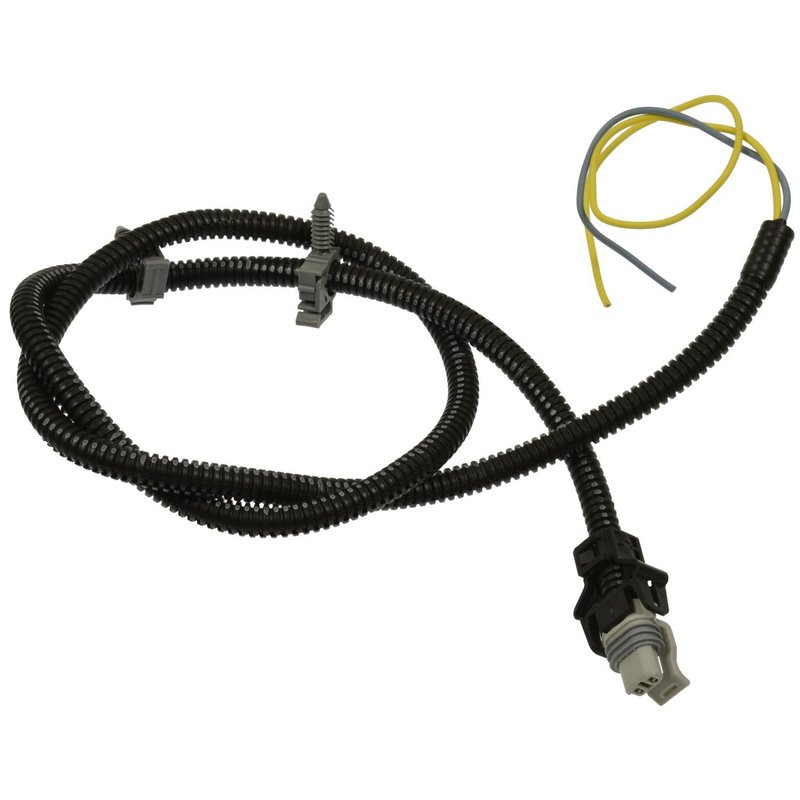

Standard Ignition ALH77 ABS Wheel Speed Sensor Wiring Harness - Front

Overview of Standard Ignition ABS Wheel Speed Sensor Wiring Harness

The Standard Ignition ALH77 ABS wheel speed sensor wiring harness is designed specifically for Chevrolet Cavalier and Pontiac Sunfire models. This wiring harness ensures reliable connection and signal transmission for the antilock brake system, maintaining vehicle safety and performance.

• Connector Gender: Male
• Connector Quantity: 1
• Terminal Gender: Female
• Terminal Quantity: 2
• Terminal Type: Alligator
• Contents: Antilock brake speed sensor harness

Detailed Product Description

The ALH77 wiring harness from Standard Ignition is engineered to provide a secure and durable connection for the ABS wheel speed sensor in Chevrolet Cavalier and Pontiac Sunfire vehicles. Featuring a male connector and two female alligator terminals, this harness facilitates proper electrical contact and signal integrity. The design supports the antilock brake system by transmitting accurate wheel speed data to the vehicle’s ABS control module, which is critical for safe braking performance.

Common Applications and Issues Addressed

• Replacement for damaged or corroded ABS wheel speed sensor wiring
• Restores proper ABS sensor signal transmission
• Eliminates intermittent ABS warning lights caused by wiring faults
• Prevents ABS system malfunctions due to poor electrical connections
• Supports maintenance of vehicle safety systems on Chevrolet Cavalier and Pontiac Sunfire

Installation Notes and Tips

• Ensure vehicle ignition is off before installation
• Verify connector orientation: male connector mates with the sensor port
• Securely attach alligator terminals to prevent loose connections
• Inspect wiring routing to avoid contact with moving parts or heat sources
• Test ABS system functionality after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The ALH77 wiring harness undergoes quality checks to ensure durability and reliable performance in Chevrolet Cavalier and Pontiac Sunfire vehicles. Warranty coverage details should be confirmed with the product documentation or manufacturer.
