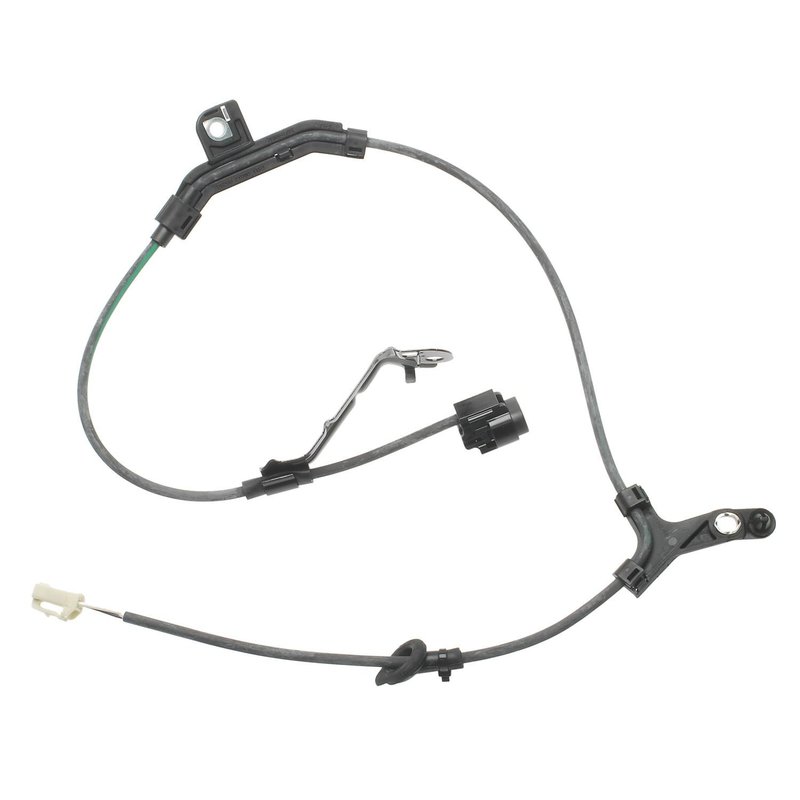

Standard Ignition ALH9 ABS Wheel Speed Sensor Wiring Harness - Rear Right

ABS Wheel Speed Sensor Wiring Harness for Scion tC

Standard Ignition ALH9 is an ABS wheel speed sensor wiring harness for the rear right position on select 2005-2010 Scion tC models. It provides the connector and terminal interface needed to restore a secure electrical connection at the wheel speed sensor.

Key Features

• Male connector gender with 2 connector points
• Female terminal gender with blade terminals
• Terminal layout: 2; 2
• Direct-fit harness for the rear right ABS wheel speed sensor location
• Standard Ignition ALH9 application-specific replacement

Detailed Description

This ABS wheel speed sensor wiring harness is built for the rear right side of 2005-2010 Scion tC vehicles. Standard Ignition ALH9 uses a male connector design with female blade terminals to maintain the electrical link between the wheel speed sensor and the vehicle harness. If you are servicing a Scion tC ABS wheel speed sensor wiring harness concern, ALH9 provides the correct connector style and position-specific fitment for the rear right corner.

This part cross-references 1492 and 536008 for the same application.

What It Helps Resolve

• Intermittent ABS warning light caused by a damaged rear right sensor harness
• Open or unstable wheel speed sensor signal at the rear right wheel
• Corrosion or terminal wear at the ABS sensor connection
• Broken connector housing or damaged blade terminal interface
• Loss of wheel speed data affecting ABS system operation

Installation Notes and Tips

Verify the rear right position before installation and compare the connector gender, terminal type, and terminal count to the original harness. Inspect the mating ABS wheel speed sensor connector and nearby wiring for corrosion, bent terminals, or abrasion before reconnecting. Confirm proper routing so the harness stays clear of suspension and rotating components.

Quality Assurance

Standard Ignition replacement electrical components are built to match application-specific connector and terminal requirements for accurate fitment. Part number ALH9 is listed for 2005-2010 Scion tC rear right applications.
