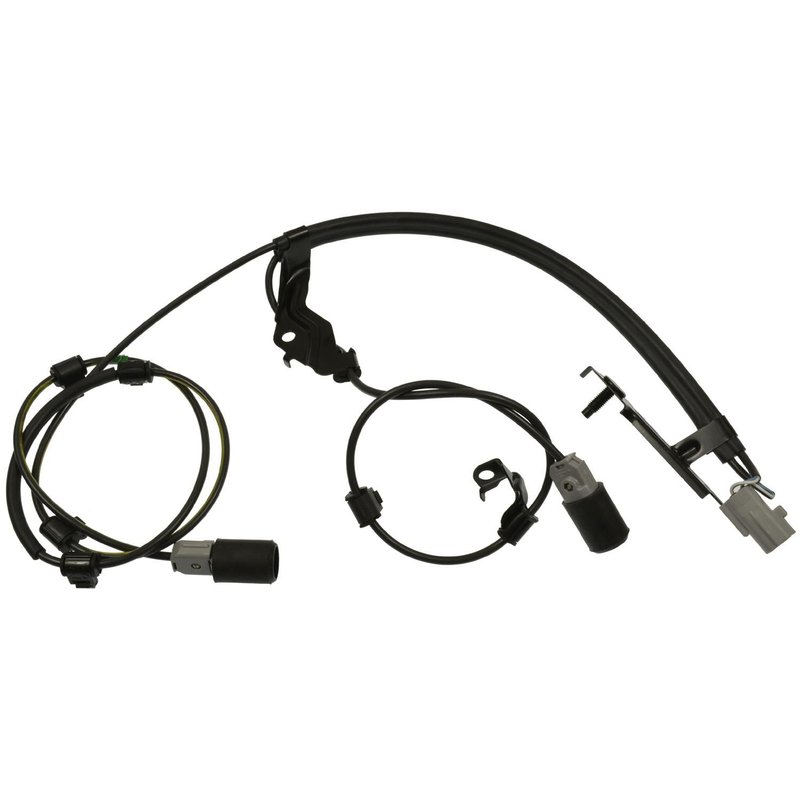

Standard Ignition ALH98 ABS Wheel Speed Sensor Wiring Harness - Rear Center

ABS Wheel Speed Sensor Harness for Toyota Tundra

Standard Ignition ALH98 is an ABS wheel speed sensor wiring harness for rear center applications on select Toyota Tundra trucks. It connects the antilock brake speed sensor circuit with the correct female and male blade-terminal interface for a secure electrical connection.

Compatible With 2005-2006 Toyota Tundra, rear center, w/o Stability Control. This Standard Ignition ALH98 harness is built for direct replacement service where the original ABS sensor lead has damaged connectors, broken terminals, or wiring faults.

Key Features

• ABS wheel speed sensor wiring harness for the rear center position
• Female connector with square shape for the harness side connection
• Male blade terminals with 4 terminal positions
• Contents: antilock brake speed sensor harness
• Direct-fit service part for select Toyota Tundra models

Detailed Description

Standard Ignition ALH98 is an antilock brake speed sensor harness used in the rear center ABS circuit on 2005-2006 Toyota Tundra models without stability control. The connector design uses a square female connector and male blade terminals to match the vehicle-side electrical interface and restore continuity in the wheel speed sensor wiring path. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. If you are searching for a Toyota Tundra rear center ABS wheel speed sensor wiring harness, ALH98 provides the specified connector configuration and fitment for the listed trucks.

Common Repair Uses

• Broken or cracked ABS sensor harness connector
• Intermittent wheel speed sensor signal at the rear center location
• ABS warning light caused by wiring damage
• Corrosion or terminal wear at the sensor connection
• Open circuit or poor contact in the antilock brake sensor lead

Installation Notes and Tips

Verify the rear center position and confirm the vehicle is a 2005-2006 Toyota Tundra without stability control before installation. Inspect the mating connector, terminals, and nearby wiring for corrosion, bent blades, or heat damage before connecting the new harness. Match the connector shape and terminal style to the original part to ensure proper engagement.

Quality Assurance

Standard Ignition supplies replacement electrical components for service applications, and ALH98 follows the listed connector and terminal specifications for the confirmed fitment.
