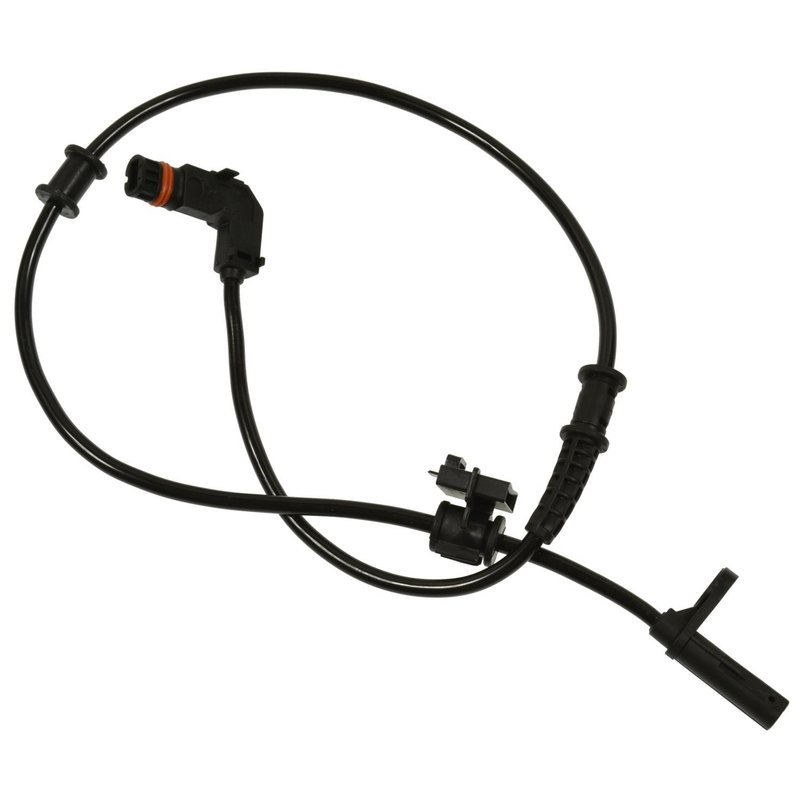

Standard Ignition ALS1130 ABS Wheel Speed Sensor - Rear Right
| Brand | Standard Ignition ALS1130 |
|---|---|
| Position | Rear Right |
| Connector Gender | Female |
| Connector Shape | Oval |
| Harness Length - inches | 30.5" |
| Harness Length - mm | 775 |
| Mounting Location | Wheel |
| Mounting Type | Bolt Mount |
| Number of Bolt Holes | 1 |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Wiring Harness Included | Yes |
| Fits | Chrysler and Dodge · 14 vehicles |
Bolt mount design. Installs securely with a single-bolt setup.
Precision performance. Engineered for accurate ABS signal delivery and durability.
Harness included. Comes with a 30.5-inch wiring harness for easier installation.
Cross-references Cardone Reman 72-6129, Dayco 71243 and Delphi SS11556 for the same application. See all 12.
ABS Wheel Speed Sensor for Rear Right Applications
Standard Ignition ALS1130 is an ABS wheel speed sensor built for rear right service on select Chrysler and Dodge vehicles. It is a direct-fit replacement for applications such as the Chrysler 300, Dodge Charger, and Dodge Magnum, with a wheel-mounted bolt-on design and included wiring harness.
Key Features
- ABS wheel speed sensor for wheel mounting
- Fits rear right positions on listed Chrysler and Dodge applications
- Female oval connector with 1 connector and 2 pin terminals
- 30.5 in. harness length for routing to the vehicle harness
- Bolt-mount design with 1 bolt hole
- Wiring harness included
- Standard Ignition part number ALS1130
Detailed Product Overview
Standard Ignition ALS1130 is engineered for precise wheel speed signal delivery, helping the ABS control system monitor wheel rotation accurately. The sensor uses a female oval connector, male pin terminals, and a 30.5-inch harness to match the original routing on the vehicle. This part number ALS1130 is listed for 2005-2008 Chrysler 300 rear right, 2007-2010 Dodge Charger rear right, 2005-2008 Dodge Magnum rear right, and 2010 Chrysler 300 rear right applications.
Standard Ignition manufactures ABS sensors with controlled production from component to finished unit, supporting consistent fit and performance across domestic and import coverage. This part cross-references Dorman - OE Solutions 695-128 for the same application.
Common Problems This Sensor Can Address
- ABS warning light caused by a failed rear wheel speed sensor
- Intermittent wheel speed signal loss
- Traction control or stability system faults tied to wheel speed input
- Brake system diagnostic trouble codes related to the rear right sensor
- Erratic ABS operation from damaged sensor wiring or connector wear
Installation Notes and Tips
Verify rear right placement before installation and compare the connector shape, terminal style, and harness length to the original sensor. Inspect the wheel hub area, tone ring, and wiring path for damage or corrosion before installing ALS1130. Clear diagnostic codes after replacement and confirm proper ABS operation during a road test.
Quality Assurance
Standard Ignition states that its ABS sensor line is produced under complete manufacturing control, from component sourcing through final assembly, to support consistent quality and service life.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Chrysler | 300 | AWD | — | — | Rear Right | — |
| 2010 | Dodge | Charger | AWD | — | — | Rear Right | — |
| 2009 | Dodge | Charger | AWD | — | — | Rear Right | — |
| 2008 | Chrysler | 300 | AWD | — | — | Rear Right | — |
| 2008 | Dodge | Charger | AWD | — | — | Rear Right | — |
| 2008 | Dodge | Magnum | AWD | — | — | Rear Right | — |
| 2007 | Chrysler | 300 | AWD | — | — | Rear Right | — |
| 2007 | Dodge | Charger | AWD | — | — | Rear Right | — |
| 2007 | Dodge | Magnum | AWD | — | — | Rear Right | — |
| 2006 | Chrysler | 300 | AWD | 3.5L | V6 | Rear Right | — |
| 2006 | Chrysler | 300 | AWD | 5.7L | V8 | Rear Right | — |
| 2006 | Dodge | Magnum | AWD | — | — | Rear Right | — |
| 2005 | Chrysler | 300 | AWD | — | — | Rear Right | — |
| 2005 | Dodge | Magnum | AWD | — | — | Rear Right | — |
