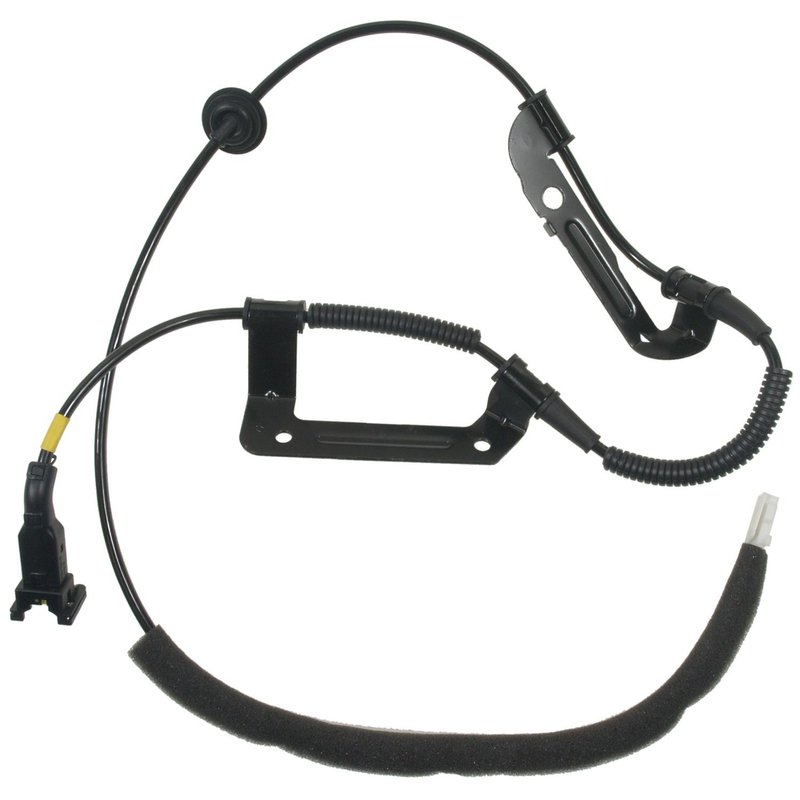

Standard Ignition ALS1293 ABS Wheel Speed Sensor Wiring Harness - Rear Right

ABS Wheel Speed Sensor Harness for Hyundai Santa Fe

Standard Ignition ALS1293 is an ABS wheel speed sensor wiring harness for the rear right wheel position. It is built with a 4-terminal layout, two connectors, male connector gender, female terminal gender, and blade-style terminals for a direct electrical interface.

Compatible with 2006-2012 Hyundai Santa Fe rear right applications, this harness supports the wheel-speed signal path used by the ABS system. Standard Ignition ALS1293 is a direct-fit service part for Hyundai Santa Fe brake system wiring repairs.

Key Features

• ABS wheel speed sensor wiring harness for the rear right wheel
• 4-terminal design with blade terminals
• 2 connectors for the sensor-side and vehicle-side connection points
• Male connector gender with female terminal gender
• Fits 2006-2012 Hyundai Santa Fe, rear right
• Standard Ignition ALS1293 for service replacement use

Detailed Description

This ABS wheel speed sensor wiring harness routes the electrical connection between the wheel speed sensor and the vehicle harness at the rear right wheel. On 2006-2012 Hyundai Santa Fe models, the harness helps maintain a stable signal path for the ABS control system, which relies on accurate wheel-speed input for braking performance and system monitoring. Standard Ignition ALS1293 is specified for the rear right position and uses blade-style terminals with a 4-terminal, 2-connector configuration.

This part cross-references Beck/Arnley 084-4948 and Hitachi Automotive ABS1403 for the same application. Standard Ignition ALS1293 is also referenced by interchange numbers used in the aftermarket for this Hyundai Santa Fe rear right fitment.

What It Is Used For

• Repairing a damaged ABS wheel speed sensor harness at the rear right wheel
• Restoring wheel-speed signal continuity to the ABS module
• Addressing intermittent ABS warning light concerns caused by wiring faults
• Replacing corroded, broken, or heat-damaged sensor wiring
• Correcting sensor communication issues on 2006-2012 Hyundai Santa Fe models

Installation Notes and Tips

Verify the rear right position before installation and compare the connector style, terminal count, and terminal gender to the original harness. Inspect the sensor connector, wheel-area routing, and nearby clips or retainers for damage before connecting the new harness. Confirm secure engagement at both connectors and check for proper wire routing away from moving suspension components.

Quality Assurance

Standard Ignition supplies replacement electrical components for automotive service applications, and ALS1293 follows the listed fitment and connector specifications for the 2006-2012 Hyundai Santa Fe rear right position.
