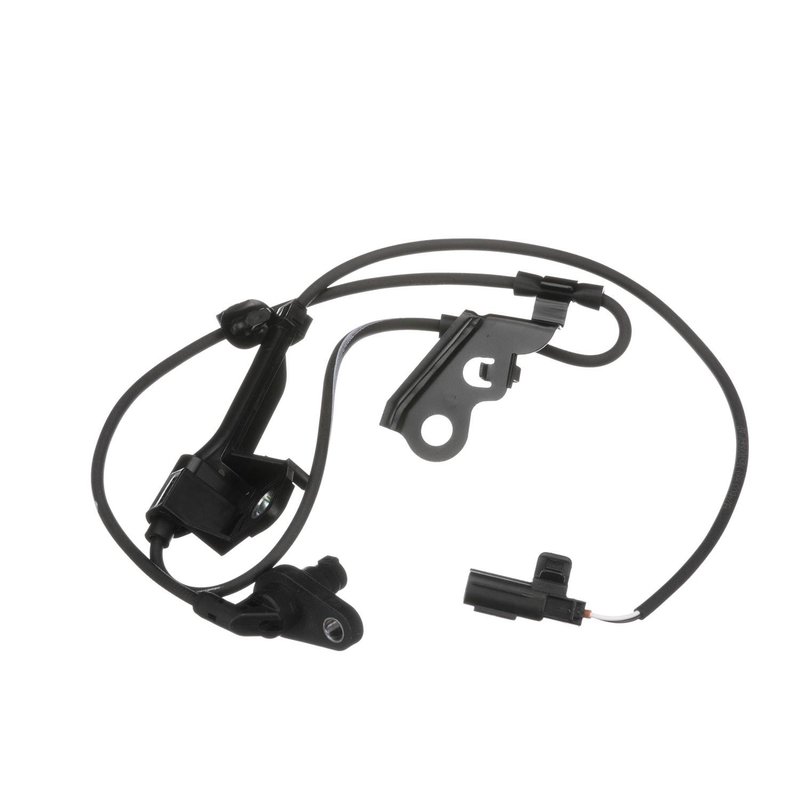

Standard Ignition ALS2315 ABS Wheel Speed Sensor - Front Left
| Brand | Standard Ignition 3733 |
|---|---|
| Design | Direct Drive |
| Mounting Bolts Included | No |
| Mounting Shims Included | Yes |
| Nose Cone Type | Closed |
| Number Of Pinion Teeth | 9 |
| OE Manufacturer | Delco/Delphi |
| Overcrank Protection | No |
| Power Rating | 1.4 |
| Rotation Direction | Clockwise |
| Series | 10MT |
| Solenoid Attached | Yes |
| Starter Drive Included | Yes |
| Voltage (V) | 12 |
| Fits | —18 vehicles |
OE replacement. Matches original equipment fit and function.
Wiring harness included. Ready for a cleaner, simpler installation.
Flange mount design. Securely attaches with a three-bolt pattern.
Cross-references ATP 101004, Autotecnica TY1119456 and Beck/Arnley 084-4825 for the same application. See all 19.
ABS Wheel Speed Sensor for Toyota Corolla and Matrix
Standard Ignition ALS2315 is an OE replacement ABS wheel speed sensor for the front left position on select Toyota Corolla, Toyota Matrix, and Pontiac Vibe applications. It includes a 41-inch wiring harness and a square female connector for direct replacement of the original sensor assembly.
Key Features
- ABS wheel speed sensor for the front left spindle location
- OE replacement design for factory-style fit and function
- 41-inch harness included for routing to the vehicle connection point
- Square connector with 2 terminals, female connector gender, and male terminal gender
- Flange mounting type with 3 bolt holes
- Standard Ignition ALS2315 for select Toyota Corolla, Toyota Matrix, and Pontiac Vibe models
Detailed Description
Standard Ignition ALS2315 is built for front left ABS sensor replacement on 2009-2019 Toyota Corolla, 2009-2013 Toyota Matrix, and 2009-2010 Pontiac Vibe applications listed below. This ABS wheel speed sensor monitors wheel rotation data for the anti-lock brake system, helping the vehicle control module read wheel speed accurately during braking events. The OE replacement construction supports a direct-style repair on spindle-mounted front left installations, and the included harness simplifies connection to the vehicle-side circuit. This part cross-references Delphi SS11662 for the same application.
Vehicle Fitment
- Fits 2019 Toyota Corolla, Front Left
- Fits 2013-2014 Toyota Corolla, Front Left
- Fits 2015-2018 Toyota Corolla, Front Left, Includes ABS Wheel Speed Sensor Wire Harness; Built In U.S.
- Fits 2011-2012 Toyota Corolla, Front Left, Includes ABS Wheel Speed Sensor Wire Harness; Built In U.S.
- Fits 2009-2013 Toyota Matrix, Front Left
- Fits 2009-2010 Pontiac Vibe, Front Left, Prior to purchase, ensure compatibility with vehicle's alternator for proper fit.
- Fits 2009-2010 Toyota Corolla, Front Left, Manufactured in the United States for ABS Wheel Speed Sensor.
Common Repair Symptoms
- ABS warning light illuminated on the dash
- Wheel speed signal loss at the front left corner
- ABS system fault codes related to sensor input
- Erratic or inconsistent braking system feedback
- Sensor damage from road debris, corrosion, or harness wear
Installation Notes and Tips
Verify the front left spindle mounting location, connector shape, terminal count, and harness routing before installation. Inspect the tone ring, connector terminals, and nearby wiring for damage or corrosion before replacing the sensor. Confirm exact vehicle application by year, make, model, and position for Toyota Corolla, Toyota Matrix, and Pontiac Vibe fitment.
Quality Assurance
Standard Ignition supplies OE replacement electrical and sensor components for service repairs that require factory-style fit and dependable signal transfer. ALS2315 is built to match the listed application details for direct replacement use.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Toyota | Corolla | Front Left | — |
| 2018 | Toyota | Corolla | Front Left | Includes ABS Wheel Speed Sensor Wire Harness; Built In U.S. |
| 2017 | Toyota | Corolla | Front Left | Includes ABS Wheel Speed Sensor Wire Harness; Built In U.S. |
| 2016 | Toyota | Corolla | Front Left | Includes ABS Wheel Speed Sensor Wire Harness; Built In U.S. |
| 2015 | Toyota | Corolla | Front Left | Includes ABS Wheel Speed Sensor Wire Harness; Built In U.S. |
| 2014 | Toyota | Corolla | Front Left | — |
| 2013 | Toyota | Corolla | Front Left | — |
| 2013 | Toyota | Matrix | Front Left | — |
| 2012 | Toyota | Corolla | Front Left | Includes ABS Wheel Speed Sensor Wire Harness; Built In U.S. |
| 2012 | Toyota | Matrix | Front Left | — |
| 2011 | Toyota | Corolla | Front Left | Includes ABS Wheel Speed Sensor Wire Harness; Built In U.S. |
| 2011 | Toyota | Matrix | Front Left | — |
| 2010 | Pontiac | Vibe | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2010 | Toyota | Corolla | Front Left | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2010 | Toyota | Matrix | Front Left | — |
| 2009 | Pontiac | Vibe | Front Left | Prior to purchase, ensure compatibility with vehicle's alternator for proper fit. |
| 2009 | Toyota | Corolla | Front Left | Manufactured in the United States for ABS Wheel Speed Sensor. |
| 2009 | Toyota | Matrix | Front Left | — |
| No rows match your filter. | ||||
