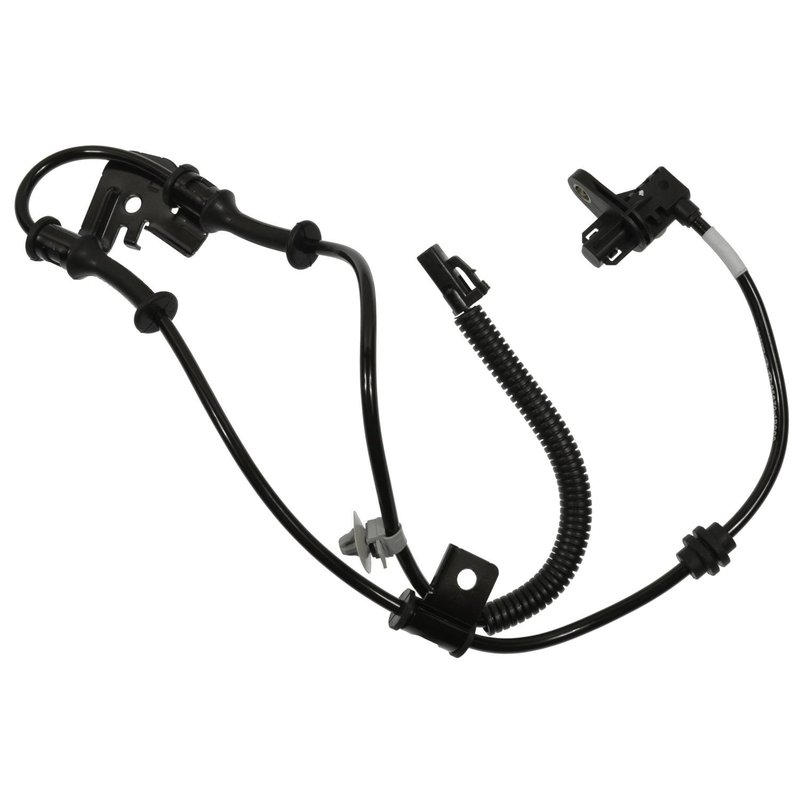

Standard Ignition ALS2330 Vehicle Speed Sensor - Front Left

OE Replacement Vehicle Speed Sensor

The Standard Ignition ALS2330 is an OE replacement vehicle speed sensor wire harness assembly for front-left ABS applications. It is built with a rectangular 1-connector design, a 2-terminal blade interface, and a 37-inch harness to match the original routing on supported vehicles.

Fits 2012-2017 Hyundai Accent, front left. Fits 2012-2014 Dodge Attitude, front left. This part cross-references Beck/Arnley 084-5037 for the same application.

Key Features

• Standard Ignition ALS2330 OE replacement sensor harness
• Vehicle speed sensor application for spindle-mounted ABS wheel speed sensing
• Male connector with female terminals for direct-style electrical connection
• Rectangular 1-connector layout with 2 terminals
• 37-inch harness length for factory-style routing
• Bolt-mount design with 3 bolt holes
• Wiring harness included for installation on supported applications

Detailed Description

The ALS2330 is a Standard Ignition vehicle speed sensor assembly engineered as an OE-style replacement for front-left wheel speed sensing on select Hyundai Accent and Dodge Attitude models. It mounts at the spindle and uses a bolt-mount configuration to follow the original sensor location and harness path. The included wiring harness, rectangular connector, and blade terminals support a direct replacement for damaged, corroded, or intermittent ABS wheel speed sensor wiring.

For 2012-2017 Hyundai Accent front-left ABS wheel speed sensor service and 2012-2014 Dodge Attitude front-left applications, the ALS2330 provides the correct connector style and harness length for a factory-like repair. The Standard Ignition ALS2330 is also listed with OE replacement status, making it a practical choice when restoring wheel speed signal integrity.

What It Helps Fix

• ABS warning light caused by a failed front-left wheel speed sensor harness
• Intermittent wheel speed signal loss from damaged wiring
• Corrosion or connector damage at the spindle-mounted sensor connection
• Open circuit or poor terminal contact in the ABS sensor lead
• Harness routing issues after suspension or brake service

Installation Notes

Verify connector shape, terminal count, mounting location, and harness length before installation. This sensor uses a spindle-mounted, bolt-mount design with 3 bolt holes and a 37-inch harness, so routing should follow the original path to avoid tension or abrasion. Confirm the vehicle is equipped with the front-left ABS wheel speed sensor configuration shown in the fitment data before replacing the part.

Quality Assurance

Standard Ignition supplies OE replacement electrical components for repair applications that require factory-style fit and connection details. The ALS2330 is built to match the listed connector and mounting specifications for supported Hyundai Accent and Dodge Attitude vehicles.
