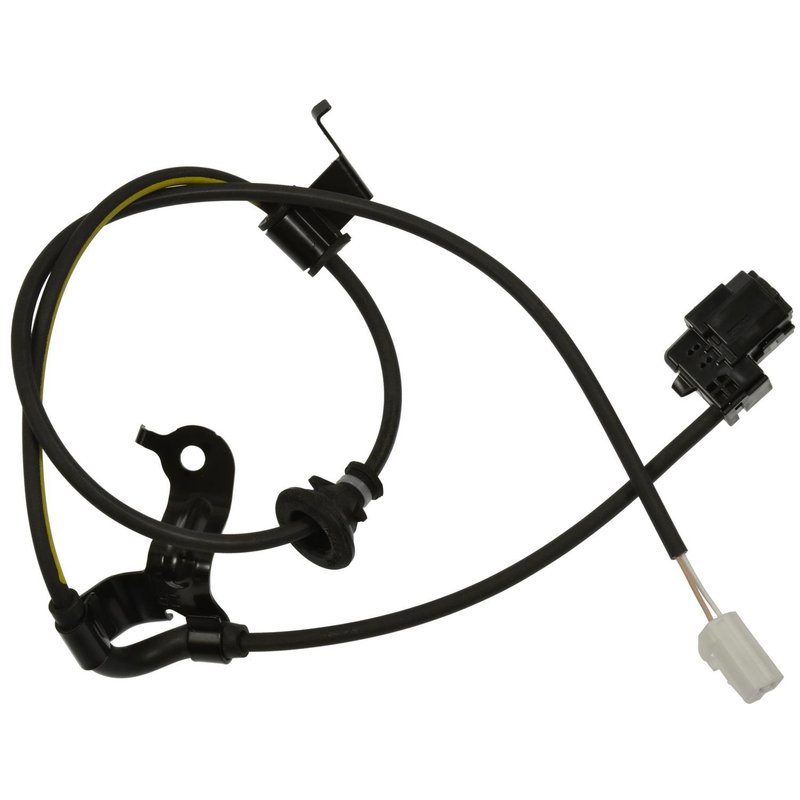

Standard Ignition ALS2518 ABS Wheel Speed Sensor Wiring Harness - Rear Right
| Brand | Standard Ignition ALS2518 |
|---|---|
| Position | Rear Right |
| Connector Gender | Female; Male |
| Connector Shape | Square |
| Harness Length - inches | 36 |
| Harness Length - mm | 914 mm |
| Mounting Location | Wheel |
| Mounting Type | Bolt Mount |
| Number of Bolt Holes | 1 |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Scion · 10 vehicles |
Bolt-mount design. Securely fastens with a single bolt hole for a stable installation.
Square connector. One male-female connector with blade terminals for a straightforward hookup.
Wheel sensor harness. Built as an ABS wheel speed sensor wiring harness for brake system use.
Cross-references OSC 1489, Standard Ignition ALS2518 and 532888 for the same application. See all 5.
ABS Wheel Speed Sensor Harness for Rear Right
Standard Ignition ALS2518 is an ABS wheel speed sensor wiring harness for the rear right wheel position. It uses a 2-terminal, male/female connector layout with a square 1-connector design and a 36-inch harness length for direct routing at the wheel.
- ABS wheel speed sensor wiring harness for wheel-mounted applications
- Fits rear right position on select Scion xD and Toyota Yaris models
- 2 terminals with male/female connector gender and blade terminals
- Square connector shape with 1 bolt-mount location and 1 bolt hole
- 36 in. harness length, equal to 914 mm
Fitment Details
Compatible with 2009-2014 Scion xD, rear right; 2010-2012 Toyota Yaris, rear right; and 2009 Toyota Yaris, rear right from 5/09. Standard Ignition ALS2518 is a direct-fit wiring harness for the rear right ABS wheel speed sensor location on these applications. If you are searching for a rear right ABS sensor harness for a Scion xD or Toyota Yaris, ALS2518 matches the listed vehicle coverage.
This part cross-references OSC 1489 for the same application.
Common Problems It Can Address
- Broken or damaged ABS wheel speed sensor wiring at the rear right wheel
- Intermittent ABS warning light caused by wiring continuity issues
- Connector damage at the wheel-side sensor connection
- Harness routing problems from wear, corrosion, or road debris exposure
- Faulty sensor signal transfer between the wheel speed sensor and vehicle harness
Installation Notes
Install at the wheel-mounted rear right location and verify the connector orientation before securing the harness. Confirm the bolt-mount point aligns with the existing mounting location and inspect the surrounding wiring for abrasion, corrosion, or damaged terminals before final connection. Match the vehicle build date for the 2009 Toyota Yaris application noted from 5/09.
Quality Assurance
Standard Ignition supplies replacement electrical components for automotive repair applications, and ALS2518 is built to match the listed connector style, terminal layout, and fitment coverage for the specified Scion xD and Toyota Yaris models.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Scion | xD | — | Rear Right | — |
| 2013 | Scion | xD | — | Rear Right | — |
| 2012 | Scion | xD | — | Rear Right | — |
| 2012 | Toyota | Yaris | Sedan | Rear Right | — |
| 2011 | Scion | xD | — | Rear Right | — |
| 2011 | Toyota | Yaris | — | Rear Right | — |
| 2010 | Scion | xD | — | Rear Right | — |
| 2010 | Toyota | Yaris | — | Rear Right | — |
| 2009 | Scion | xD | — | Rear Right | — |
| 2009 | Toyota | Yaris | — | Rear Right | From 5/09 |
