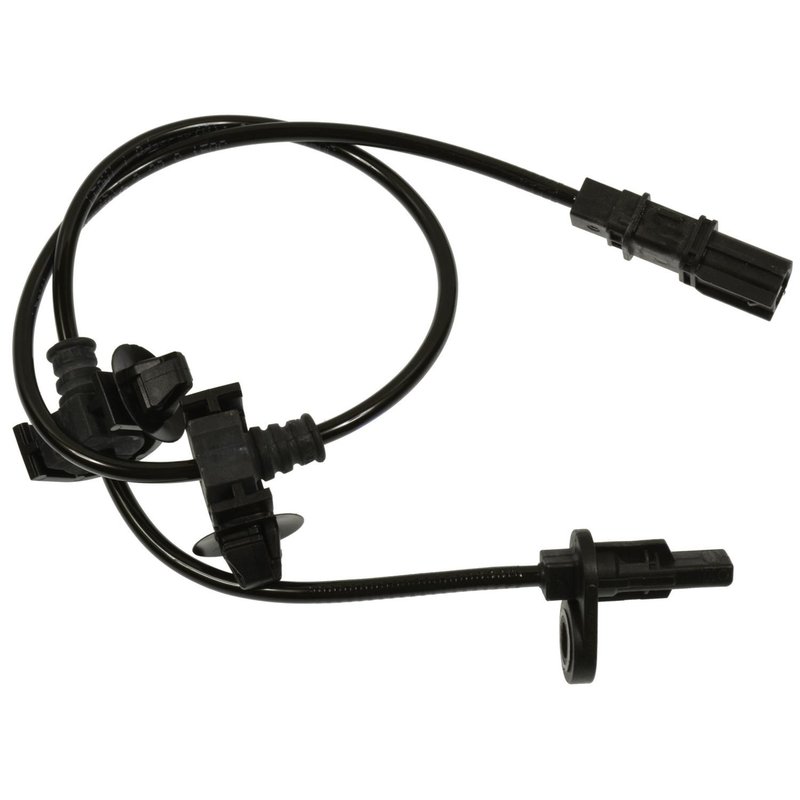

Standard Ignition ALS2541 Tire Pressure Monitoring System Sensor - Rear Left
| Brand | Standard Ignition ALS2541 |
|---|---|
| Position | Rear Left |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Harness Length - inches | 25 |
| Harness Length - mm | 635 |
| Mounting Location | Wheel |
| Mounting Type | Bolt Mount |
| Number of Bolt Holes | 1 |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Wiring Harness Included | Yes |
| Fits | Honda · 4 vehicles |
Bolt-mount design. Installs securely with a single bolt hole.
Wiring harness included. Comes ready for a cleaner, simpler connection.
Wheel sensor. Built for tire pressure monitoring system use.
Cross-references Beck/Arnley 084-5129, Dayco 72381 and Delphi SS21425 for the same application. See all 11.
Standard Ignition ALS2541 TPMS Sensor for Honda Civic
Standard Ignition ALS2541 is a tire pressure monitoring system sensor built for rear left wheel applications on select Honda Civic models. It is a bolt-mount TPMS sensor with a rectangular 1-connector harness layout, making it a direct-fit option for service work on the wheel-end monitoring system.
Compatible with 2013-2015 Honda Civic rear left applications, this Standard Ignition TPMS sensor supports factory-style replacement needs without requiring programming. For 2015 Honda Civic rear left service, install the sensor and follow the OEM factory relearn procedure.
Key Features
- Part number ALS2541 for TPMS service on select Honda Civic rear left positions
- Bolt-mount design for wheel installation
- Includes a wiring harness with a 25-inch length
- Female connector with 1 rectangular connector and 2 terminals
- Pin-style terminal design for sensor connection
- Direct fit for 2013-2015 Honda Civic rear left applications
Detailed Description
Standard Ignition ALS2541 is a tire pressure monitoring system sensor intended for wheel-mounted replacement on the rear left position of select Honda Civic vehicles. The sensor uses a bolt-mount configuration and a single rectangular connector, with a 25-inch harness to support the vehicle-side connection. This makes it a practical choice when servicing the TPMS system on a Honda Civic and restoring proper tire pressure monitoring function.
This part cross-references Beck/Arnley 084-5129 for the same application. Standard Ignition ALS2541 is also referenced by interchange numbers commonly associated with the same rear left Honda Civic TPMS service need.
What It Is Used For
- Replacing a failed TPMS sensor on a Honda Civic rear left wheel
- Addressing TPMS warning light concerns caused by sensor malfunction
- Restoring tire pressure data transmission to the vehicle monitoring system
- Servicing a damaged wheel-mounted sensor during tire or wheel work
- Supporting factory relearn procedures after sensor installation
Installation Notes and Tips
Fits 2015 Honda Civic, rear left. Fits 2013-2015 Honda Civic, rear left. Install the sensor at the wheel location and follow the OEM factory relearn procedure; no programming is required. Verify connector style, mounting type, and position before installation to confirm the correct rear left application.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for electrical and sensor components, and ALS2541 is built to match the specified TPMS application details for select Honda Civic models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Honda | Civic | Rear Left | Install sensor and follow OEM factory relearn procedure, no programming required. |
| 2015 | Honda | Civic | Rear Left | — |
| 2014 | Honda | Civic | Rear Left | — |
| 2013 | Honda | Civic | Rear Left | — |
| No rows match your filter. | ||||
