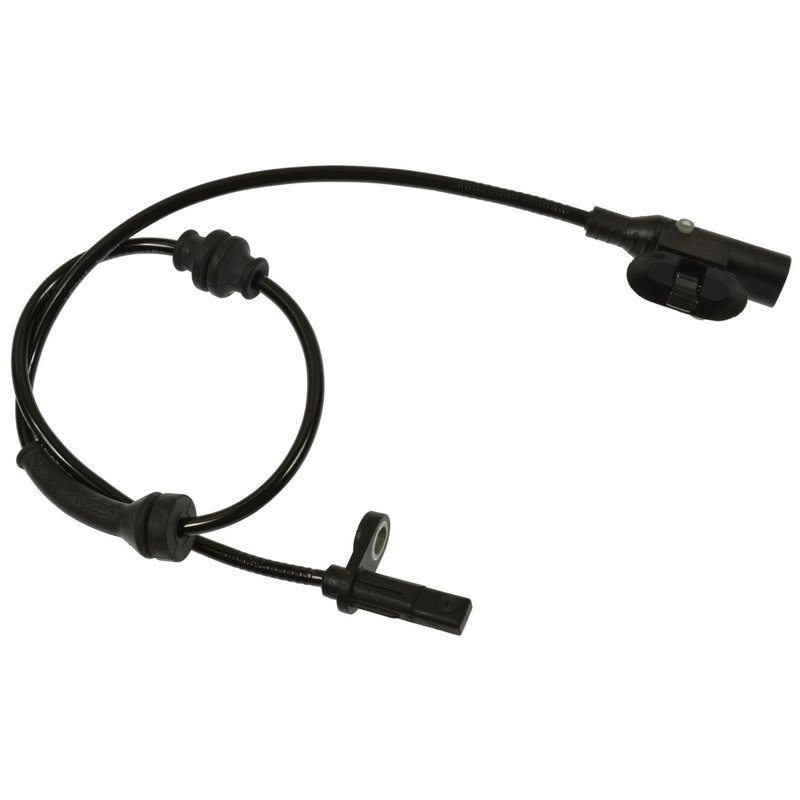

Standard Ignition ALS2812 ABS Wheel Speed Sensor - Rear
| Brand | Standard Ignition ALS2812 |
|---|---|
| Position | Rear |
| Connector Gender | Female |
| Connector Shape | Oval |
| Harness Length - inches | 23.5" |
| Harness Length - mm | 590 |
| Mounting Location | Wheel |
| Mounting Type | Bolt Mount |
| Number of Bolt Holes | 1 |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Fits | Dodge · 1 vehicle |
Bolt mount design. Installs securely with a single-bolt mounting setup.
Precision performance. Engineered for accurate ABS sensor operation.
Quality materials. Built for durability and long service life.
Cross-references Dayco 72502, 2ABS3186 and 5S13954 for the same application. See all 8.
ABS Wheel Speed Sensor for Rear Dodge Dart
Standard Ignition ALS2812 is a rear ABS wheel speed sensor for the 2013 Dodge Dart. It is built with a female oval connector, bolt-mount installation, and a 23.5-inch harness for a direct replacement on the rear wheel position.
Key Features
- ABS wheel speed sensor for rear wheel mounting
- Standard Ignition ALS2812 part number
- Female oval connector with male pin terminals
- Bolt-mount design with one bolt hole
- 23.5-inch harness length for routing at the wheel
- Engineered for precise wheel speed signal performance
- Built with materials selected for durability and service life
Detailed Description
Standard Ignition ALS2812 is an ABS wheel speed sensor made for the rear position on the 2013 Dodge Dart. It uses a female oval connector, two male pin terminals, and a bolt-mount design to match the original sensor style at the wheel. The 23.5-inch harness provides the needed reach for rear wheel routing, and the sensor is manufactured under controlled quality processes to support consistent output and long-term use. If you are replacing a failed rear ABS sensor on a 2013 Dodge Dart, ALS2812 is the direct-fit part number to reference. This part cross-references Dayco 72502 for the same application.
Common Problems This Part Can Address
- ABS warning light caused by a failed rear wheel speed sensor
- Loss of wheel speed signal at the rear wheel
- Erratic ABS system behavior from sensor signal interruption
- Diagnostic trouble codes related to rear ABS sensor performance
- Brake system warning concerns tied to wheel speed input
Installation Notes and Tips
Verify the connector shape, terminal style, mounting location, and harness length before installation. For the 2013 Dodge Dart rear application, route the harness away from moving suspension and wheel components, and confirm the bolt-mount sensor seats fully at the wheel. Inspect the connector and tone ring area for corrosion, debris, or damage before final assembly.
Quality Assurance
Standard Ignition manufactures ABS sensors with controlled quality processes and materials selected for durability and accurate performance. ALS2812 is part of a catalog of more than 1,500 ABS sensors covering domestic and import applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Dodge | Dart | Rear | — |
