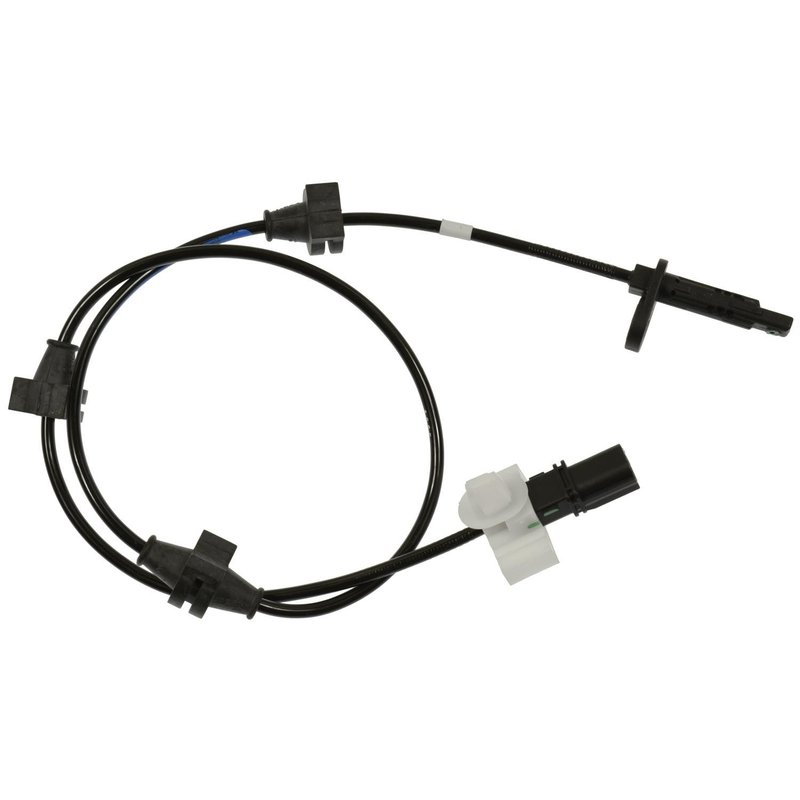

Standard Ignition ALS3009 ABS Wheel Speed Sensor - Rear Left
| Brand | Standard Ignition ALS3009 |
|---|---|
| Position | Rear Left |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Harness Length - inches | 33 |
| Harness Length - mm | 830 |
| Mounting Location | Wheel |
| Mounting Type | Bolt Mount |
| Number of Bolt Holes | 1 |
| Terminal Gender | Female |
| Terminal Type | Pin |
| Fits | Honda · 19 vehicles |
Bolt-mount design. Installs securely with a single bolt hole.
Wheel speed sensing. Monitors wheel rotation for ABS system input.
Rectangular connector. Uses a female 1-pin connection for a clean hookup.
Cross-references Beck/Arnley 084-5029, HOLSTEIN 2ABS2969 and Standard Ignition ALS3009 for the same application. See all 8.
ABS Wheel Speed Sensor for Honda and Acura
Standard Ignition ALS3009 is an ABS wheel speed sensor for rear left wheel applications on select Honda and Acura vehicles. It uses a 2-terminal, female connector design with a rectangular 1-connector layout and a 33-inch harness for wheel-mounted, bolt-mount installation.
Key Features
- ABS wheel speed sensor for rear left wheel position
- Fits 2019-2022 Honda Passport, rear left
- Fits 2016-2022 Honda Pilot, rear left
- Fits 2017-2020 Honda Ridgeline, rear left
- Fits 2022 Honda Ridgeline, rear left
- Fits 2014-2016 Acura MDX, rear left
- 2-terminal female connector with rectangular housing
- 33-inch (830 mm) harness length for wheel-mounted routing
- Bolt-mount design with one bolt hole
Detailed Description
Standard Ignition ALS3009 is built for rear left ABS wheel speed sensor replacement on select Honda Passport, Honda Pilot, Honda Ridgeline, and Acura MDX applications. The sensor features a female connector, pin terminals, and a wheel mounting location with bolt-mount attachment, helping restore accurate wheel speed signal input to the ABS system. This part cross-references Beck/Arnley 084-5029 for the same application.
What It Helps Address
- ABS warning light caused by a failed rear wheel speed sensor
- Loss of wheel speed signal to the ABS control system
- Traction control or stability system fault codes tied to wheel speed input
- Intermittent ABS operation from damaged sensor wiring or connector issues
- Brake system warning concerns related to rear left sensor performance
Installation Notes and Tips
Verify rear left fitment by year, make, and model before installation. Inspect the wheel-end connector, mounting point, and harness routing for corrosion, damage, or debris before transferring the new sensor into place. Confirm the 2-terminal female connector and bolt-mount style match the original part on the vehicle.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for electrical and sensor components. ALS3009 is specified with application-based fitment for select Honda and Acura models, including 2019-2022 Honda Passport, 2016-2022 Honda Pilot, 2017-2020 Honda Ridgeline, 2022 Honda Ridgeline, and 2014-2016 Acura MDX, rear left.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Honda | Passport | FWD | Rear Left | — |
| 2022 | Honda | Pilot | FWD | Rear Left | — |
| 2022 | Honda | Ridgeline | FWD | Rear Left | — |
| 2021 | Honda | Passport | FWD | Rear Left | — |
| 2021 | Honda | Pilot | FWD | Rear Left | — |
| 2020 | Honda | Passport | FWD | Rear Left | — |
| 2020 | Honda | Pilot | FWD | Rear Left | — |
| 2020 | Honda | Ridgeline | FWD | Rear Left | — |
| 2019 | Honda | Passport | FWD | Rear Left | — |
| 2019 | Honda | Pilot | FWD | Rear Left | — |
| 2019 | Honda | Ridgeline | FWD | Rear Left | — |
| 2018 | Honda | Pilot | FWD | Rear Left | — |
| 2018 | Honda | Ridgeline | FWD | Rear Left | — |
| 2017 | Honda | Pilot | FWD | Rear Left | — |
| 2017 | Honda | Ridgeline | FWD | Rear Left | — |
| 2016 | Acura | MDX | FWD | Rear Left | — |
| 2016 | Honda | Pilot | FWD | Rear Left | — |
| 2015 | Acura | MDX | FWD | Rear Left | — |
| 2014 | Acura | MDX | FWD | Rear Left | — |
| No rows match your filter. | |||||
