Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

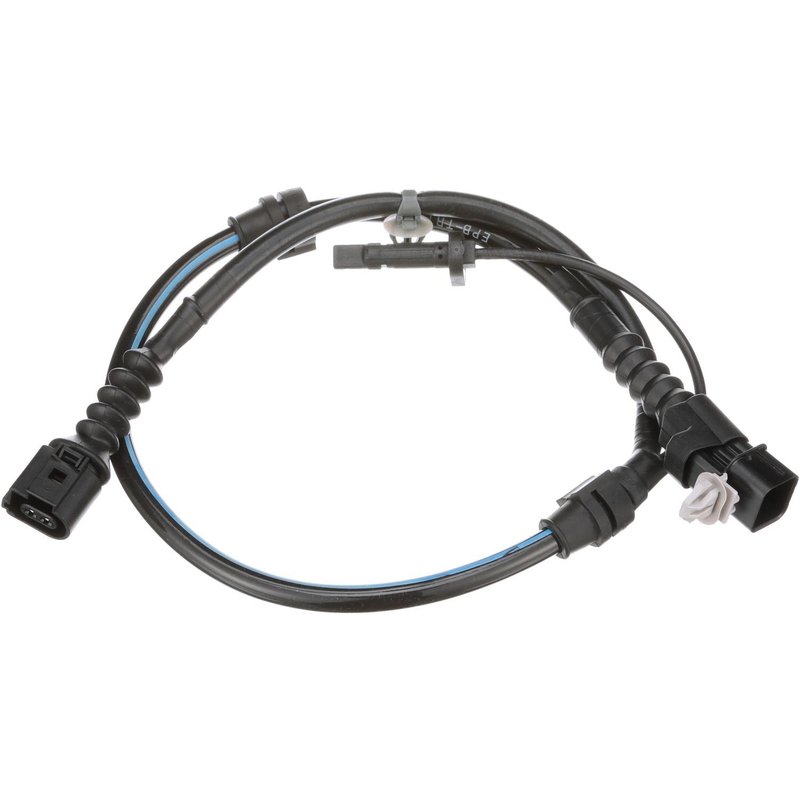

Standard Ignition ALS3280 ABS Wheel Speed Sensor - Rear Left
| Brand | Standard Ignition ALS3280 |
|---|---|
| Position | Rear Left |
| Mounting Hardware Included | No |
| Terminal Quantity | 6 |
| Connector Gender | Female |
| Terminal Gender | Male female |
| Attachment Method | Direct, snap fit |
| Color/Finish | Black |
| Connector Quantity | 2 |
| Connector Shape | Oval, rectangle |
| Dust Shield Included | No |
| Hardware Included | No |
| Harness Length - inches | 34 |
| Mounting Bracket(s) Included | No |
| Mounting Hole Quantity | 1 |
| Mounting Location | Spindle |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 1 |
| Terminal Type | Blade |
| Wiring Harness Included | Yes |
| Fits | Honda · 5 vehicles |
Direct, snap-fit design. Simplifies installation with a secure bolt-mount attachment.
Wiring harness included. Ready for a cleaner, more complete sensor replacement.
Black finish. Offers a clean, low-profile look on the part.
Cross-references Standard Ignition ALS3280, 47560TRTA01 and 533651 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
ABS Wheel Speed Sensor for Honda Clarity
Standard Ignition ALS3280 is an ABS wheel speed sensor built for the rear left position on select 2017-2021 Honda Clarity models. It uses a direct, snap-fit attachment method with a bolt-mount spindle location and includes a wiring harness for a clean OE-style replacement.
Key Features
- Fits 2017-2021 Honda Clarity, rear left
- ABS wheel speed sensor for brake and stability system input
- Direct, snap-fit attachment with bolt-mount spindle installation
- Two connectors with oval and rectangle connector shapes
- 34-inch harness length for routing to the factory connection point
- Black finish with 6 terminals and blade terminal type
- Standard Ignition ALS3280 replacement part number
Detailed Description
Standard Ignition ALS3280 is an ABS wheel speed sensor designed for the rear left wheel position on 2017-2021 Honda Clarity vehicles. It monitors wheel speed data used by the anti-lock brake system and related chassis controls, helping the vehicle’s control modules interpret wheel rotation accurately. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. If you are searching for a rear left Honda Clarity ABS sensor replacement, ALS3280 provides the correct mounting style, connector layout, and harness length for the listed application.
What It Helps Address
- ABS warning light triggered by a faulty rear wheel speed sensor
- Erratic wheel speed signal readings at the rear left position
- Brake control system faults related to sensor signal loss
- Traction control or stability control issues caused by incorrect wheel data
- Intermittent electrical connection at the wheel-end sensor harness
Installation Notes and Tips
Install ALS3280 at the spindle using the bolt-mount location specified for the rear left side. Verify connector shape, terminal count, and harness routing before installation to match the factory layout on the Honda Clarity. Inspect the tone ring, wiring path, and connector terminals for damage or corrosion before replacing the sensor.
Quality Assurance
Standard Ignition supplies replacement electrical and sensor components for OE-style service applications. ALS3280 is built to match the listed fitment and connection requirements for 2017-2021 Honda Clarity rear left ABS sensor service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Honda | Clarity | Rear Left | — |
| 2020 | Honda | Clarity | Rear Left | — |
| 2019 | Honda | Clarity | Rear Left | — |
| 2018 | Honda | Clarity | Rear Left | — |
| 2017 | Honda | Clarity | Rear Left | — |
